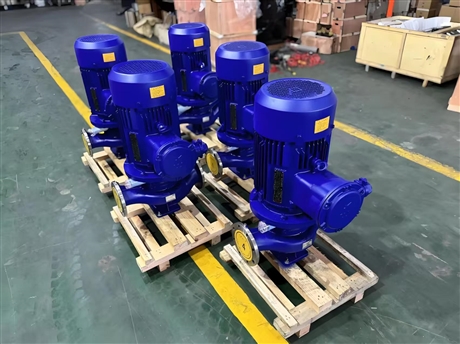

ISG type vertical wear-resistant and corrosion-resistant pipeline pump

Description :

The ISG vertical pipeline pump is a novel pump developed for pipeline pressure boosting and transportation, which solves the problem of low pipeline pressure. It has great versatility compared to the current application of horizontal centrifugal pumps. Due to the use of mechanical seals, the motor spindle is directly installed with an impeller, which has the characteristics of high efficiency, low power consumption, compact structure, small size, light weight, and convenient decoration. It can also be used in series according to the needs of head and flow rate. Performance characteristics of ISG type vertical wear-resistant and corrosion-resistant pipeline pump supply: 1. ISG type vertical pipeline pump is a vertical structure with the same inlet and outlet diameters, and they are installed in the pipeline like valves on the same centerline. It has a compact and beautiful appearance, small footprint, and low construction investment. If a protective cover is added, it can be used outdoors. 2. The impeller is directly installed on the extended shaft of the motor, with a short axial size and compact structure. The pump and motor bearings are reasonably configured, which can effectively balance the radial and axial loads generated by the pump operation, thereby ensuring that the pump's operation balance, vibration and noise are very low. 3. The shaft seal adopts mechanical seal or a combination of mechanical seals, using imported titanium alloy sealing rings, medium-sized high-temperature resistant mechanical seals, and hard alloy materials for wear-resistant seals, which can effectively increase the service life of mechanical seals. 4. Easy installation and maintenance, no need to disassemble the piping system, just remove the pump coupling nut to extract all rotor components. 5. Pumps can be operated in series or parallel according to the requirements of flow rate and head. 6. Vertical and horizontal installation of pumps can be adopted according to the requirements of pipeline layout. Supply ISG type vertical wear-resistant and corrosion-resistant pipeline pump technical parameters. ISG type vertical pipeline pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressure boosting, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water circulation boosting and equipment matching. The operating temperature is T ＜ 80 ℃. Instructions for using ISG type vertical wear-resistant and corrosion-resistant pipeline pump for housing heating circulation. The operating temperature is below 120 ℃, and the suction pressure is ≤ 1.0Mpa, or the high working pressure of the pump system is ≤ 1.6Mpa, that is, the pump suction inlet pressure+pump head is ≤ 1.6Mpa, and the pump static pressure test pressure is 2.5Mpa. Please specify the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6Mpa, it should be separately stated when ordering. In order to use cast steel materials for the overcurrent components and connecting parts of the pump during manufacturing.
