Intelligent lithium battery charging safety cabinet LSFBC-3 1700mm high double door four layer aerosol fire extinguishing and explosion-proof storage cabinet

Description :

　　The intelligent lithium battery charging safety cabinet is a centralized charging and explosion-proof storage integrated device designed specifically for lithium battery packs, electric tool batteries, and energy storage equipment. It mainly solves the fire risk caused by thermal runaway during the charging process of lithium batteries, as well as the safety hazards in daily storage. This device provides all-weather safety protection for high-risk batteries through physical isolation, active temperature control, and automatic fire extinguishing system. Typical working conditions are suitable for places such as factory workshops, logistics warehouses, laboratories, and electric vehicle swapping stations that require batch management of lithium batteries, ensuring the safety of unmanned charging processes and meeting the compliance requirements of modern industry for hazardous chemicals and high-energy battery management.

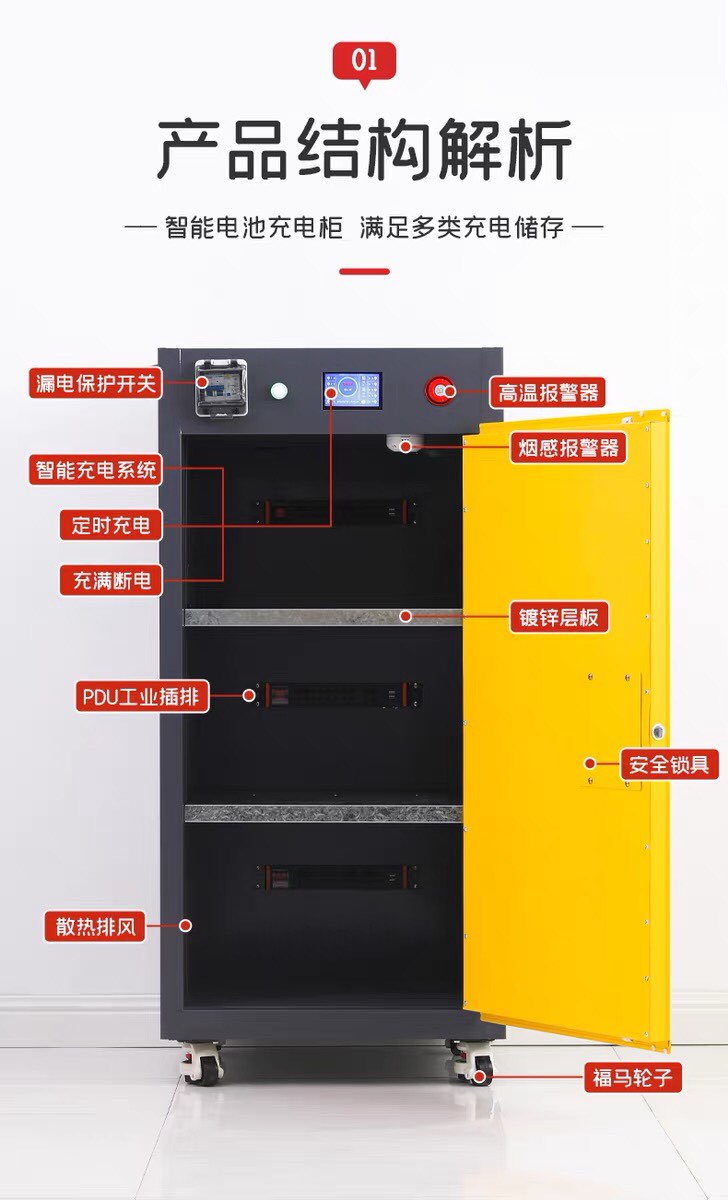

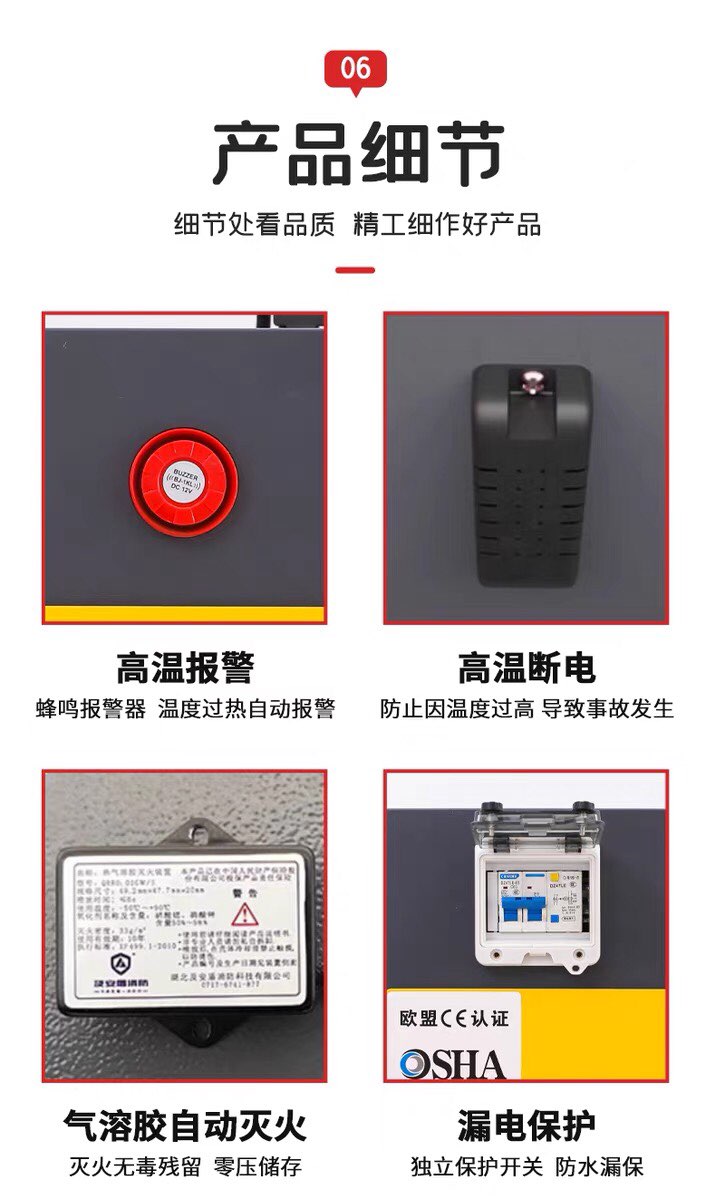

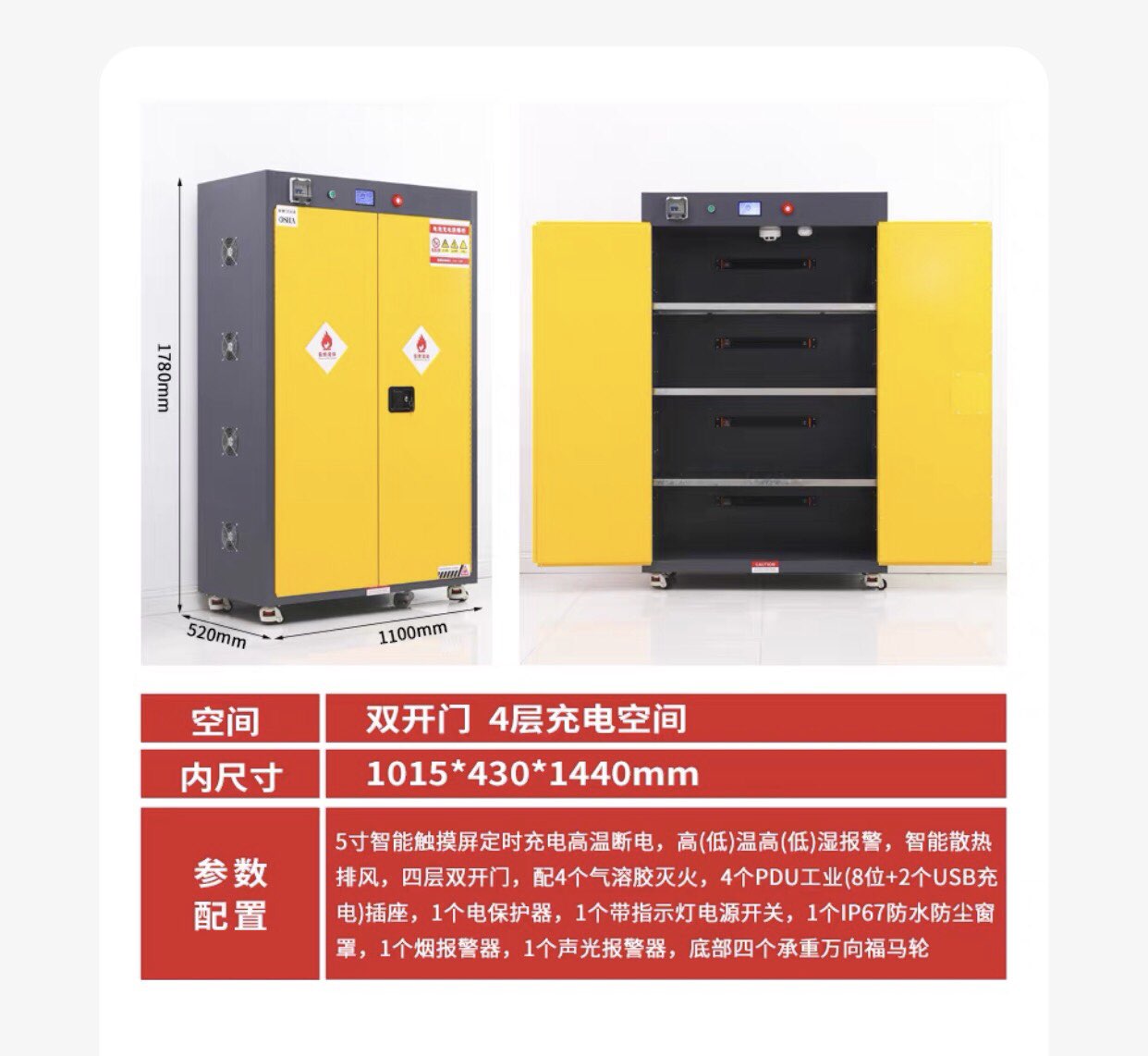

　　Intelligent lithium battery chargingThe electrical safety cabinet LSFBC-3 is made of high-strength cold-rolled steel plate, and the outer surface is treated with acid pickling, phosphating, and electrostatic spraying, which has excellent anti-corrosion and rust prevention properties. The external dimensions of the cabinet are 1700mm × 1100mm × 520mm, and the effective internal space is 1015mm × 430mm × 1440mm. It provides a four story double door structure to maximize storage space utilization. The cabinet door is equipped with an IP67 waterproof and dustproof observation window, which facilitates real-time monitoring of the internal status. The implementation standard refers to GB/T 33950-2017 "Safety Requirements for Power Batteries for Electric Vehicles" and relevant fire safety regulations, equipped with sound and light alarm systems and smoke detectors to ensure that abnormalities can be detected and dealt with in the early stages. The overall structural design focuses on the balance between sealing and heat dissipation.

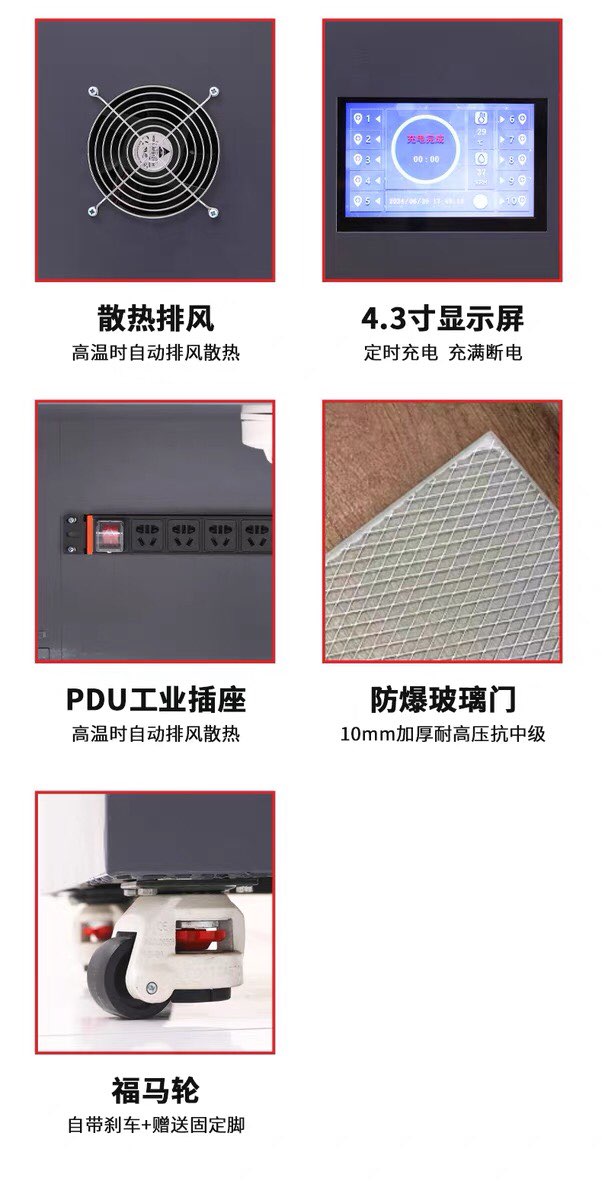

　　Choosing intelligent lithiumWhen charging a battery safety cabinet, it is important to pay close attention to the compatibility between the charging interface type and the battery size. This LSFBC-3 model is suitable for centralized management of medium to large lithium battery packs or industrial grade power tool batteries. If your battery size is small and the quantity is large, you may need to choose a dense rack cabinet with more layers; If it involves ultra large capacity energy storage batteries, it is necessary to confirm whether the single-layer load-bearing capacity meets the requirements (the bottom of this cabinet is equipped with a load-bearing universal Fuma wheel, which is easy to move, but the static load-bearing capacity needs to be verified). Compared with ordinary metal cabinets, the core difference of this product is the integration of PDU industrial sockets, USB charging ports, and active fire extinguishing systems. It is not only a storage container, but also an intelligent terminal with independent power supply and safety monitoring functions, suitable for procurement scenarios with clear requirements for safety levels.

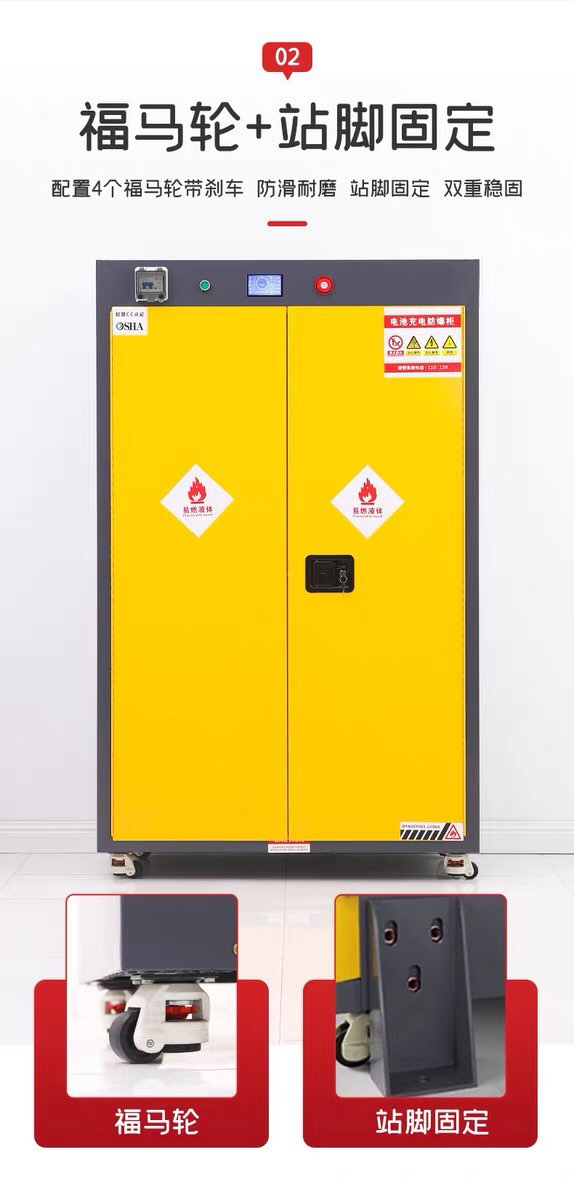

　　When installing a smart lithium battery charging safety cabinetIt should be placed on a flat ground, and the bottom Fuma wheel foot cup should be adjusted to ensure that the cabinet is level and stable, and to avoid vibration affecting the internal electrical connections. It is recommended to regularly check whether the pressure gauge reading of the aerosol fire extinguishing device is within the normal green range, clean the dust on the air inlet and cooling fan to prevent a decrease in heat dissipation efficiency and an increase in temperature inside the cabinet. It is strictly prohibited to stack flammable debris inside the cabinet during use, and ensure good contact between the battery plug and the PDU socket. Common faults such as unresponsive touch screen, usually check the status of power switch and leakage protector; If a high temperature alarm occurs, the charging should be stopped immediately and the cabinet door should be opened for ventilation. Check whether the battery cells have bulges or damage, and promptly eliminate hidden dangers.
