60 gallon dual door lithium battery charging safety cabinet with smoke detection, high temperature, power outage, automatic fire extinguishing and ventilation

Description :

　　The 60 gallon lithium battery charging safety cabinet is an integrated equipment designed for storing and charging hazardous chemicals in laboratories, workshops, and storage environments. Its core solution is to address safety hazards such as thermal runaway, fire and explosion that may occur during the charging process of lithium batteries. The 60 gallon lithium battery charging safety cabinet integrates smoke detection, high temperature warning, automatic power-off, and exhaust system to build multiple protective barriers. It is suitable for new energy battery testing, electronic equipment assembly lines, and hazardous material storage areas in typical working conditions, ensuring intrinsic safety during unmanned or nighttime charging.

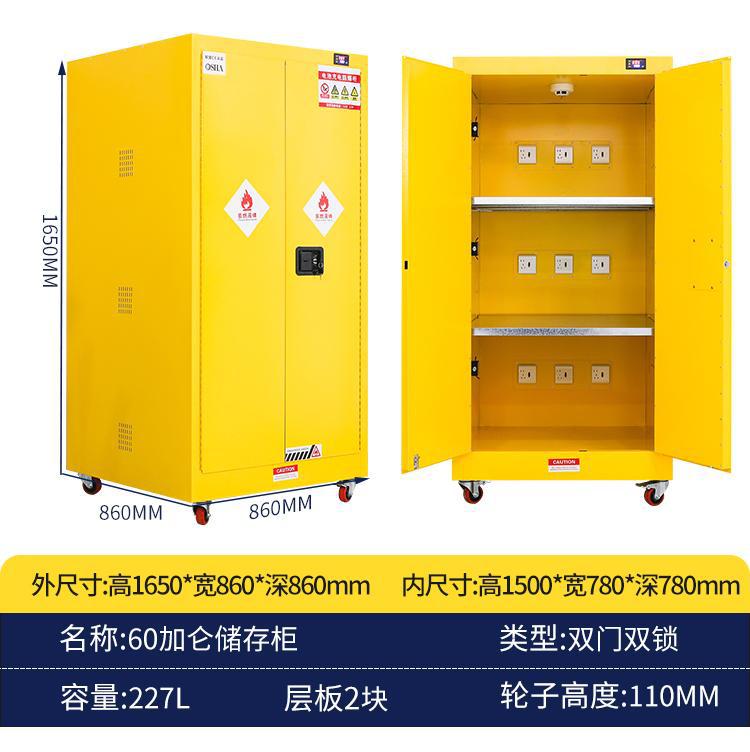

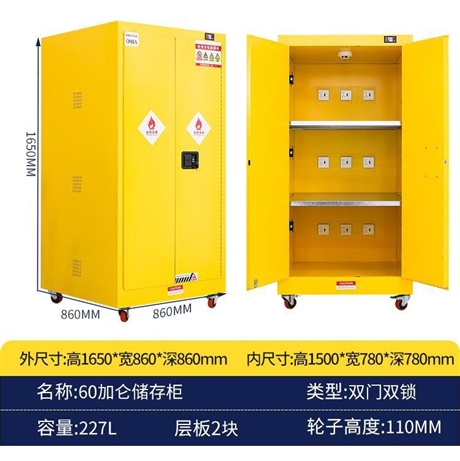

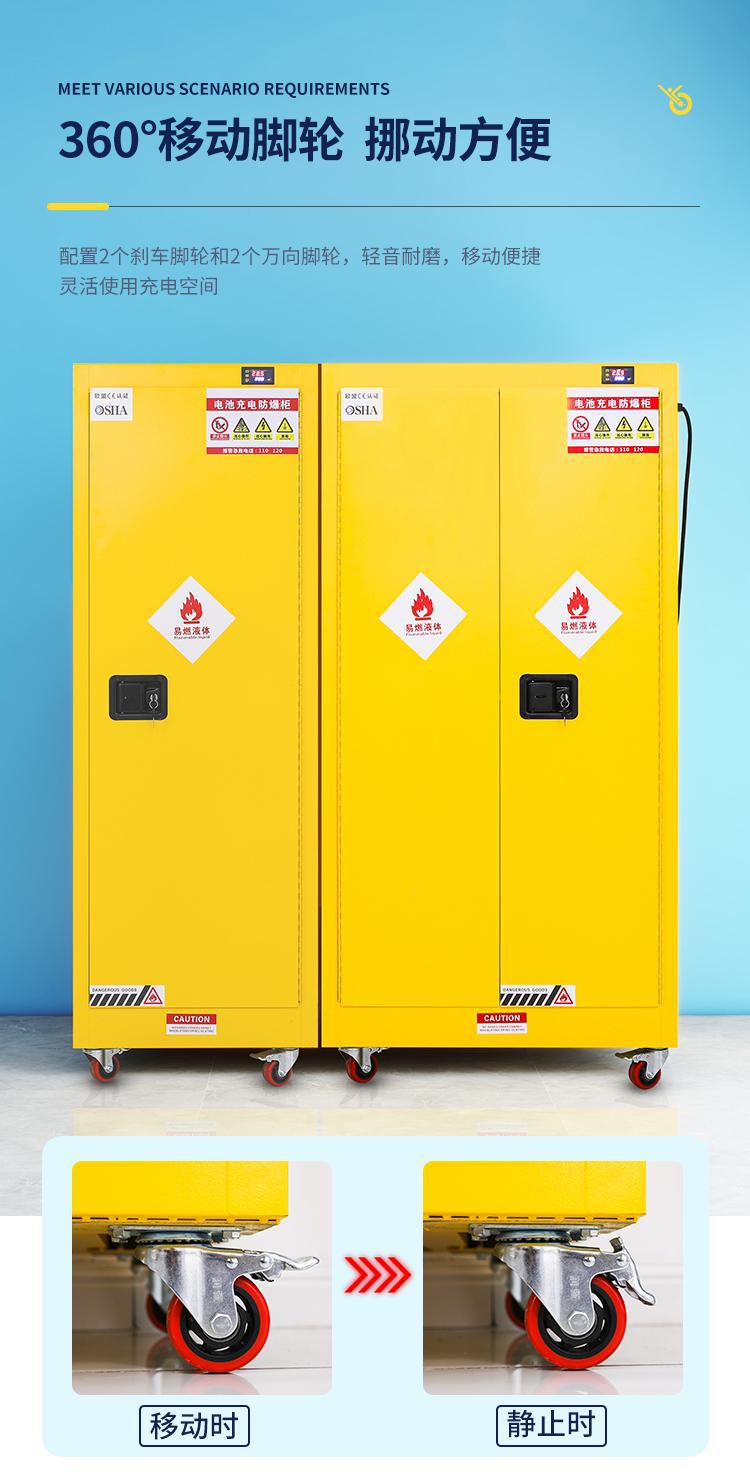

　　The external dimensions of this 60 gallon lithium battery charging safety cabinet are 1650mm in height, 860mm in width, and 860mm in depth. The internal dimensions are 1500mm in height, 780mm in width, and 780mm in depth, providing an effective storage capacity of 227L. The cabinet is made of thickened cold-rolled steel plate, and the surface is treated with acid pickling, phosphating, and epoxy resin powder spraying, which has excellent anti-corrosion and anti rust properties. Internally equipped with 2 adjustable shelves to meet the storage needs of multiple specifications of batteries; Install 4 load-bearing universal wheels (height 110mm) at the bottom, 2 of which have brakes for flexible movement and fixation. The electrical system complies with industrial standards and has built-in leakage protection sockets to ensure electrical safety.

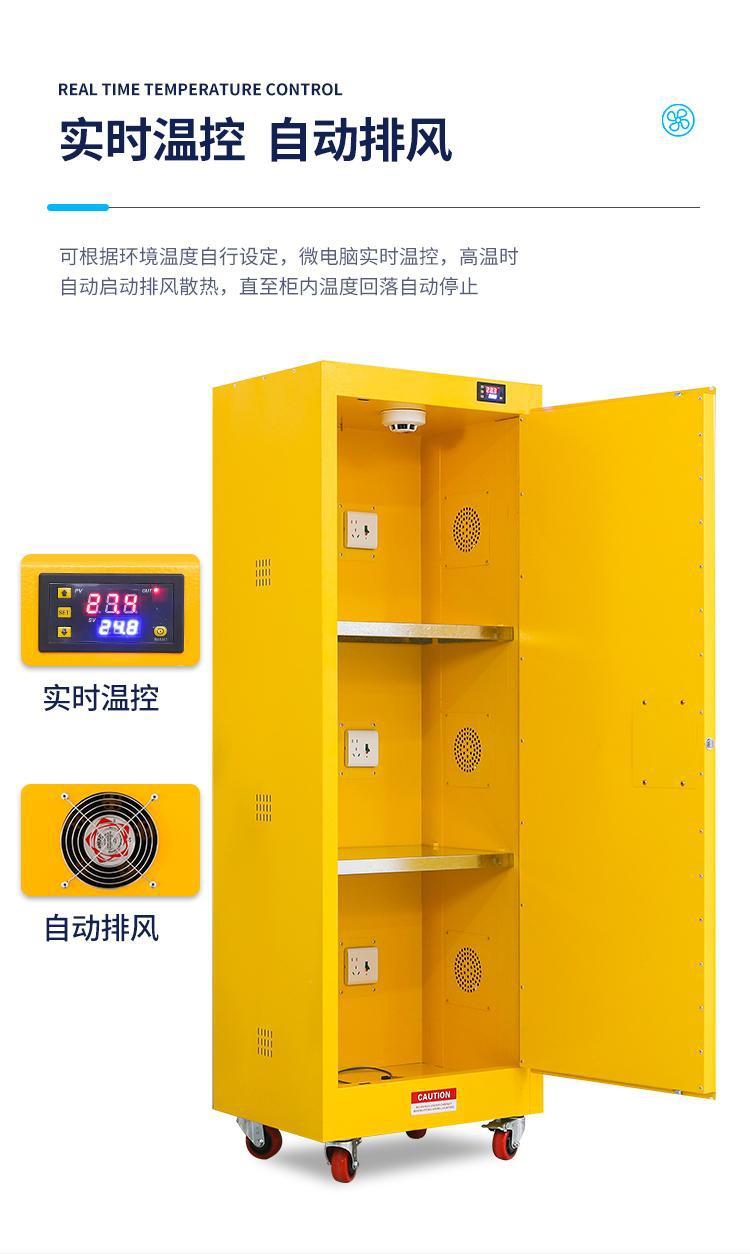

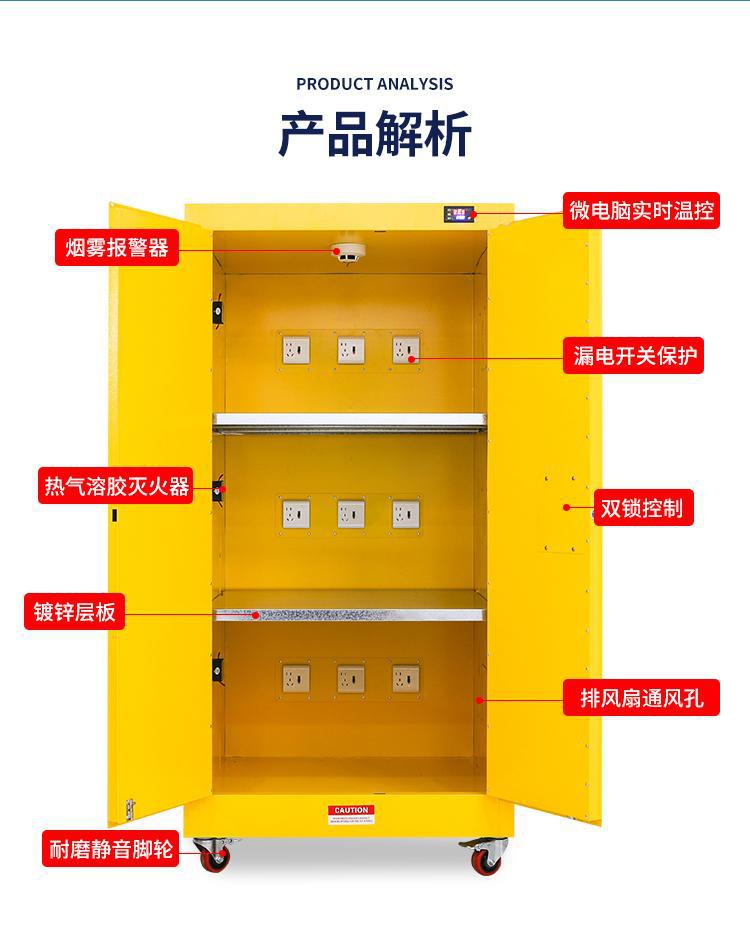

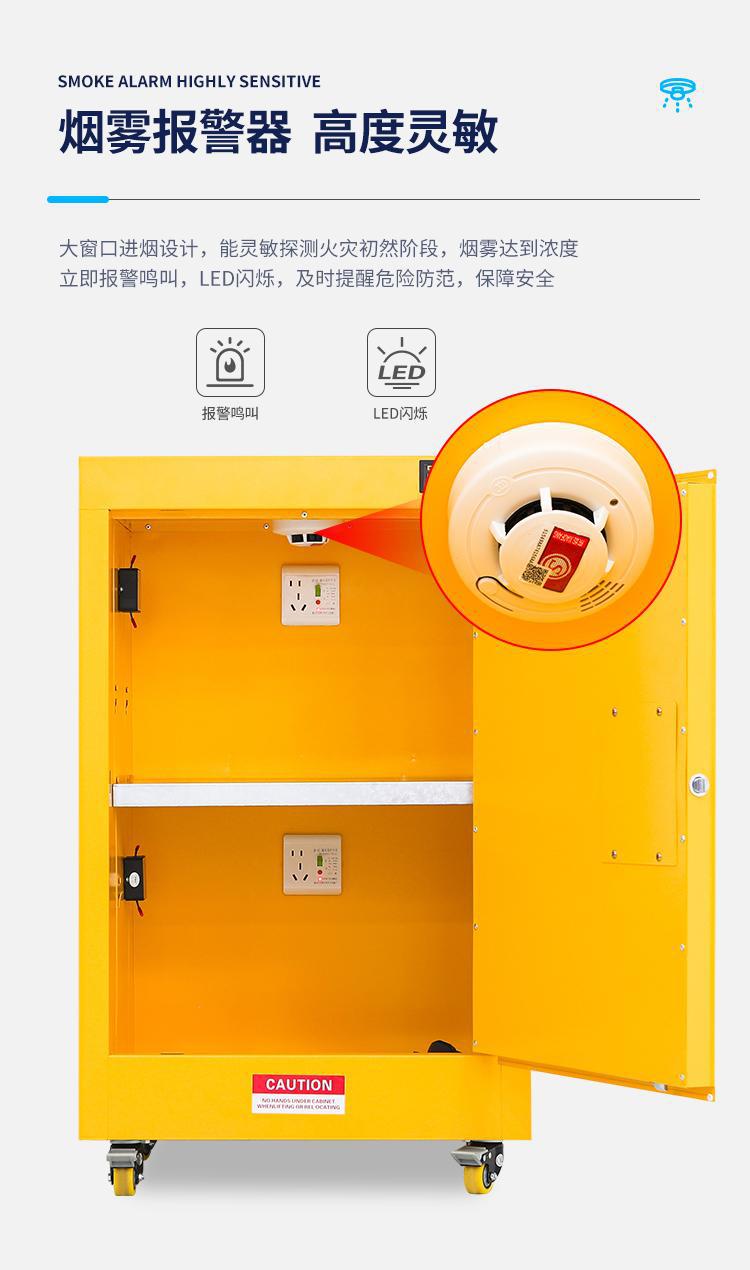

　　When selecting a 60 gallon lithium battery charging safety cabinet, special attention should be paid to its active safety protection function. This product is different from ordinary flammable liquid cabinets. It is equipped with a smoke alarm system and a high temperature sensing device. Once abnormal smoke or temperature exceeds the standard, it will immediately trigger an audible and visual alarm and cut off the power supply. At the same time, the exhaust system will be activated to discharge harmful gases outdoors, preventing accumulation and explosion. The double door and double lock design complies with OSHA and NFPA regulations, meeting the requirements of dual person management and preventing unauthorized personnel from operating it incorrectly. Not suitable for long-term storage of highly corrosive chemicals. If storing acidic and alkaline items, it is recommended to use PP material special cabinets.

　　When installing a 60 gallon lithium battery charging safety cabinet, it should be placed on a well ventilated floor away from heat sources and open flames, ensuring that the exhaust duct connection is smooth and leak free. In daily use, it is necessary to regularly check the sensitivity of the smoke detector probe, the operation status of the exhaust fan, and the effectiveness of the leakage protection switch. It is recommended to conduct a functional test once a month. The load-bearing capacity of the laminated board should be evenly distributed to avoid deformation caused by single point overload. Common faults such as false alarms are often caused by dust accumulation or sensor moisture. Compressed air can be used to clean the probe or check the grounding condition of the circuit. It is recommended to lubricate and maintain the cabinet hinges and locks every six months to extend their service life.
