110 gallon double door double lock yellow fireproof and explosion-proof cabinet made of steel with anti-static and ventilation holes, equipped with 2 layers of board

Description :

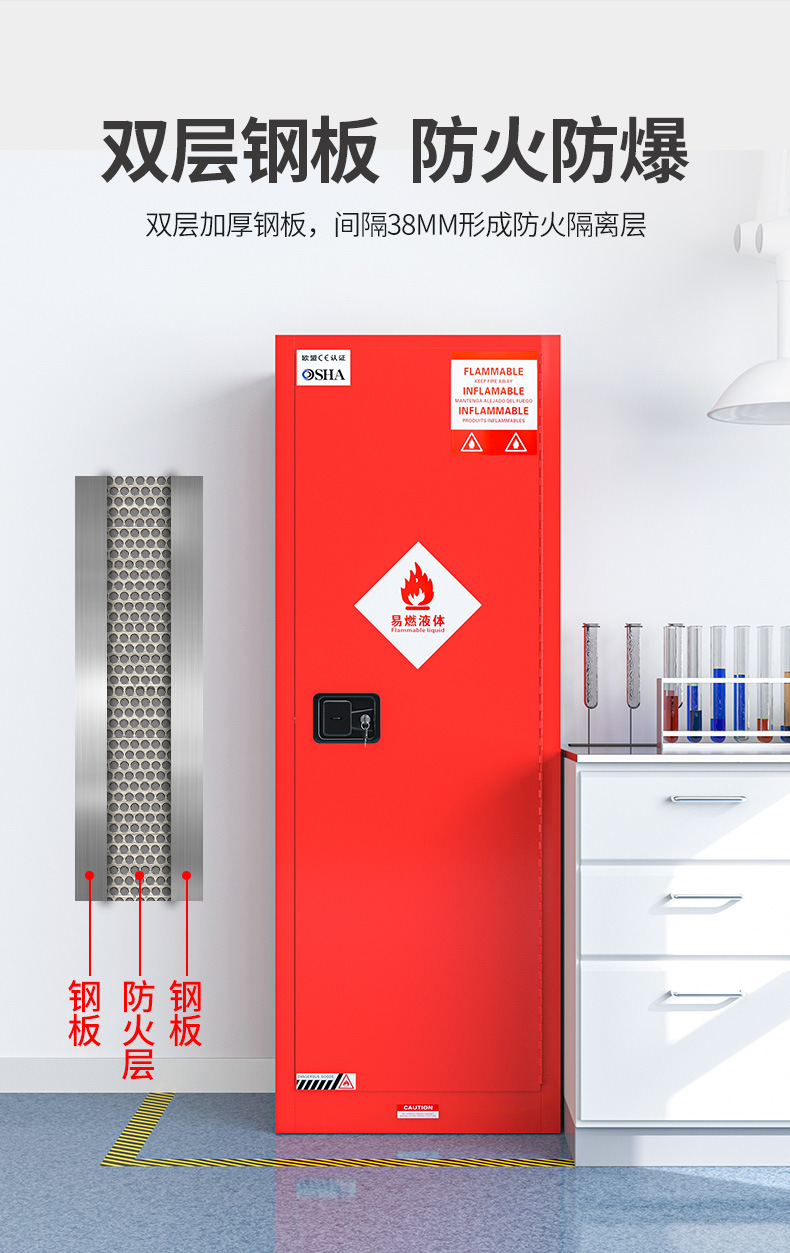

　　The 110 gallon fireproof and explosion-proof safety cabinet is a large capacity storage equipment designed specifically for laboratories, factory workshops, and hazardous chemical warehouses, with the core solution to the safety and compliance issues of centralized storage of flammable and explosive chemicals. The typical working conditions of this category include the daily temporary storage and long-term storage of flammable liquids such as paint thinner, alcohol, acetone, etc. Through a double-layer steel plate structure and a special insulation filling layer, the temperature rise inside the cabinet is effectively delayed in the early stages of a fire, saving valuable time for personnel evacuation and fire rescue, and meeting the basic protection requirements of OSHA and NFPA 30 for flammable liquid storage containers.

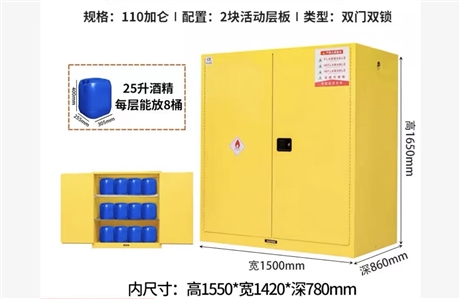

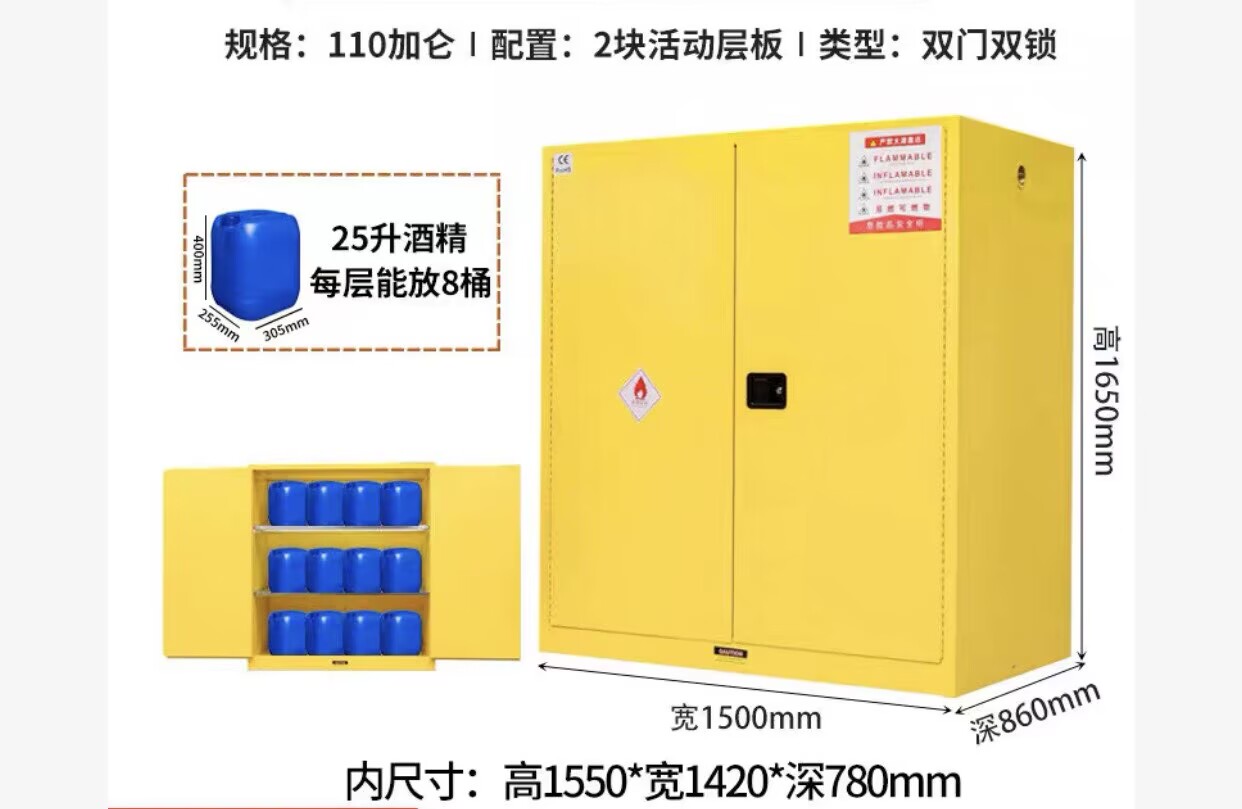

　　In terms of specifications, this 110 gallon fireproof and explosion-proof safety cabinet has external dimensions of 1650mm in height, 1500mm in width, and 860mm in depth, and internal dimensions of 1550mm in height, 1420mm in width, and 780mm in depth. It is made of high-quality cold-rolled steel plates that are seamlessly welded together by spot welding, and the surface is treated with epoxy resin powder coating, which has corrosion resistance and impact resistance characteristics. The cabinet is equipped with 2 adjustable movable shelves, and the single-layer shelves can meet the storage needs of placing 8 barrels of 25 liter standard alcohol barrels (approximately Φ 305mm × H400mm in size) on each floor with evenly distributed load-bearing capacity. The spacing between shelves can be freely adjusted according to the height of the container; The door leaf adopts a double door and double lock design, equipped with a three-point linkage lock to ensure tight closure; A 2-inch diameter ventilation hole is preset at the top, which can be connected to an external exhaust system to export harmful gases. The bottom is equipped with a 50mm high leak proof liquid tank to prevent accidental leakage and diffusion.

　　When selecting, it is necessary to clarify the applicable scenarios: suitable for storing Class A and Class B flammable liquids with a flash point below 37.8 ℃, not suitable for separate storage of strong oxidants, highly corrosive or self igniting materials. If the purchaser needs to store small bottles of reagents, it is recommended to use a dedicated tray to prevent tipping over; If there is a large amount of solvent turnover in barrels on site, this 110 gallon high-capacity model has a space utilization advantage over 45 gallon or 30 gallon cabinets. Pay attention to distinguishing between the concepts of "fireproof cabinet" and "explosion-proof electrical cabinet". The former focuses on physical isolation of fire sources, while the latter focuses on electrical spark protection. This category belongs to the former and cannot replace the use of explosion-proof electrical equipment.

　　Installation and maintenance points: The 110 gallon fireproof and explosion-proof safety cabinet should be placed on a flat ground, away from heat sources, direct sunlight, and humid areas. The back should be at least 10cm away from the wall to ensure ventilation and heat dissipation; Before the first use, it is necessary to check whether the door lock linkage mechanism is smooth and whether the plate buckle is firmly embedded in the column slot; Regular cleaning of accumulated liquid in the cabinet is required for daily maintenance, and the ventilation holes should be checked for blockage. If the door seal is found to be aged or deformed, it should be replaced in a timely manner to maintain airtightness; Common faults such as door lock jamming are often caused by dust accumulation or insufficient lubrication. The lock core can be wiped with a dry cloth and lubricated with a small amount of graphite powder. It is strictly prohibited to use oily lubricants to avoid absorbing dust and exacerbating wear.
