870L all steel electronic moisture-proof cabinet, intelligent dehumidification and silent laboratory instrument storage cabinet

Description :

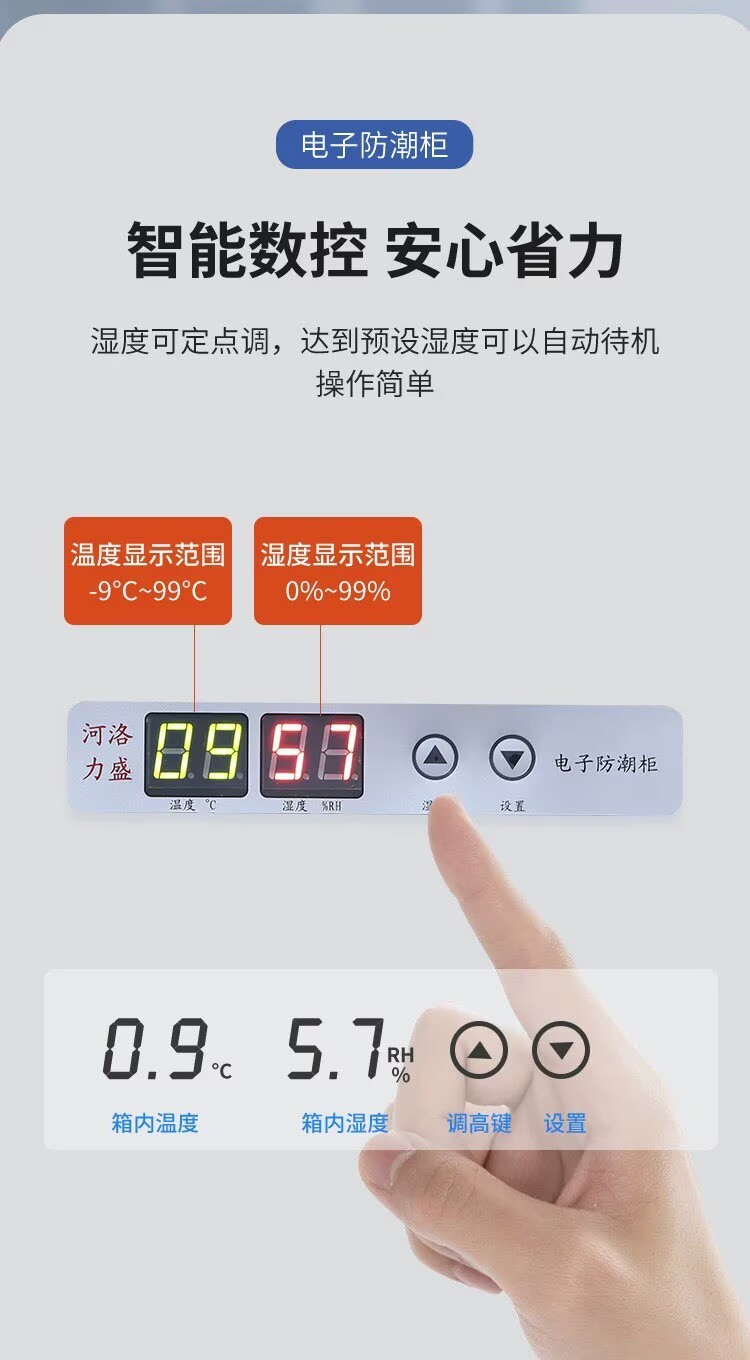

　　This is a fully steel electronic moisture-proof cabinet designed specifically for precision instruments, electronic components, and optical lenses, which solves the problems of equipment oxidation, mold growth, and performance failure caused by high humidity environments. Through the built-in intelligent humidity control system, the relative humidity inside the cabinet is constantly controlled within a low humidity range (usually adjustable from 1% to 60% RH). Typical operating conditions are suitable for SMT workshops, laboratories, photography equipment rooms, and semiconductor packaging testing lines. The large capacity design of 870L, combined with a four door structure, can accommodate a large number of small and medium-sized instruments and equipment, ensuring the physical and chemical stability of valuable assets during storage. It is an ideal choice to replace traditional drying oven upgrade management.

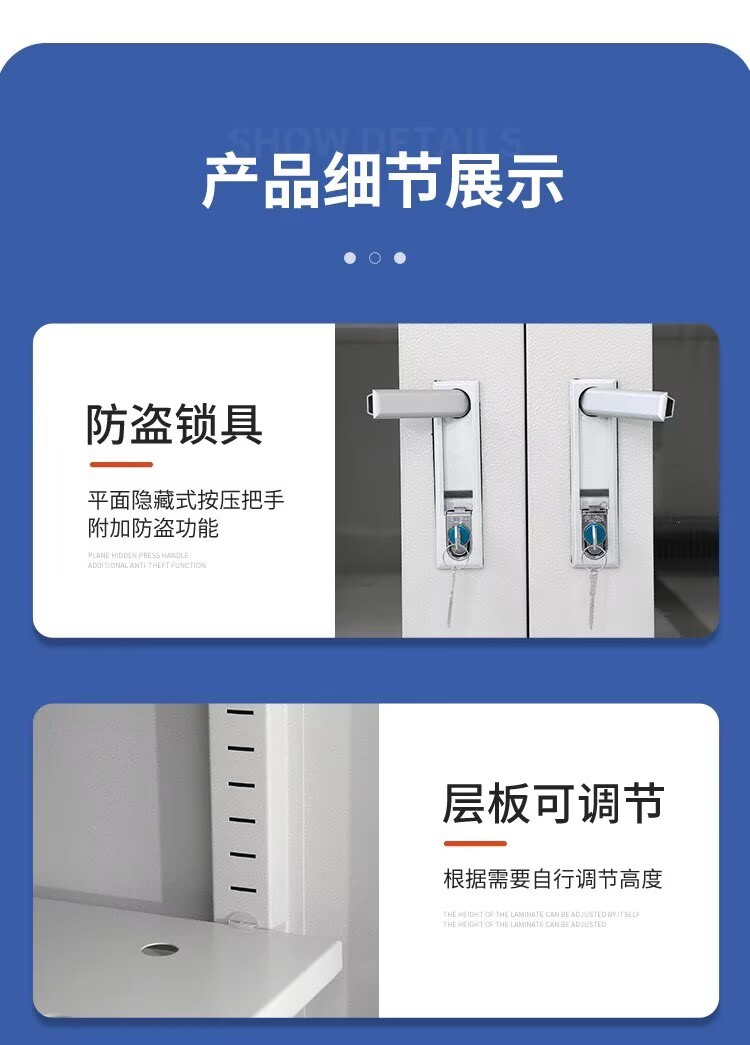

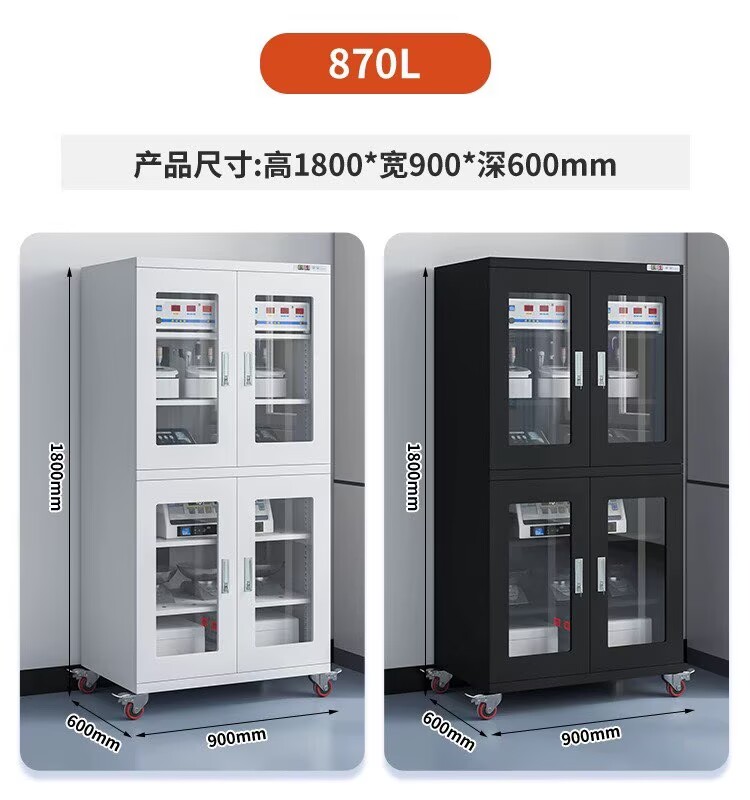

　　The electronic moisture-proof cabinet is made of high-quality cold-rolled steel plates that are bent and welded by CNC, and the surface is treated with electrostatic spraying, which has excellent anti-corrosion and wear-resistant properties. The external dimensions of the product are 1800mm high, 900mm wide, and 600mm deep. The internal space layout is reasonable, and the shelves can be freely adjusted according to the height of the stored items. The door is equipped with high-strength tempered glass windows, making it easy to visually inspect the status of internal items without opening the cabinet door, while reducing moisture intrusion. Four universal casters are installed at the bottom, two of which have braking function, making it easy to move and position while ensuring stability when stationary. The execution standards comply with industrial grade anti-static and moisture-proof specifications, and the sealing strip is made of anti-aging silicone material to ensure long-term sealing.

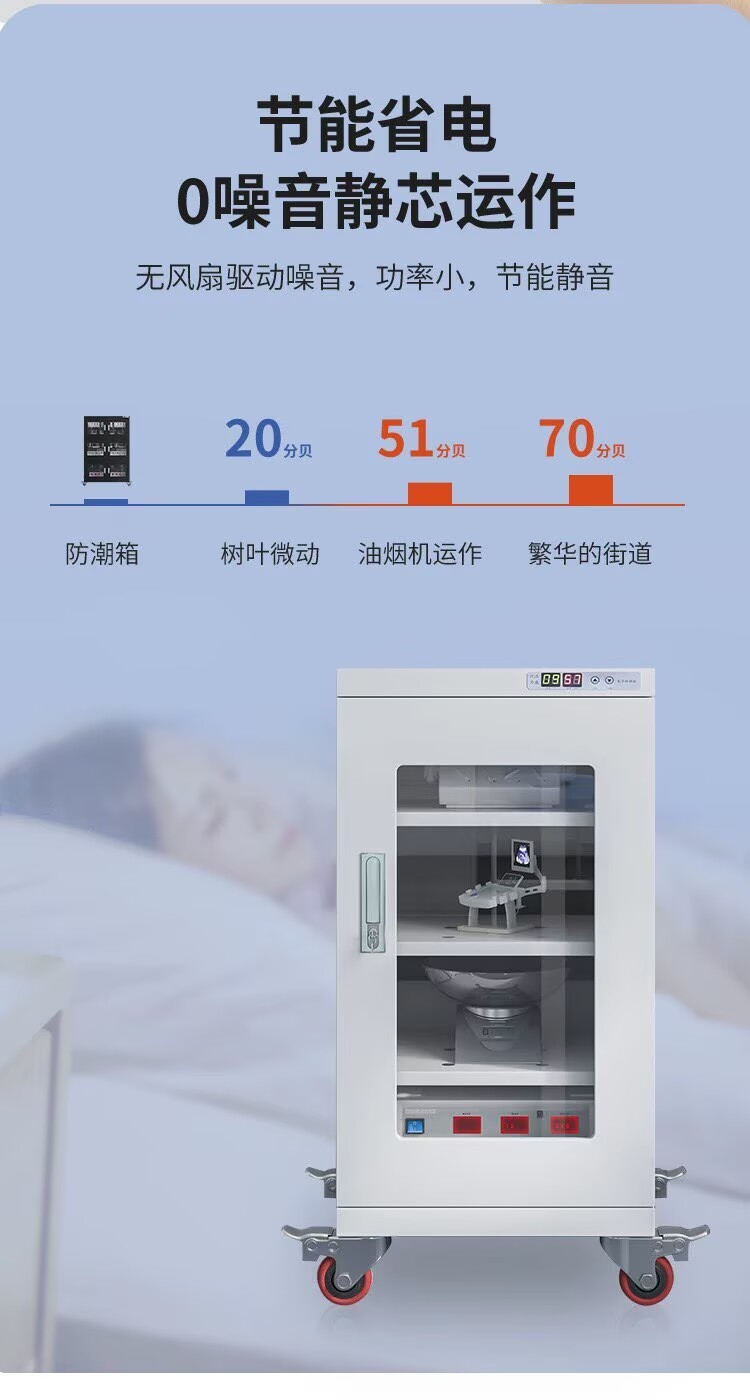

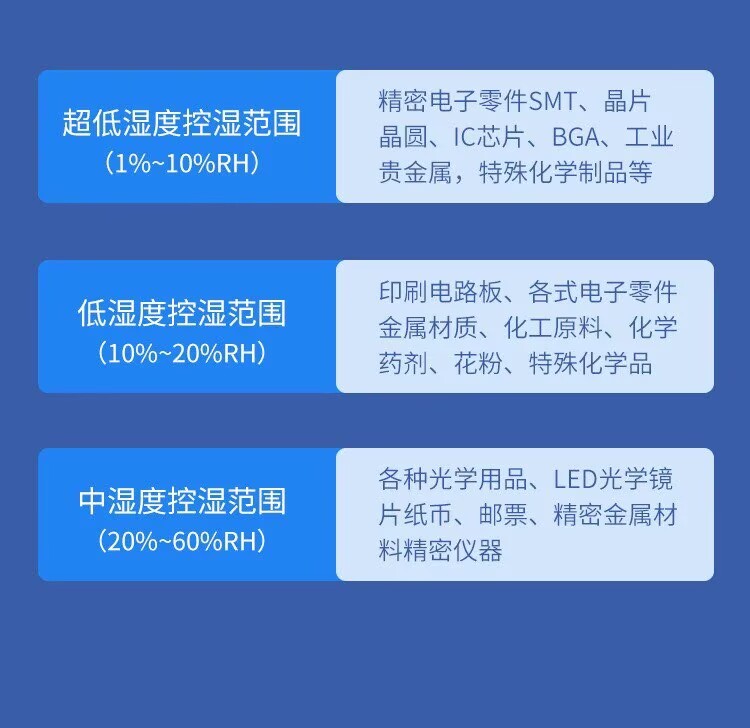

　　When selecting, it is necessary to specify the moisture sensitivity level of the stored items. If storing IC chips, PCB circuit boards, or high-precision optical lenses, it is recommended to choose models with ultra-low humidity control capability (<10% RH); If it is only for general hardware or ordinary document moisture-proof, conventional medium low humidity models can meet the requirements. Compared with a simple desiccant storage box, the advantage of this electronic moisture-proof cabinet is that it does not require frequent replacement of consumables, can automatically circulate and remove moisture when powered on, and has extremely low operating noise, making it suitable for office or experimental areas with requirements for sound environment. Not applicable scenarios include storage of highly corrosive chemicals (requiring dedicated anti-corrosion cabinets) or storage of flammable and explosive hazardous materials. When purchasing, the position of the on-site power interface and the width of the transportation channel should be confirmed to ensure that the cabinet with a width of 900mm can be smoothly accessed.

　　During installation, the cabinet should be placed on a level ground, and the foot cups should be adjusted or the casters locked to prevent tilting. It is recommended to run without load for 2-4 hours before initial use, and wait for the humidity to drop to the set value before placing the item. The focus of daily maintenance is to keep the door seal clean and free of foreign objects, regularly wipe the glass window and shell with a soft cloth, and avoid using corrosive cleaning agents. Common faults such as abnormal humidity display are often caused by sensor dust accumulation or moisture. Dry air can be used to blow the sensor probe; If the working sound of the compressor or dehumidification module is abnormal, the power should be immediately cut off and professional personnel should be contacted for maintenance. A reasonable usage cycle can reach 8-10 years, and regular calibration of the humidity sensor can extend its precise control life, ensuring that the all steel electronic moisture-proof cabinet is always in the best working condition.
