90 gallon double door red explosion-proof cabinet 350L hazardous chemical storage cabinet with ventilation port

Description :

　　This is a 90 gallon fire-resistant and explosion-proof safety cabinet designed specifically for laboratory and industrial environments, mainly used for storing hazardous chemicals such as flammable and combustible liquids. This explosion-proof cabinet adopts a striking red appearance, equipped with a double door structure, and has two layers of partitions inside, with an effective capacity of 350 liters (about 90 gallons), meeting the centralized storage needs of a large number of hazardous chemicals, solving the problems of disorderly chemical storage and high safety hazards, and suitable for typical working conditions such as chemical, pharmaceutical, and scientific research.

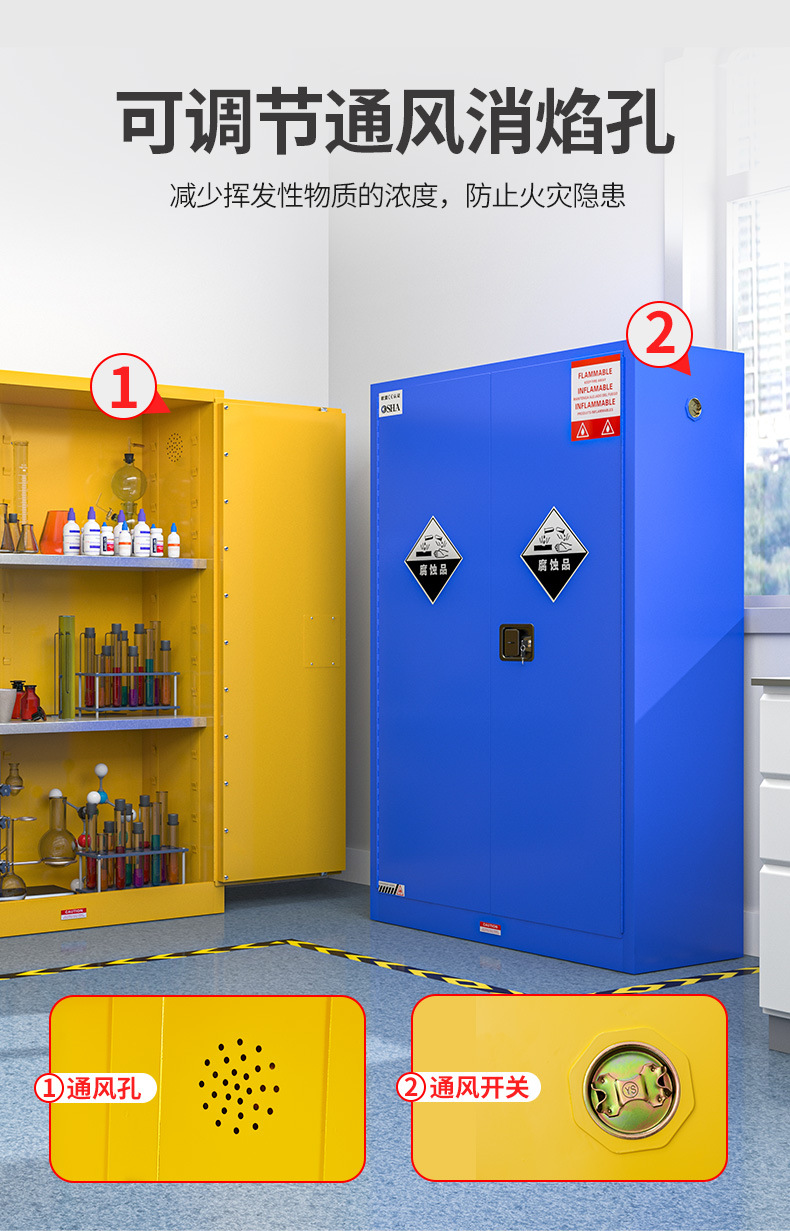

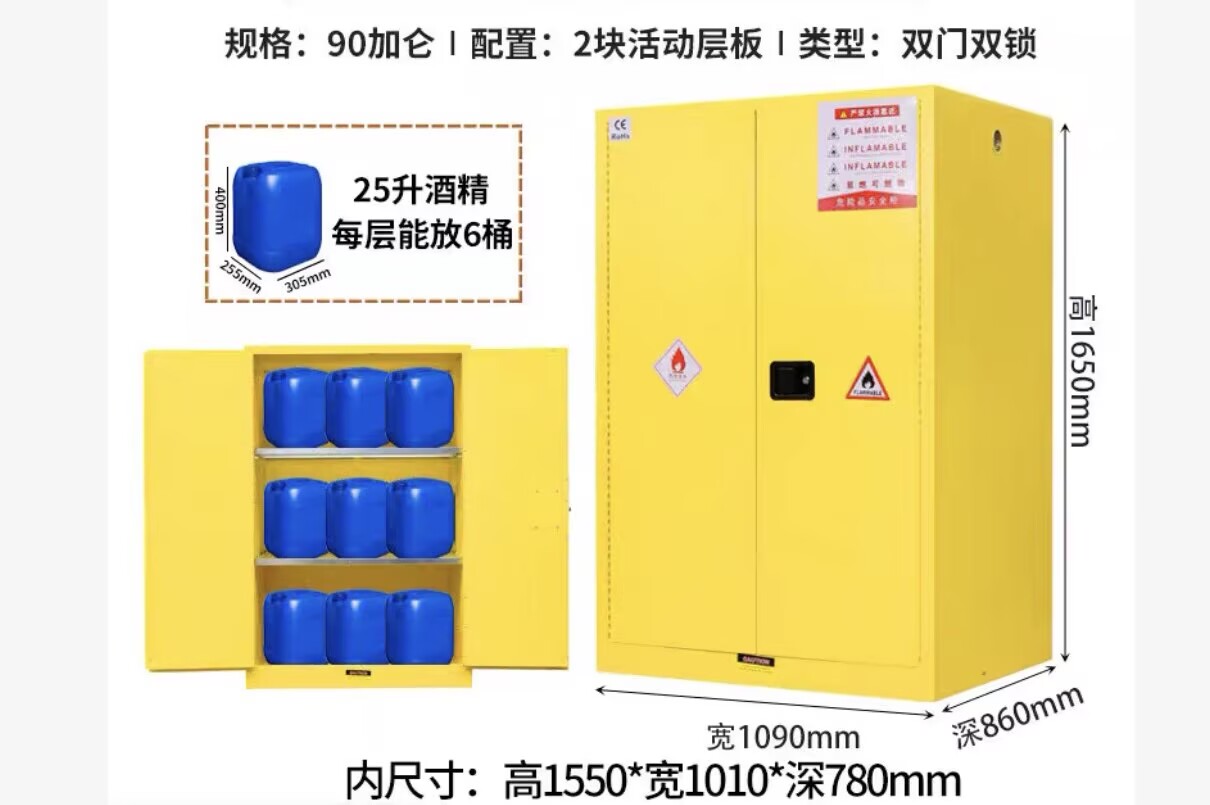

　　The overall dimensions of the explosion-proof cabinet are 1650mm high, 1090mm wide, and 860mm deep. The cabinet body adopts a double-layer cold-rolled steel plate structure, with fireproof and heat-insulating materials filled in the middle, and has excellent fire resistance performance. The cabinet door is equipped with a three-point linkage lock to achieve dual lock management and enhance security; The top is equipped with anti-static ventilation openings that can be connected to exhaust systems to prevent the accumulation of volatile gases. The cabinet is labeled with a "FLAMMABLE" multilingual warning label, which complies with international hazardous chemical storage labeling standards. The material and process are designed in accordance with OSHA and NFPA standards.

　　When selecting, it should be clear that this explosion-proof cabinet is suitable for storing flammable liquids with a flash point below 60 ℃, such as acetone, ethanol, gasoline, etc; Not suitable for storage of strong acids, strong alkalis or corrosive gases, such items should be stored in corrosion-resistant PP cabinets. If the storage capacity is less than 45 gallons, a small single door cabinet can be selected; If a higher fire rating is required (such as 2-hour fire resistance), a thickened or certified explosion-proof cabinet should be selected. Compared with ordinary metal cabinets, this cabinet has triple protection of fire prevention, anti-static, and ventilation, with significant differences.

　　During installation, it is necessary to ensure that the cabinet is placed horizontally, away from heat sources and open flames. The ventilation opening should be connected to an external exhaust duct and the filter screen should be cleaned regularly. Overloading and stacking should be avoided in daily use, and it is recommended that the load-bearing capacity of the partition should not exceed 50kg per layer; Check the flexibility of the door lock linkage mechanism every month and test the ventilation air velocity every quarter. Common faults include door lock jamming (lubricated hinges), blocked ventilation openings (requiring disassembly and cleaning). If deformation or coating peeling of the cabinet is found, it should be stopped in a timely manner and professional maintenance should be contacted.
