45 gallon steel double-layer fireproof and explosion-proof safety cabinet with anti-static and ventilation openings

Description :

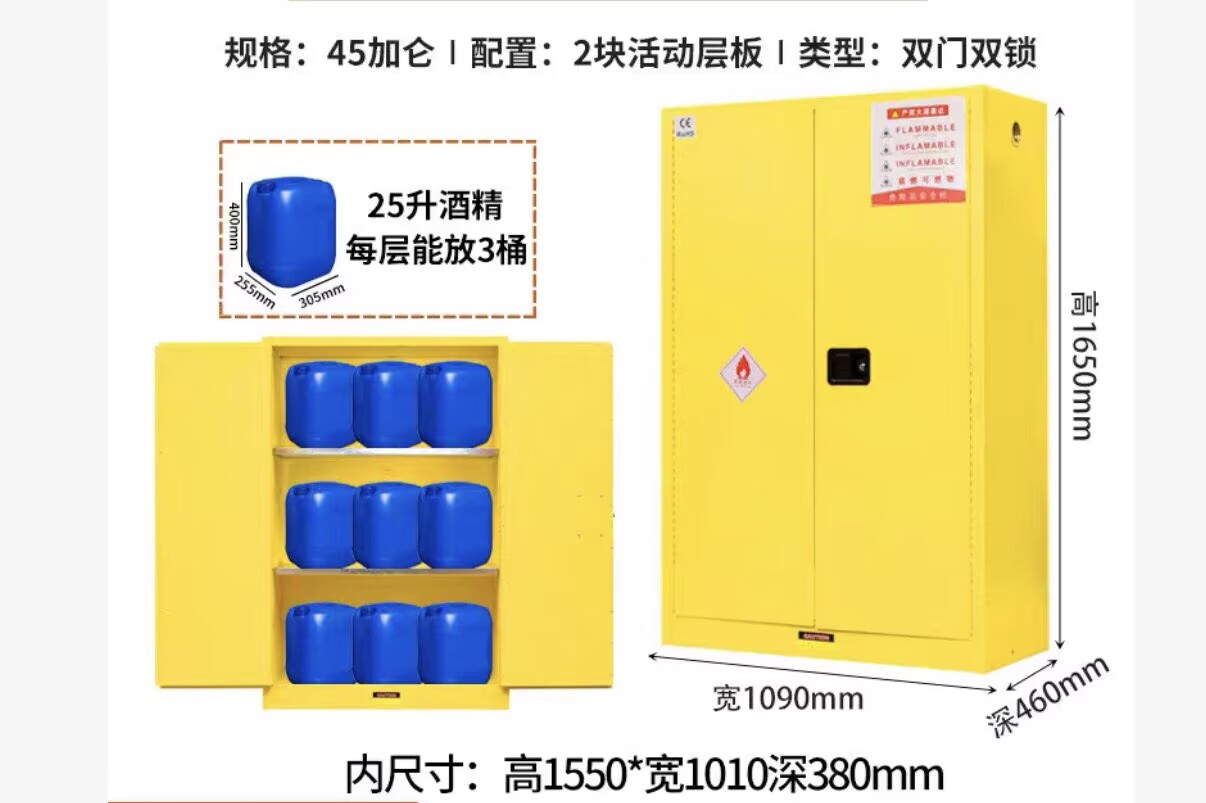

  The 45 gallon steel double-layer fireproof and explosion-proof safety cabinet is an industrial grade safety protection equipment designed specifically for storing flammable and combustible liquids and chemicals. It effectively blocks external heat sources through a double-layer steel plate structure and an intermediate air insulation layer, preventing chemicals inside the cabinet from burning or exploding due to high temperatures, and solving the safety hazards of hazardous chemical storage in laboratory, factory workshop and other scenarios. The typical capacity of this fireproof and explosion-proof safety cabinet is 45 gallons (approximately 170 liters), suitable for storing Class A and B flammable liquids such as paint, solvents, alcohol, etc. It meets the basic protection requirements for hazardous material storage in international standards such as OSHA and NFPA 30, and is a key hardware facility in the EHS management system.

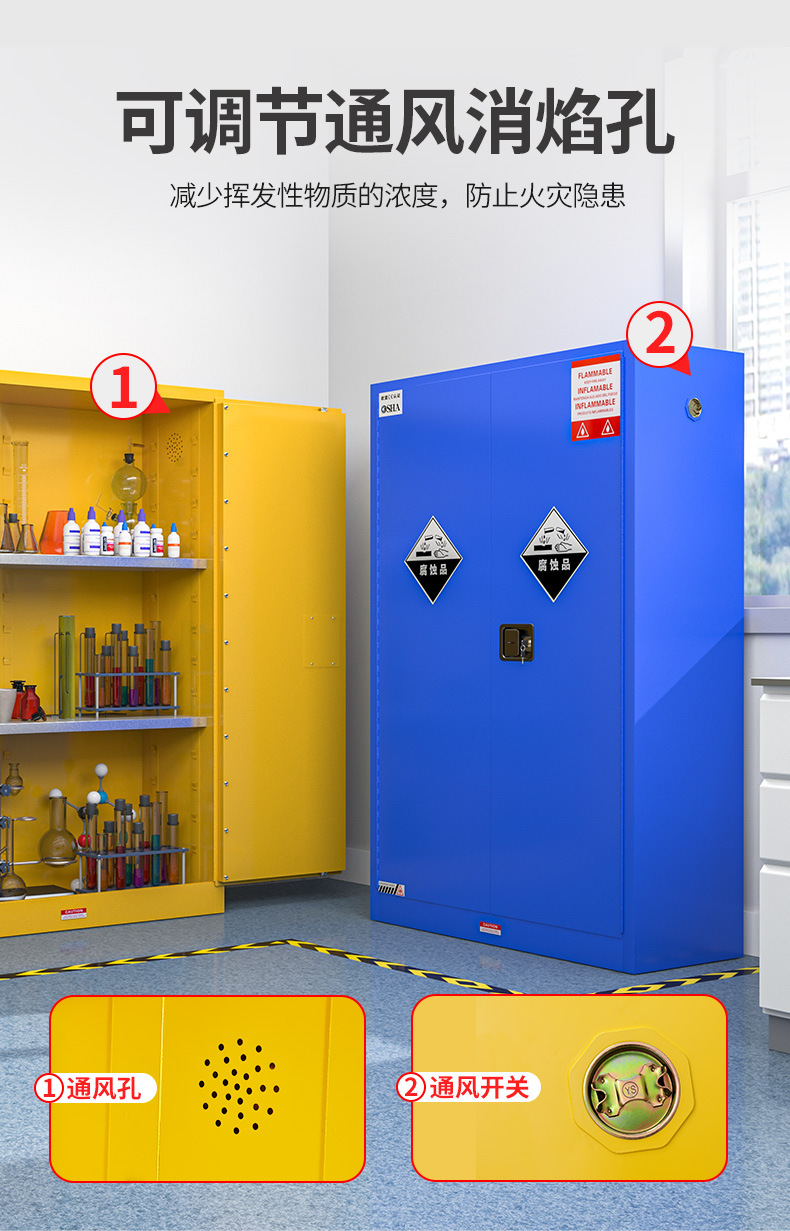

  The main body of the fireproof and explosion-proof safety cabinet is made of high-quality cold-rolled steel plate, seamlessly formed by spot welding, and the surface is treated with epoxy resin powder electrostatic spraying, which has excellent acid and alkali corrosion resistance. A 38mm air insulation layer is left in the middle of the double-layer wall structure to ensure that the temperature inside the cabinet can be maintained below the critical danger point in the event of a fire. The cabinet door is equipped with a three-point linkage locking system to enhance sealing and anti-theft functions. There is a 5cm high leak proof liquid tank at the bottom, which can accommodate at least 10% of the container volume or the maximum container volume of leaked liquid. The top of the cabinet is equipped with two 2-inch diameter ventilation openings, which support the connection of exhaust systems to timely discharge volatile gases and reduce the risk of internal accumulation. The overall structure is sturdy and durable, meeting common process standards for FM certification or CE certification.

  When selecting, the capacity should be determined based on the type and quantity of chemicals stored on site. The 45 gallon specification is suitable for medium-sized usage scenarios, and if space is limited, 30 gallons can be selected. For large-scale storage, the 90 gallon model is considered. It is necessary to confirm whether the cabinet has an anti-static grounding wire interface, especially in environments where flammable and explosive gases are prone to accumulate. Static sparks are a major hazard, so anti-static design is indispensable. If storing highly corrosive acids and bases, specialized cabinets lined with polyethylene or stainless steel materials should be selected instead of ordinary steel fireproof and explosion-proof safety cabinets. In addition, attention should be paid to the color labeling of the cabinet. Yellow usually represents flammable liquids, red represents flammable liquids, and blue represents weakly corrosive liquids. It should be consistent with the on-site safety management regulations to avoid confusion caused by mixing.

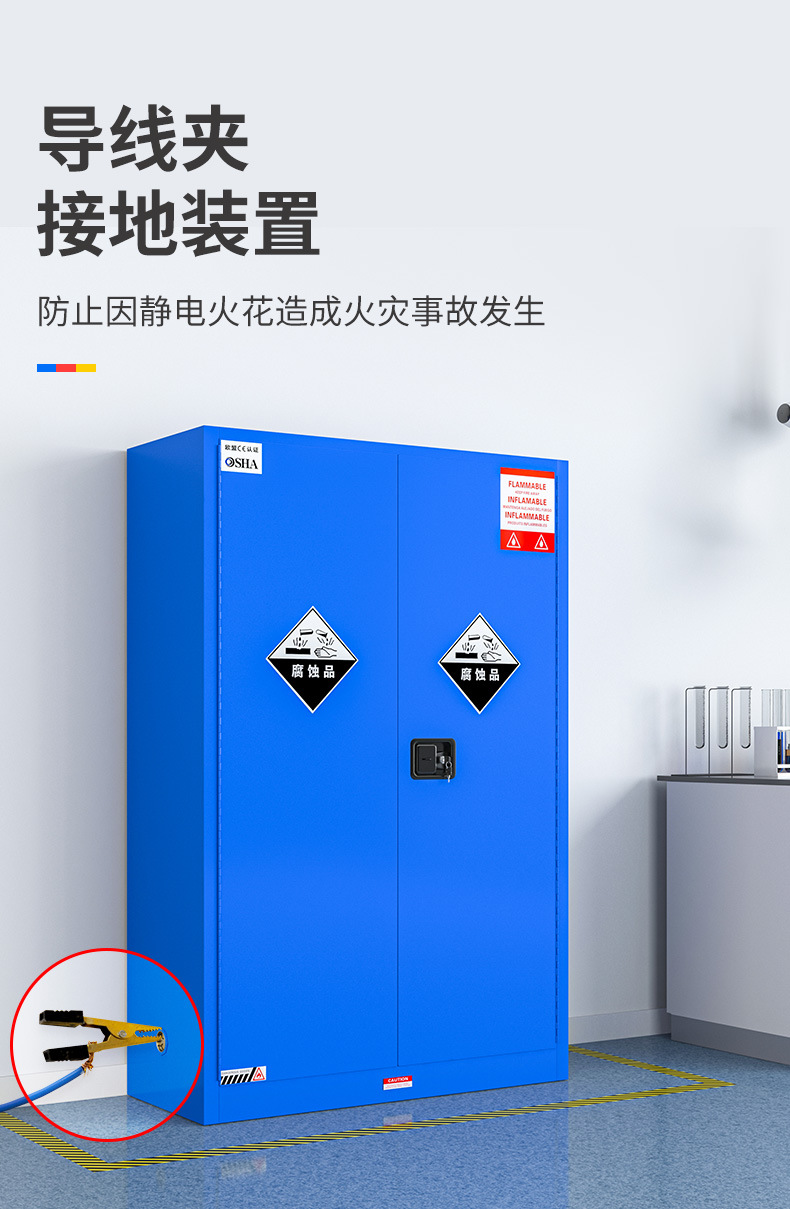

  When installing a fireproof and explosion-proof safety cabinet, it should be placed on a flat and well ventilated ground, at least 1 meter away from heat sources, spark sources, and emergency exit passages. The cabinet must be reliably connected to the building grounding system using a matching grounding wire to eliminate static electricity accumulation. In daily use, it is strictly prohibited to stack debris on the top of the cabinet, keep the ventilation openings unobstructed, and regularly check the sensitivity and stability of the door locks and hinges. If the coating of the cabinet is found to be damaged, it should be repaired in a timely manner to prevent rust and corrosion. It is recommended to clean the bottom leak proof groove every six months and check for residual fluid accumulation or sediment to ensure that the leak containment function is normal. Do not perform packaging or mixing operations inside the cabinet, only use it for static storage to extend the service life of the fire and explosion safety cabinet and ensure continuous safety protection.
