90 gallon battery charging cabinet with automatic fire extinguishing and exhaust system, industrial explosion-proof safety storage cabinet

Description :

  The 90 gallon battery charging cabinet is a centralized charging and safe storage solution designed specifically for energy storage devices such as lithium batteries and lead-acid batteries. The core of this device solves the problems of thermal runaway, fire, and harmful gas accumulation that may occur during battery charging, and is suitable for typical working conditions such as factory workshops, logistics warehouses, and electric vehicle parking areas. Through integrated design, the charging function is closely integrated with safety protection to ensure safety during unmanned or nighttime charging, effectively reducing the safety risks caused by battery accidents in enterprises and meeting the high standard safety management requirements of modern industry for energy storage equipment.

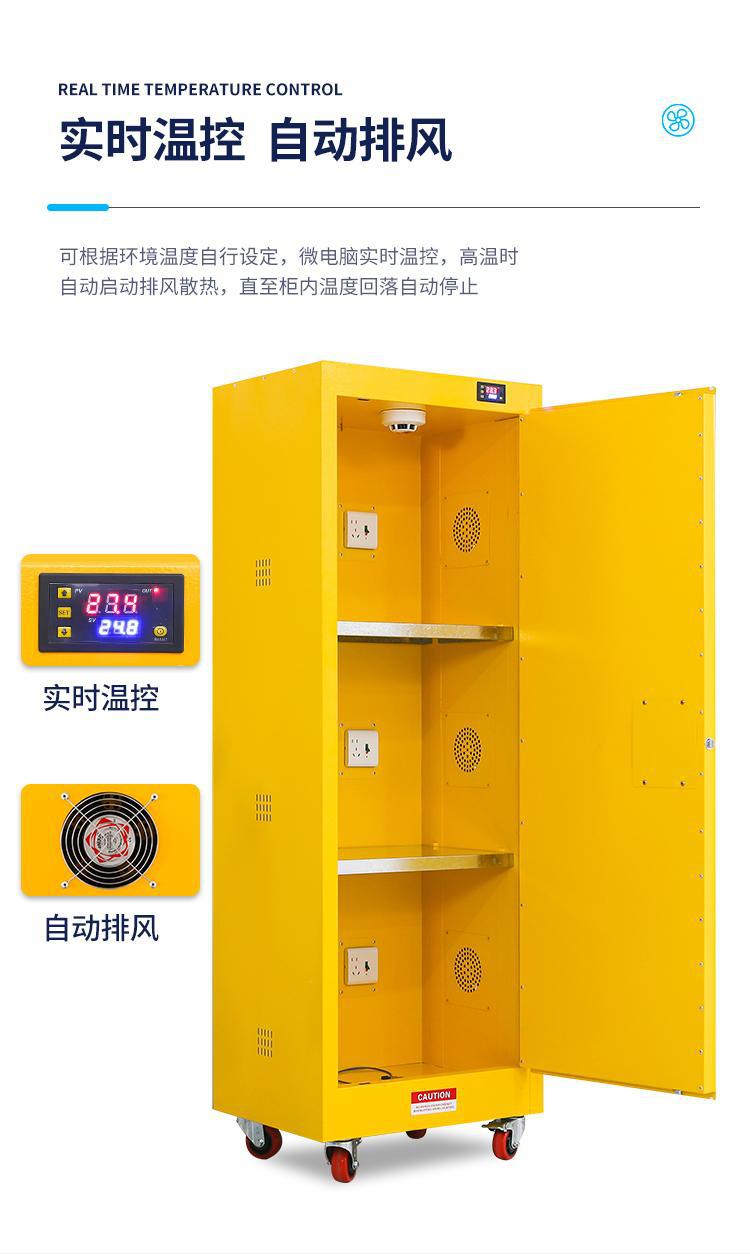

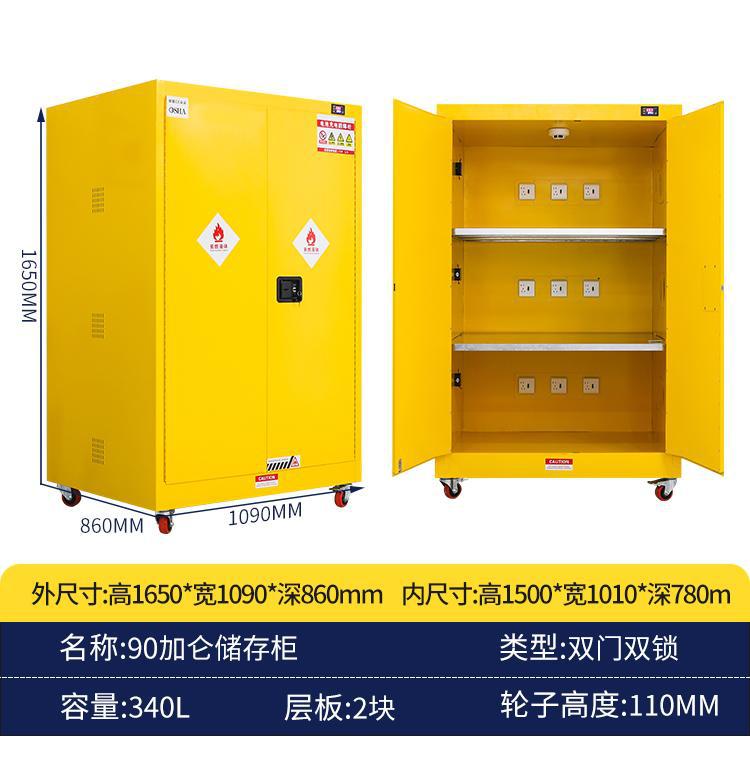

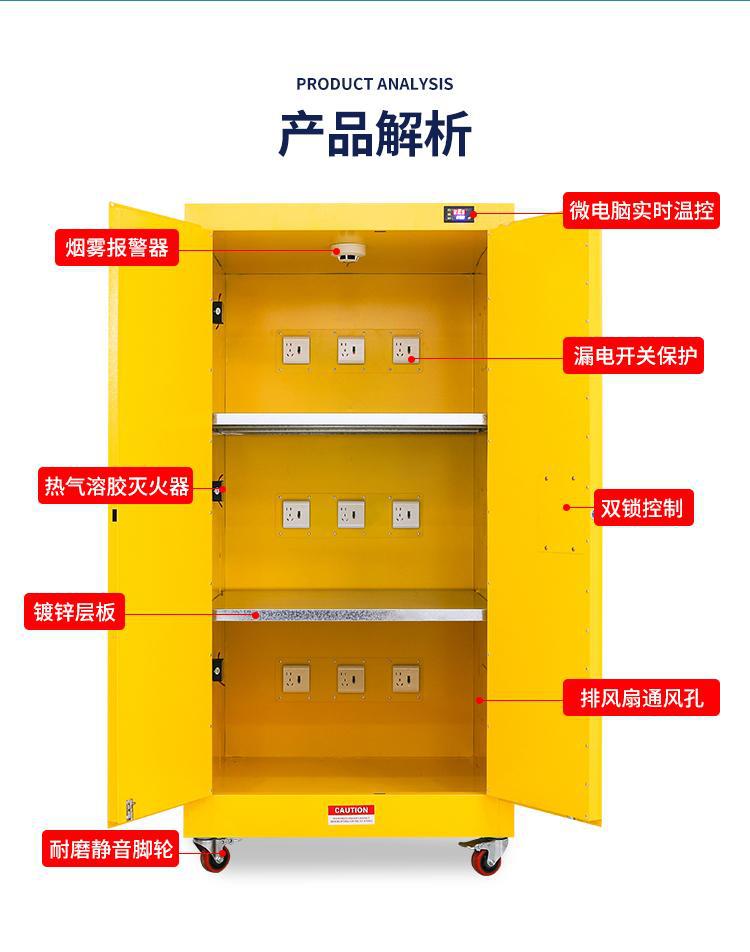

  The external dimensions of the battery charging cabinet are 1650 * 1090 * 860mm, with a sturdy structure and 2 adjustable partitions inside, making it easy to classify and store batteries of different sizes. In terms of security system, it is equipped with one high-sensitivity smoke detector as standard, which can monitor smoke concentration in real time; Equipped with 3 aerosol automatic fire extinguishing devices, it can quickly suppress the fire in the early stage of the fire; Built in 1 set of temperature warning exhaust system and 3 powerful fans, automatically start exhaust and heat dissipation when abnormal temperature is detected to prevent heat accumulation. The electrical part adopts 9 Delixi brand leakage protection sockets to ensure the electrical safety of each charging output and comply with industrial grade electricity standards.

  When selecting a battery charging cabinet, it is important to consider the type, quantity, and charging power requirements of the batteries. This 90 gallon capacity is suitable for batch battery management scenarios in medium and large enterprises. If there is a flammable and explosive gas environment on site, it is necessary to confirm whether the cabinet has additional explosion-proof certification; If the battery volume is large, it is necessary to verify whether the spacing between the partitions meets the storage requirements. Compared with ordinary metal cabinets, this dedicated charging cabinet integrates active and passive fire protection structures. The difference lies in its linkage ability of automatic detection, alarm, fire extinguishing, and exhaust, rather than simply physical isolation. When purchasing, the corresponding configuration should be selected according to the actual safety level requirements.

  When installing the battery charging cabinet, it should be placed on a flat ground and positioned and fixed using the four universal wheels at the bottom (two of which have brakes) to ensure that the cabinet is stable and does not shake. In daily maintenance, it is necessary to regularly check whether the smoke detector is blocked by dust, test whether the pressure of the aerosol fire extinguishing device is normal, and clean the debris at the inlet and outlet of the exhaust fan to ensure heat dissipation efficiency. It is recommended to conduct a simulated alarm test once a month to verify the sensitivity of the linkage function between temperature warning and exhaust system. Common faults such as excessive fan noise, often due to bearing oil shortage or foreign object jamming, should be cleaned or replaced in a timely manner to ensure long-term stable operation of the equipment.
