Fish tank aquarium dedicated blue screen LCD display with temperature display and multifunctional icon segment code screen
Category:
electron/Display device/LCD screen
Model:
According to customer needs
Brand:
Shenzhen Yunxin River
display type:
Segmented LCD display
Backlight color:
Blue background with white text
Main functions:
Temperature display and status indication
Applicable fields:
Fish tank, aquarium, chiller
containing icons:
Lighting, water pump, oxygen, UV sterilization, child lock
temperature unit:
Celsius (℃)
interface method:
PCB pin connection
Working Voltage:
5V DC (typical value)
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
display type Segmented LCD display
Backlight color Blue background with white text
Main functions Temperature display and status indication
Applicable fields Fish tank, aquarium, chiller
containing icons Lighting, water pump, oxygen, UV sterilization, child lock
temperature unit Celsius (℃)
interface method PCB pin connection
Working Voltage 5V DC (typical value)
Description :
This product is a customized segmented LCD display screen designed specifically for smart aquariums and fish tank controllers. The screen features a high contrast blue background with white segmented display, providing a clear and eye-catching visual effect, making it easy to read data even in low light environments.

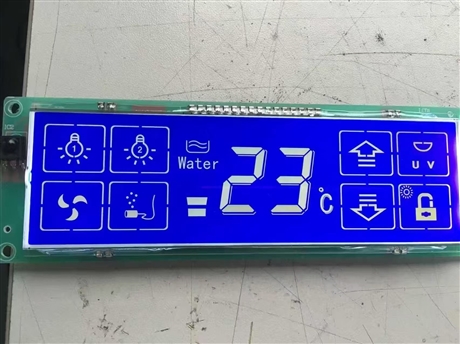

The layout of the display screen functions is scientifically reasonable, with a large digital display area in the central area, mainly used for real-time display of water temperature (as shown in the figure at 23 ℃), meeting the core requirements of temperature monitoring in aquaculture. Multiple status indicator icons are integrated on the left side, including two-way lighting control (bulb 1, bulb 2), circulation filtration system (fan icon), and oxygen pump working status, making it convenient for users to intuitively grasp the equipment operation mode. On the right side, there are water level adjustment or water flow direction indicators, UV sterilization lamp status, and child lock/safety lock function icons, fully covering the control logic of modern intelligent fish tanks.
This module is based on PCB circuit board integration, with standard pin sockets reserved at the edges for stable connection with the main control board. The product is widely used in household ornamental fish tanks, small aquaculture tanks, chiller control panels, and other scenarios. As the core human-computer interaction interface, it not only enhances the technological sense of aquarium equipment, but also lowers the user's operating threshold through intuitive graphical language, making it an ideal choice for aquarium equipment manufacturers to upgrade their intelligent control systems. Support customizing icon content and size specifications according to customer needs.
