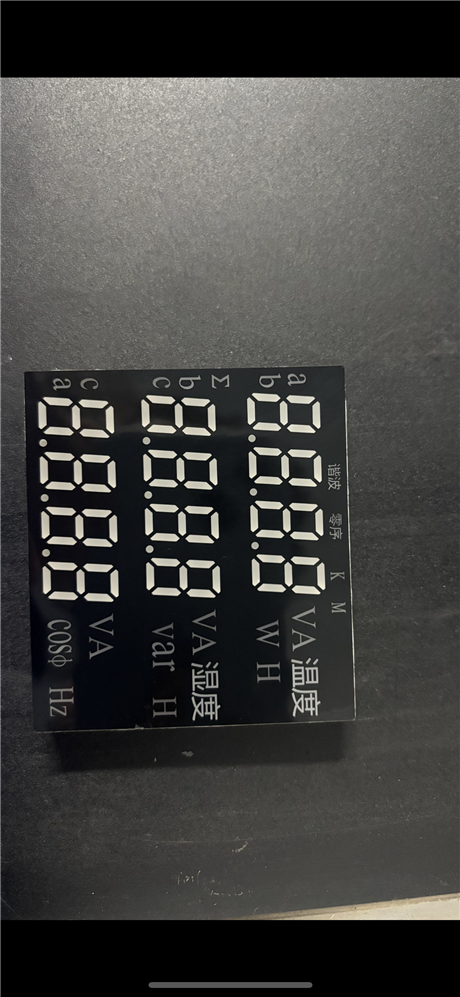

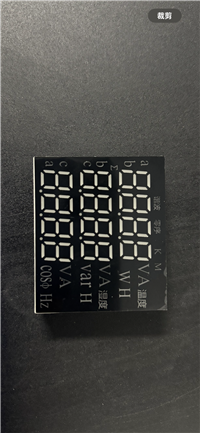

High brightness LED digital tube display with both positive and negative options for industrial instrument counting display module

Description :

This product is a universal LED digital display device widely used in the data visualization display of various electronic devices. The digital tube is packaged with high-quality light-emitting diode chips, which have significant characteristics such as high brightness, low power consumption, fast response speed, and long lifespan. Its internal structure usually consists of seven bar shaped light-emitting segments (a-g) and a decimal point (dp) arranged in an "8" shape. By controlling the combination of brightness and darkness of different segments, it can clearly display 0-9 numbers and some English letters and symbols, meeting the basic character display requirements.

This series of products supports two driving modes, common cathode and common anode, with strong compatibility and easy connection with various microcontrollers, microcontrollers (such as STM32, 51 series, Arduino, etc.) and driver ICs (such as 74HC595, TM1637, etc.). The circuit design is simple and flexible. The shell is packaged with high temperature resistant and anti-aging engineering plastic or epoxy resin. The pin arrangement is standard and the welding performance is excellent. It is suitable for wave soldering or manual welding process to ensure assembly efficiency and reliability in industrial production.

Typical application scenarios include: home appliances (such as microwave ovens, washing machines, rice cookers for time and status display), industrial instruments and meters (such as voltage meters, ammeters, frequency meters for reading values), consumer electronics (such as electronic clocks, calculators, thermometers), security equipment (such as countdown timers, access control system displays), and automation control panels. For situations that require multiple displays, dynamic scanning technology can be used to connect multiple digital tubes in series, effectively saving I/O port resources and reducing system costs. The product offers a variety of color options (red, green, blue, yellow, white, etc.) and size specifications (ranging from 0.28 inches to 4 inches), which can be customized according to specific project needs. It is an indispensable basic display component in embedded development and electronic product manufacturing.
