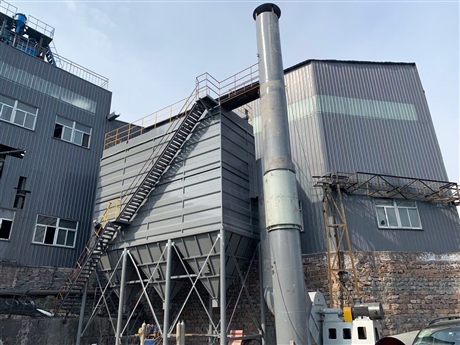

Mining dust collector, crusher dust collector, vibrating screen dust collector

Description :

　The mining dust collector has a simple structure, high dust removal effect, easy maintenance, and does not require personnel supervision, making it particularly suitable for dust removal systems in small stone and quarry sites.

　　The mining dust collector adopts a pleated filter cartridge as the filtering element, with a compact structure that saves space for users; Capable of filtering ultrafine, coalescing, humid, and fibrous dust with high dust removal efficiency; Selecting high-quality filter cartridges with a service life of 2-3 years greatly reduces the number of filter element replacements for dust collectors and saves user costs; The dust collector in the production line of the environmentally friendly gravel factory has been applied to gravel production lines across the country and has received high praise from users. Environmental protection will also focus more on the quality of dust collectors in terms of user support and attention, providing users with cost-effective products.

　　Application scope of mining dust collector

　　Mine dust collector, also known as stone factory dust collector or sand and gravel factory dust collector, is suitable for the small particles generated by various types of stone crushers, with high dust removal effect. The mining dust collector produced by our company has the advantages of large processing capacity, stable operation, high purification efficiency, and low maintenance workload. It is an indispensable dust removal equipment for major stone production plants and is widely used in stone factories, mines, metallurgy, building materials, highways, railways, water conservancy, chemical engineering and other industries.

　　Structure and principle of mine dust collector

　　Upper box: including dust collector cover, rotating cover removal device, cleaning room, bag changing inlet, observation hole, and air outlet.

　　Medium box body: including flower board, filter bag, filter bag frame, filter bag guide, filter chamber cylinder, air inlet, and inlet door.

　　Lower box: including positioning support frame, ash hopper, star shaped ash discharge valve, and support.

　　Anti blowing dust cleaning mechanism: including rotary arm, nozzle, loop anti blowing mechanism, circulating air duct, anti blowing pipe, anti blowing machine, and rotary arm deceleration mechanism.

　　Dust removal of mine dust collector:

　　1. The mine dust collector is equipped with sealed devices or dust collection covers at the feeding and discharging ports, upper parts of vibrating screens, and belt conveyor transfer points of crushers or crushers for raw materials such as ore, lump ore, limestone, dolomite, bauxite, and raw coal. Double layered sealed covers should be installed at the receiving points of the transfer points. Cover the dust producing equipment with a closed hood or construct a dust collection chamber to create a uniform negative pressure inside the hood, avoiding dust escape. Alternatively, use an open suction hood to create a suction and capture airflow, controlling the exposed dust area within a narrow range, so that the dust carrying airflow is sucked away and purified by a dust collector before being discharged into the atmosphere through an exhaust pipe (or chimney).

　　2. Dust removal steps should be taken for the unloading truck on the mixing and batching tank and the quantitative feeding station below the tank. The dust generated by the unloading truck on the trough can be treated with a mobile air vent ventilation trough or a vehicle mounted dust collector, or with a large capacity sealed hood. A double-layer sealed hood should be installed for the dust generated by the quantitative unloading device under the trough.

　　3. The raw coal crushing and conveying dust removal system is equipped with a dust collector. The bag filter should be selected as the dust collector, and the dust bag should have anti-static function; The system and equipment should be grounded to static electricity and equipped with explosion-proof devices.

　　4. The exhaust and dust removal systems in the raw material yard include ore crushing and screening dust removal systems, limestone crushing and screening dust removal systems, aluminum ore crushing dust removal systems, and coal crushing dust removal systems.
