B4-72 series explosion-proof centrifugal fan industrial exhaust and ventilation equipment
Category:
Environmental Protection/Fan exhaust equipment/Explosion proof fan
Model:
B4-72
Brand:
Hengsheng
Fan type:
centrifugal
Explosion-proof rating:
ExdIIBT4
Transmission method:
Type A/C/E
Impeller material:
Carbon steel/stainless steel
Motor power:
0.75kW-55kW
voltage frequency:
380V/50Hz
speed range:
1450-2900r/min
Applicable Temperature:
≤80℃
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Fan type centrifugal
Explosion-proof rating ExdIIBT4
Transmission method Type A/C/E
Impeller material Carbon steel/stainless steel
Motor power 0.75kW-55kW
voltage frequency 380V/50Hz
speed range 1450-2900r/min
Applicable Temperature ≤80℃
Description :

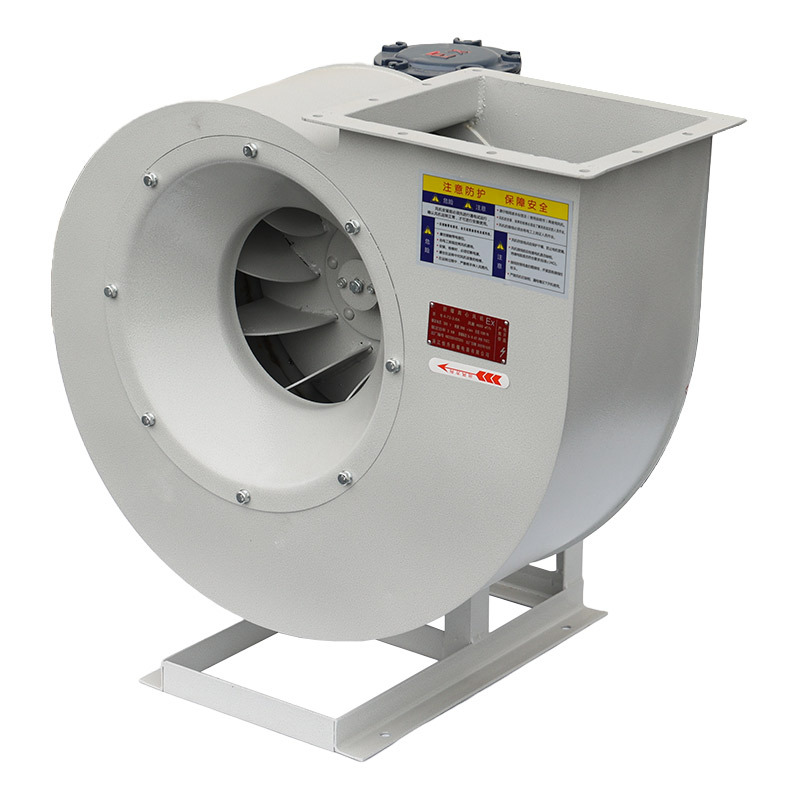

The B4-72 series explosion-proof centrifugal fan is a ventilation equipment designed specifically for environments with flammable and explosive gases or dust. This explosion-proof centrifugal fan is driven by an explosion-proof motor to ensure safety during operation in hazardous areas. The impeller has undergone strict dynamic balance correction, running smoothly with minimal vibration and low noise. The shell structure is sturdy and has good sealing performance, which can effectively prevent external impurities from entering the interior and affecting operation.
This series of products is widely used in workshop ventilation, waste gas treatment, and post air supply in industries such as petroleum, chemical, pharmaceutical, paint spraying, and flour processing. The installation method is flexible, supporting horizontal or vertical air outlet, and can be adjusted according to the on-site pipeline layout. Easy to maintain, regular cleaning of impeller dust can maintain high efficiency performance. Specific air volume, wind pressure parameters, and explosion-proof grade requirements need to be confirmed during procurement in order to match actual working conditions. The B4-72 series explosion-proof centrifugal fan has stable performance and strong durability, making it a reliable choice for industrial explosion-proof ventilation systems. Pay attention to wiring that complies with explosion-proof electrical specifications and ensures good grounding.
AfterSalesService :
