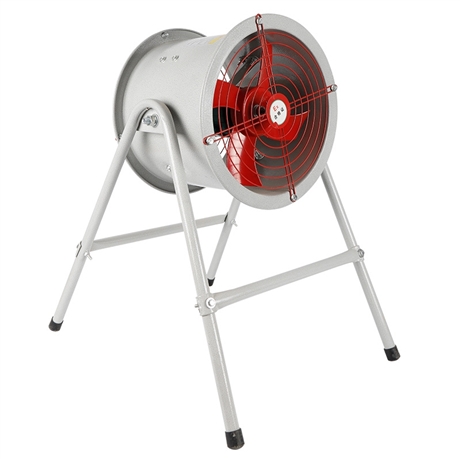

CBF series explosion-proof axial flow fan industrial ventilation equipment

Description :

  The CBF series explosion-proof axial flow fan is a ventilation equipment designed specifically for flammable and explosive environments, mainly solving the problems of air circulation and heat emission in hazardous areas such as petroleum, chemical, and pharmaceutical industries. This device drives the impeller to rotate through a motor, generating axial airflow and achieving efficient gas replacement. Typical operating conditions include Zone 1 and Zone 2 locations containing explosive gas mixtures of Class II A, B, and C, as well as environments with temperature groups T1-T4. The CBF series explosion-proof axial flow fan has a compact structure, easy installation, and can meet the forced ventilation needs of various industrial scenarios, ensuring the safety and comfort of the production environment.

  CBF series explosion-proof axial fans usually use aluminum alloy die-casting impellers, which have the characteristics of high strength, light weight, and corrosion resistance. The shell is mostly welded or die cast from steel plates, and the surface is treated with electrostatic spraying to enhance its protective performance. The motor is a flameproof three-phase asynchronous motor with a protection level of IP54 or IP55 and an insulation level of F, ensuring stable operation in harsh environments. The implementation standards comply with GB3836.1-2010 "Explosive Atmosphere Part 1: General Requirements for Equipment" and GB3836.2-2010 "Explosive Atmosphere Part 2: Equipment Protected by Explosion proof Enclosures". The blade angle has been optimized for high airflow, low noise, and smooth operation.

  When selecting CBF series explosion-proof axial flow fans, it is necessary to clarify the hazardous area classification, gas type, and temperature group of the usage site. Suitable for factories, warehouses, laboratories and other places that require explosion-proof ventilation. Not suitable for environments containing corrosive gases, conductive dust, or high temperatures exceeding the allowable range of the motor. Compared with ordinary axial fans, CBF series explosion-proof axial fans have special explosion-proof requirements in motor sealing, junction box structure, and material selection. It is strictly prohibited to replace and use them in non explosion-proof areas. When purchasing, it is necessary to confirm the voltage level (such as 380V/50Hz) and installation method (wall mounted, post mounted, or pipeline mounted) to ensure compatibility with the site conditions.

  When installing the CBF series explosion-proof axial flow fan, it should be ensured that the foundation is firm, the inlet and outlet are unobstructed, and the airflow is smooth. Regularly inspect the blades for deformation, cracks, or dust accumulation, and promptly clean or replace any abnormalities found. The motor bearings need to be lubricated regularly, usually every 3000-5000 hours of operation. Pay attention to checking whether the grounding wire is reliable to prevent static electricity accumulation. If vibration intensifies, noise is abnormal, or the motor overheats, the machine should be stopped immediately for inspection and troubleshooting before it can be restarted. In daily maintenance, the casing should be kept clean to prevent debris from entering the interior of the fan and extend the service life of the CBF series explosion-proof axial flow fan.
