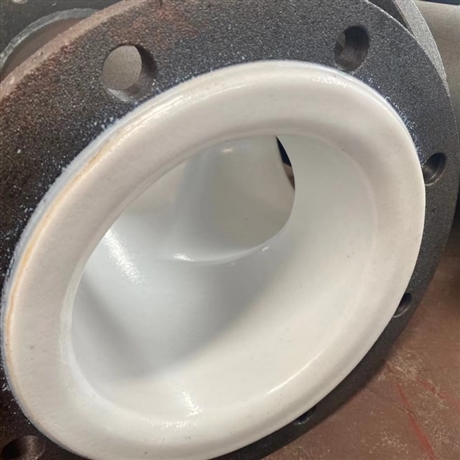

Steel lined PO lined plastic pipe, acid alkali resistant and corrosion-resistant chemical pipeline

Description :

PO lined plastic pipe steel lined PO lined plastic pipe manufacturer

PO lined plastic pipe steel lined PO lined plastic pipe steel lined PO lined plastic straight pipe steel lined PO lined plastic elbow, steel lined PO lined plastic tee, steel lined PO lined plastic reducer, chemical water transportation PO lined plastic pipe steel lined PO lined plastic pipe, circulating water transportation PO lined plastic pipe steel lined PO lined plastic pipe, acid and alkali water transportation PO lined plastic pipe steel lined PO lined plastic pipe

PO lined plastic pipe, steel lined PO lined plastic pipe, steel pipe lined with PO plastic powder. Generally, when customers inquire, they need to determine the steel pipe material, steel pipe thickness, lining thickness requirements, flange pressure rating, outer coating, welding process requirements, and so on. We should treat every step of the workshop process pipeline rigorously and do a good job in each step, in order to form a good quality finished pipeline.

Welcome new and old customers to inquire.

Business Manager Jiao Manager 1-3-6-3-3-8-9-7-9-0-1 Mobile WeChat Same Number

PO lined plastic pipe steel lined PO lined plastic pipe manufacturer

Our company is located in the heavy industrial city of Luoyang, with convenient transportation and timely delivery; Survival through quality, development through reputation, receiving customer orders, strictly producing according to requirements, and reporting production progress to customers. Integrity management, welcome inquiries.

Introduce pipeline parameters to everyone:

Direct pipe execution standard: HG/T 20538-2016

Execution standard for pipe fittings: HG-20538-1992; HG/T2437-2006   HG/T21562-1994

Flange execution: HG20593-97 standard

Pipeline model: DN20mm，DN25mm，DN32mm，DN40mm，DN50mm，DN65mm，DN80mm，DN100mm，DN125mm，DN150mm，DN200mm，DN225mm，DN250mm，DN300mm，DN325mm，DN350mm，DN400mm Wait; The commonly used models are DN80mm, DN100mm, DN150mm, DN200mm;

Length: 6 meters per piece, customizable

Color: default gray, can be customized according to the contract

Process: Hot rolling molding

Material: steel pipe, plastic powder, flange

Features: anti-corrosion, acid alkali salt resistant

Application: Chemical plants, pharmaceutical factories

DN300mmPO lined plastic pipe steel lined PO lined plastic pipe fittings parameters: We commonly use the B series steel pipe, which is also the standard 2 series

Steel pipe material: 20 # seamless steel pipe

Steel pipe thickness: Φ 325mm × 6mm × 6000mm

Inner lining material: PO powder

Inner lining thickness: ≥ 4.5mm

DN300mm elbow size: 90 degree elbow, R=455mm， 45 degree elbow, L1=L2=186mm

DN300mm tee size: main and bypass L1=L2=H=280mm; There is also a 300 × 250 reducer tee; 300×200； 300×150； Its three ends are 305mm in length.

DN300mm reducer, also known as reducing pipe size: 300 × 250; 300×200； 300×150； Same length: L=200mm

Recent engineering cases of PO lined plastic pipe steel lined PO lined plastic pipe:

Henan Changxing Huaneng Group Left Quan Power Plant Phase I 2 * 660KV Unit Lining Plastic Pipeline Project (3000m PO lined plastic pipe steel lined PO lined plastic pipe)

Hunan Bilu Environmental Protection Industry Development Co., Ltd. Jinju Group Coal Gangue Power Plant Phase II Project Plastic lined Pipeline Project (1200m PO lined plastic pipe steel lined PO lined plastic pipe)

Shanxi Fantawild Environmental Engineering Co., Ltd. Houma Power Plant Workshop Pipeline Renovation Project (600m PO lined plastic pipe, steel lined PO lined plastic pipe)

Wuhan Hankou Green Energy Co., Ltd. Chemical Workshop Pipeline Project (1500mPO lined plastic pipe, steel lined PO lined plastic pipe supporting fittings)

PO lined plastic pipe steel lined PO lined plastic pipe steel lined PO lined plastic straight pipe steel lined PO lined plastic elbow, steel lined PO lined plastic tee, steel lined PO lined plastic reducer, chemical water transportation PO lined plastic pipe steel lined PO lined plastic pipe, circulating water transportation PO lined plastic pipe steel lined PO lined plastic pipe, acid and alkali water transportation PO lined plastic pipe steel lined PO lined plastic pipe
