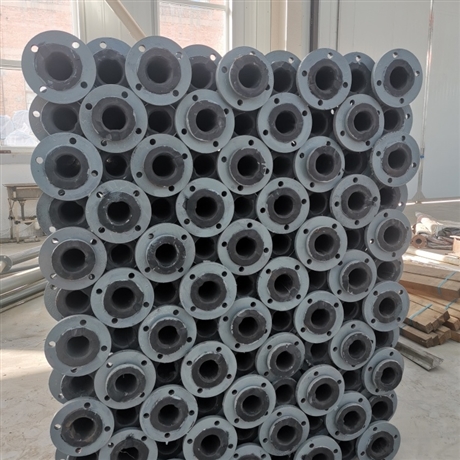

Supply rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers
Category:
chemical industry/Chemical pipelines and accessories/Chemical pipelines and accessories
Model:
DN25~1000
Brand:
Hengyi New Materials
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
Supply rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers
The manufacturer supplies DN100 rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers, DN150 rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers, DN200 rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers, DN250 rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers
Rubber lined straight pipes, rubber lined elbows, rubber lined tees, and rubber lined reducers use rubber lining as the lining layer and steel pipes as the skeleton. Combining the advantages of both, the normal service life can be as long as 10-15 years (laboratory fluids may vary, specific standards apply)
Steel lined rubber pipelines are mainly used in two application areas: power plants and mines. For desulfurization steel lined rubber pipelines in power plants and the mining industry, wear-resistant rubber lining is generally used. For mining concentrate and tailings transportation, well filling pipelines, ash transportation, and chemical corrosion transportation
Business Manager Jiao Manager 1-3-6-3-3-8-9-7-9-0-1 Same as WeChat
Supply rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers
Rubber lined straight pipe, rubber lined elbow, rubber lined tee, rubber lined reducer, main production process
Welding - Sandblasting rust removal - Grinding welding slag - Brushing adhesive slurry 3 times - Inner lining rubber plate - Pressure vulcanization in vulcanization furnace - Painting/brushing paint - Sealing and packaging in wooden boxes or steel frames
Rubber lined straight pipe, rubber lined elbow, rubber lined tee, rubber lined reducer with complete diameter DN80mm，DN100mm，DN150mm，DN200mm，DN250mm，DN300mm，DN350mm，DN400mm，DN450mm，DN500mm，DN600mm，DN800mm；
Our unit's rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers and fittings are executed according to the following standards
Rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers, and fittings shall comply with the standard HG21501-93
Flange standard: GB/T 9119-2010; New National Standard
Flange standard: ASME B16.47-2006; American Standard
Loose fitting flange: HG 20600-97 flat welding ring loose fitting steel pipe flange
If the general customer has no other requirements, our default standards are as follows
Rubber lined straight pipes, rubber lined elbows, rubber lined tees, rubber lined reducers have high wear resistance and corrosion resistance, and are usually used for conveying abrasive media.
For example, when transporting quartz sand, the following points should be noted:
1. Particle size and shape: Large particles or sharp quartz sand may exacerbate wear
2. Conveying speed: High flow rate will increase wear, flow rate needs to be controlled
3. Temperature: The temperature resistance range of the steel lined rubber pipeline is -40~110 ℃
It depends on the actual situation.
Rubber lined straight pipes, rubber lined elbows, rubber lined tees, and rubber lined reducers are widely sold in the following fields:
Domestic and international: Domestic sales in Henan, Shanxi, Shaanxi, Hubei, Hunan, and Gansu;
Abroad: Peru, Democratic Republic of Congo, Japan, etc
Previous engineering cases
Mitsui corporation
Shanxi Xianghui Huayuan Coal Coking Co., Ltd. desulfurization system
Henan Wilt Chemical Fiber Co., Ltd. Filter Tank Rubber Lining Project
Huachuang Tianyuan Industrial Development Co., Ltd. (exporting rubber lined pipeline fittings project to Peru)
AfterSalesService :
Key words:
