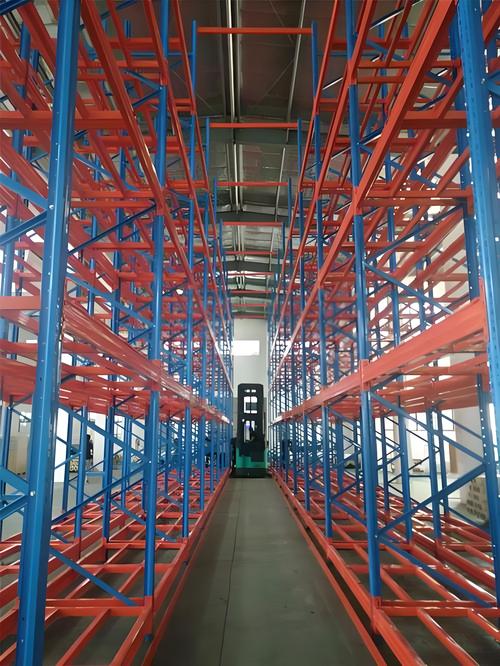

Narrow aisle shelving high-level storage solution supports VNA forklift operations to improve warehouse utilization

Description :

  Narrow aisle shelving is a professional storage equipment designed specifically for high-density storage, aimed at solving the problem of warehouse space waste caused by traditional beam style shelving channels being too wide. This category significantly improves the warehouse's flat utilization and vertical storage space by reducing the width of forklift operation channels, usually controlling the channels between 1.6 meters and 2.0 meters. Narrow aisle shelves are particularly suitable for logistics centers or manufacturing warehouses with relatively few types of goods, large batches, and high requirements for storage and retrieval efficiency. They can effectively cope with high land costs or tight storage capacity, and are an ideal choice for maximizing the utilization of storage space.

  The structural design of narrow aisle shelves follows strict mechanical standards and is mainly made of high-quality cold-rolled steel. The column section is usually rectangular or a special shaped structure to provide sufficient bending strength and stability. The common column height can reach more than 10 meters, and the single support capacity is usually between 1000kg and 2000kg. The specific value needs to be customized according to the actual load. The ground flatness requirement is extremely high, usually requiring FF/FL grade standards to ensure the safety and accuracy of narrow aisle forklifts (VNA) during high-speed operation. Some high-end configurations will also be equipped with top rails or lateral guide wheels to further limit forklift shaking and ensure the structural stability and operational safety of narrow aisle shelving systems under high-frequency operation.

  When selecting narrow aisle shelves, it is important to consider the type of forklift and the ground conditions of the warehouse. This category must be used in conjunction with specialized three-way stacking forklifts or narrow aisle forklifts, as ordinary balance weight forklifts cannot operate in such narrow passages. If the warehouse floor lacks flatness or has not been hardened, it is not recommended to install narrow aisle shelves to avoid the risk of shelves tilting or collapsing due to foundation settlement. Compared with through type shelves, narrow aisle shelves achieve 100% random access to goods without following the first in, last out principle; Compared with double depth shelves, it has higher access efficiency but slightly lower space utilization. The purchaser should conduct a comprehensive evaluation based on SKU quantity, turnover rate, and budget to determine whether it is suitable to introduce a narrow aisle shelving system.

  The installation and maintenance of narrow aisle shelves require the involvement of a professional team. During the installation process, a laser level must be used to calibrate the verticality of the column, with an error controlled within millimeters, and all bolt connections must be tightened to the specified torque. In daily use, it is necessary to regularly check whether the anti-collision foot protection of the column is intact to prevent structural deformation caused by forklift collisions. It is recommended to conduct a comprehensive safety inspection every six months, with a focus on monitoring the deflection of beams, verticality of columns, and ground settlement. If any component deformation or loose connection is found, it should be immediately stopped from use and repaired. Proper maintenance can not only extend the service life of narrow aisle shelves, but also ensure the safety of personnel and goods in warehousing operations, avoiding unexpected downtime losses caused by equipment failures.
