Heavy duty cantilever shelving, steel structure storage, long strip material storage rack, customizable layer height

Description :

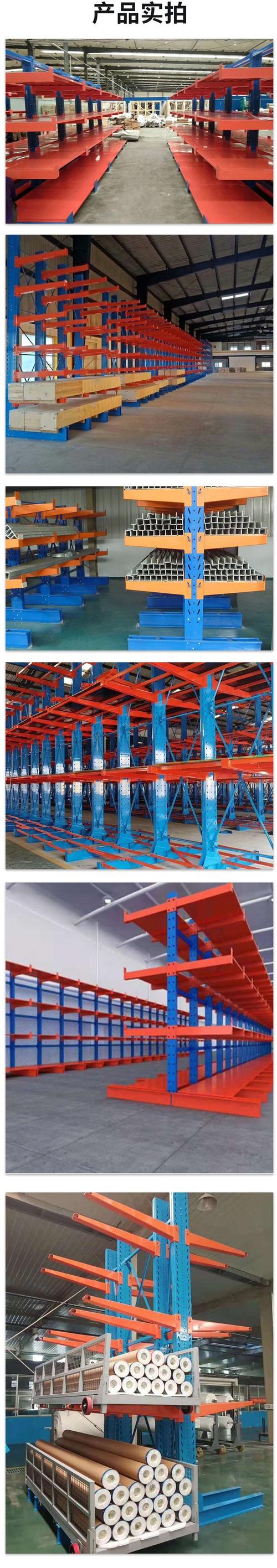

  Cantilever shelves are storage equipment specifically designed for storing long, circular, or irregularly shaped goods. It uses cantilever beams installed on the columns to carry goods, solving the pain point of traditional crossbeam shelves that cannot effectively utilize space to store materials such as pipes, profiles, and plates. This structural design makes forklift operations more flexible and efficient, especially suitable for industries such as machinery manufacturing, building materials supermarkets, and wood processing. The cantilever shelving structure provided by Shandong Gu'anjie Storage Equipment Co., Ltd. is stable and has strong load-bearing capacity, which can significantly improve the space utilization and management efficiency of the warehouse.

  This cantilever rack mainly uses Q235B high-quality cold-rolled steel strip or H-beam as the column material, which has undergone shot blasting and electrostatic spraying treatment, and has excellent anti-corrosion and rust prevention performance. Cantilevers are usually made of square tubes, rectangular tubes, or cold-formed steel, and are connected to columns through plugs or bolts to ensure structural stability. The standard column height is usually between 2 meters and 6 meters, and the single arm bearing capacity can be designed according to demand, ranging from 500kg to 2000kg. The overall structure complies with the general technical specifications for domestic storage shelves, and the size can be customized according to the actual layout of the warehouse to meet the storage needs of different specifications of goods.

  When selecting, it is important to consider the length, weight, and storage density of the goods. For pipes or profiles with a length exceeding 4 meters, it is recommended to use double-sided cantilever shelves to maximize space utilization; If the warehouse width is limited or only requires single-sided access, choose single-sided cantilever shelves. It should be noted that cantilevered shelves are not suitable for storing bulk small items or standardized palletized goods. In such cases, priority should be given to crossbeam shelves or shelf shelves. In addition, the width of the passage should be determined based on the turning radius of the forklift. It is generally recommended that the width of the passage be 200mm-300mm larger than the minimum turning radius of the forklift to ensure safe and smooth operation.

  When installing cantilever shelves, it is necessary to ensure that the ground is flat and solid. If necessary, expansion bolts should be used to fix the column base to the ground to prevent overturning. In daily use, the connection between the cantilever and the column should be regularly checked for looseness, and any deformation or cracks should be replaced in a timely manner. Overloading is strictly prohibited. Goods should be evenly placed on the cantilever to avoid concentrated loads causing bending and deformation of the cantilever. It is recommended to conduct a comprehensive safety inspection once a year, including verticality correction and coating damage repair, to extend the service life of cantilevered shelves and ensure the safety of storage operations.
