Electric telescopic plate frame, heavy-duty steel plate storage rack, intelligent warehousing solution

Description :

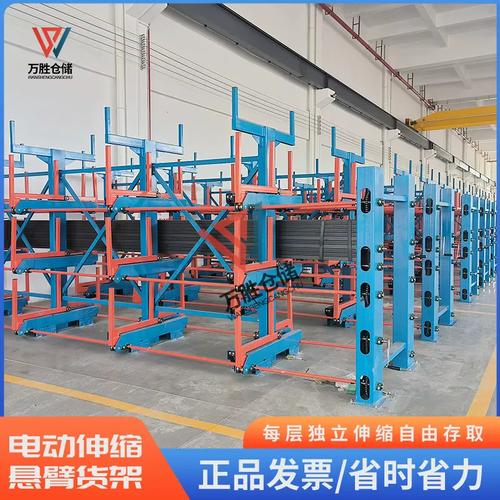

  Electric telescopic plate rack is an intelligent storage equipment designed specifically for long and heavy plates. It mainly solves the problems of low space utilization, difficult access, and high safety hazards when storing steel plates, aluminum plates, and profiles on traditional shelves. This device drives the cantilever beam to expand and retract through a motor, achieving precise positioning and storage of goods. It is particularly suitable for typical working conditions such as steel trade, mechanical processing, and automotive parts manufacturing that require a large amount of storage of metal sheets. Its core advantage lies in the ability to significantly reduce the occupied area of channels, increase warehouse space utilization by more than 50%, and cooperate with crane or forklift operations to greatly reduce manual handling intensity and improve logistics turnover efficiency. It is an indispensable key component of modern intelligent warehousing systems.

  In terms of specifications and processes, electric telescopic plate frames usually use high-strength Q235B or Q345B high-quality steel as the main structural material, ensuring structural stability and safety when carrying several tons or even tens of tons of goods. Surface treatment often involves spraying epoxy powder or electrostatic spraying after shot blasting and rust removal, which has good anti-corrosion and anti rust properties and is suitable for various industrial environments. The implementation standards refer to the JB/T series storage rack technical specifications and relevant national steel structure design standards. Key components such as motors, reducers, chains, or gear rack transmission systems are all made of industrial grade durable components. The common load-bearing range varies depending on the number of layers and the length of the cantilever. Single layer load-bearing can reach 1-5 tons, and the overall height is usually between 2-6 meters. The specific dimensions can be customized and designed according to the actual height of the warehouse and the specifications of the goods.

  When selecting, it is important to consider the actual available height of the warehouse, the load-bearing capacity of the ground, as well as the size specifications (length, width, thickness) and individual weight of the boards to be stored. For ultra long boards with a length exceeding 6 meters, it is recommended to use a multi column support structure to enhance stability; If the warehouse height is limited, a low center of gravity design or a double-layer structure can be chosen. Compared with ordinary crossbeam shelves, the advantage of electric telescopic panel racks is that there is no need to reserve a wide forklift passage, and the cantilever can be extended for access, greatly saving passage area; However, compared to automated stereoscopic warehouses, its initial investment cost is lower and maintenance is easier. Not applicable scenarios include highly corrosive chemical environments or high humidity outdoor environments without moisture-proof treatment, in which case special anti-corrosion coatings or protective facilities need to be added.

  Before installing the electric telescopic panel frame, it is necessary to ensure that the ground flatness meets the design requirements. If necessary, steel bottom plates or concrete foundations should be laid to distribute the load. In daily use, it is necessary to regularly check whether the motor operation sound is normal, the lubrication condition of the chain or gear, and the sensitivity of the limit switch to prevent goods from falling due to mechanical failure. It is recommended to conduct a comprehensive inspection of the main structure every six months to check for cracks in the welds and deformation of the columns. Common faults such as motor overheating or failure to operate are often caused by overload protection triggering or power phase loss, and require professional electricians to troubleshoot the circuit. Operators should undergo specialized training and strictly follow the operating procedures of "arm extension first, lifting later" or "arm lowering first, arm retraction later" to ensure human-machine safety.
