Industrial grade high and low voltage complete distribution cabinet Yunnan Patriotic Electric customized power equipment

Description :

  The complete set of high and low voltage distribution cabinets is the core equipment used for energy distribution, control, and protection in the power system, mainly solving the problems of voltage level conversion and circuit safety control in industrial and civil buildings. This device is suitable for power plants, substations, industrial and mining enterprises, and high-rise buildings' distribution systems, and can achieve centralized management of high-voltage incoming lines, transformer outgoing lines, and low-voltage loads. Typical operating conditions include the transmission of electrical energy on the high voltage side with a rated voltage of 10kV or below and the low voltage side with a rated voltage of 400V, ensuring stable operation of the power grid and preventing damage to backend equipment caused by overload, short circuit, and other faults. It is an indispensable component of modern power infrastructure.

  This type of high and low voltage complete distribution cabinet usually uses high-quality cold-rolled steel plates or aluminum zinc coated plates as cabinet materials, which are processed through CNC bending, welding, and electrostatic spraying processes, with protection levels ranging from IP30 to IP54, to meet different environmental requirements. The layout of internal components follows IEC and GB standards, such as GB7251.1 "Low Voltage Switchgear and Control Equipment" series standards, to ensure that electrical clearances and creepage distances comply with safety regulations. Common configurations include circuit breakers, isolating switches, current transformers, lightning arresters, and intelligent instruments, supporting modular design for easy expansion and maintenance. The cabinet structure has high strength, good seismic performance, and can withstand certain mechanical and thermal stresses, ensuring long-term reliability during operation.

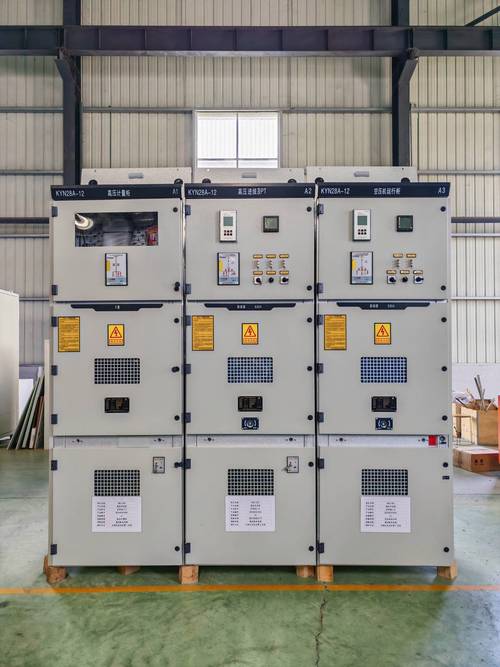

  When selecting a complete set of high and low voltage distribution cabinets, it is necessary to clarify key parameters such as system voltage level, rated current, short-circuit breaking capacity, and protection level. Common types of high-voltage cabinets include KYN28 mid mounted cabinets, XGN ring main units, etc., while low-voltage cabinets have drawer or fixed structures such as GCS, GCK, MNS, etc. If the scene is the main power distribution of a large factory, it is recommended to choose drawer type cabinets with high breaking capacity and good heat dissipation performance; If it is a small substation or terminal distribution, fixed cabinet type is more cost-effective. Attention should be paid to distinguishing between indoor and outdoor types, with additional consideration given to rain, dust, and temperature control measures for outdoor types. For scenarios with special harmonic control or reactive power compensation requirements, corresponding filtering capacitor cabinets or SVG devices should be selected to avoid directly applying standard cabinet types that may result in energy efficiency non-compliance.

  Before installing the complete set of high and low voltage distribution cabinets, it is necessary to ensure that the levelness error of the foundation channel steel is within the allowable range, and check whether the grounding system is reliably connected. The grounding resistance is usually required to be less than 4 ohms. In daily maintenance, the dust inside the cabinet should be regularly cleaned, the connection of the busbar should be checked for overheating and discoloration, and loose screws should be tightened to prevent accidents caused by poor contact. It is recommended to conduct an insulation resistance test every six months to verify the insulation performance of cables and components. Common faults such as circuit breaker refusal or misoperation are often caused by loose secondary circuit wiring or drift of relay setting values, and need to be investigated in conjunction with the records of the comprehensive protection device. Keeping the cabinet dry and ventilated to avoid condensation and insulation degradation is a key measure to extend the service life of high and low voltage distribution cabinets.
