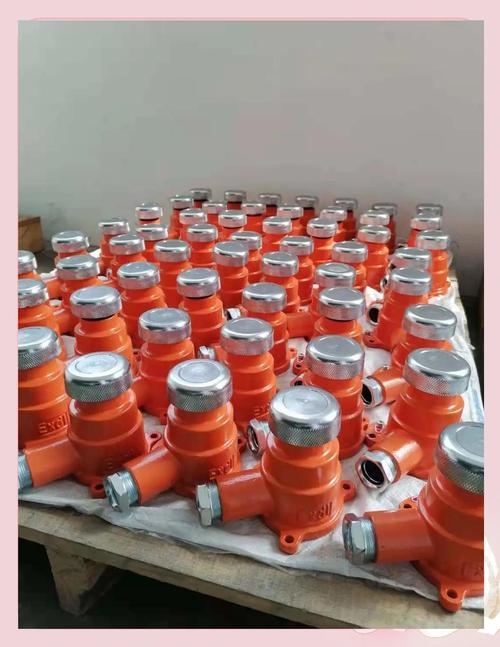

KHJ0.5/12 mining intrinsic safety emergency stop switch

Description :

  The KHJ0.5/12 intrinsically safe emergency stop switch for mining is a safety protection device designed specifically for harsh environments underground in coal mines. It is mainly used for emergency stop control of transportation equipment such as belt conveyors and scraper conveyors. The core function of this device is to quickly cut off the control circuit through manual triggering or automatic induction in case of emergency situations such as personnel injury, equipment failure, or material blockage, so as to immediately stop the operation of the equipment and avoid the expansion of accidents. Its inherently safe circuit design ensures that no electric sparks are generated when used in flammable and explosive gas and coal dust environments, ensuring the safety of underground operations. Typical working conditions include high humidity, high dust, and coal mine tunnels with explosive gas mixtures.

  The KHJ0.5/12 intrinsically safe emergency stop switch for mining is manufactured according to strict explosion-proof standards. The housing is usually made of high-strength engineering plastic or cast aluminum alloy material, which has excellent impact resistance, corrosion resistance, dust and waterproof performance. The protection level usually reaches IP65 or above. In terms of electrical parameters, its rated operating voltage is generally 12V or determined according to the supporting system, and the contact capacity needs to meet the requirements of intrinsic safety circuits to ensure the stability and reliability of signal transmission. The execution standard complies with the national standard GB3836 series for electrical equipment used in explosive environments and relevant specifications of the MT/T coal mining industry. The internal circuit has undergone strict intrinsic safety parameter matching testing to ensure that the energy release is below the ignition threshold in the event of a fault, and to meet the stability requirements for long-term continuous operation underground.

  When selecting the KHJ0.5/12 intrinsically safe emergency stop switch for mining, it is important to consider the compatibility between the installation location and the control system. This switch is suitable for situations that require remote emergency stop control and is often used in conjunction with the belt conveyor comprehensive protection device. If there is strong electromagnetic interference on site, a model with better shielding performance should be selected; If the installation space is limited, attention should be paid to whether the external dimensions and wiring methods are convenient for wiring. Compared with ordinary non intrinsic safety switches, KHJ0.5/12 strictly prohibits direct connection to non intrinsic safety power sources and must be connected through safety barriers or to intrinsic safety related equipment. When purchasing, it is necessary to confirm whether the explosion-proof mark Exib I Mb is clear and whether there is a valid mining product safety mark certificate (MA certification) to ensure compliance with the well entry requirements.

  The installation of KHJ0.5/12 intrinsically safe emergency stop switch for mining should be fixed in a position that is easy to operate and has a wide field of view, usually set at regular intervals along the belt conveyor. In daily maintenance, it is necessary to regularly check whether the sealing components of the shell are aging, whether the button reset is flexible, and whether the wiring terminals are loose or oxidized. Common faults include poor contact of contacts causing the shutdown signal to not be sent, or mechanical structure jamming causing the inability to reset. In this case, dust should be cleaned and damaged parts replaced. It is recommended to conduct functional testing once every quarter to simulate emergency shutdown actions, verify the response time of signal transmission to the control host, ensure immediate effectiveness in case of emergencies, extend equipment service life, and ensure production safety.
