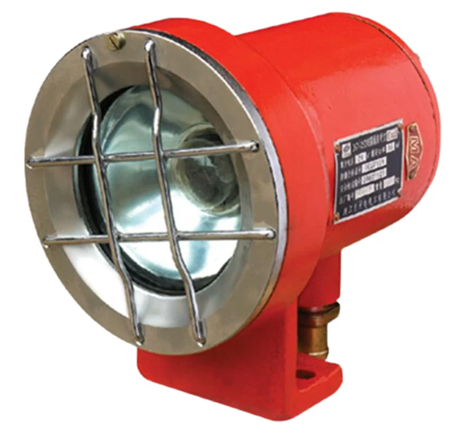

DGY18/48L (A) Mining Explosion proof LED Machine Lamp Explosion proof Lighting Fixture

Description :

  DGY18/48L (A) mining explosion-proof LED machine light is a specialized explosion-proof lighting device designed for mobile equipment such as underground electric locomotives and mining electric locomotives in coal mines. The explosion-proof LED machine light for this mine mainly solves the problems of insufficient lighting and easy damage to the lighting caused by dim lighting, high vibration, and harsh environment in underground tunnels, ensuring clear vision and safe operation for locomotive drivers during driving. Typical working conditions include hazardous environments such as underground transportation tunnels in coal mines and mining area tunnels where gas and coal dust explosive gases are present. As a key security auxiliary facility, DGY18/48L (A) mining explosion-proof LED locomotive lights provide stable luminous flux through efficient LED light sources, ensuring effective illumination distance between the front and rear of the locomotive. It meets the strict requirements of mining safety regulations for mobile equipment lighting and is an indispensable safety component in the mine transportation system.

  The casing of DGY18/48L (A) mining explosion-proof LED locomotive lights is usually cast with high-strength aluminum alloy or stainless steel material, and the surface is treated with high-voltage electrostatic spraying, which has good anti-corrosion, rust proof and impact resistance performance. The core optical system adopts high-power LED chips, combined with professional light distribution lenses, to achieve the effect of beam concentration, long illumination distance, and no glare. In terms of electrical structure, the mining explosion-proof LED locomotive light is designed with an independent explosion-proof chamber, with power and light sources isolated, meeting the Ex d I Mb explosion-proof level requirements, and capable of withstanding internal explosive pressure without explosion transmission. The implementation standards follow the national standards of GB3836 series electrical equipment for explosive environments and relevant coal industry standards of MT. The common input voltage ranges from DC12V to DC127V and other mining DC voltage levels, which need to be matched according to the vehicle model. The protection level usually reaches IP65 or above to ensure normal operation in wet and high humidity environments.

  When selecting DGY18/48L (A) mining explosion-proof LED locomotive lights, the first thing to confirm is the voltage level of the locomotive power supply system, such as 12V, 24V, 48V, 90V or 127V DC. Voltage mismatch will cause the lights to burn out or not light up. Secondly, it is necessary to distinguish the installation position, whether it is used for locomotive headlights (high beam/low beam) or taillights/signal lights, and the light distribution angle and intensity requirements are different for different positions. Compared with ordinary industrial LED lights, DGY18/48L (A) mining explosion-proof LED locomotive lights must have effective explosion-proof shells and vibration resistant structural designs. Ordinary lamps are strictly prohibited from being used in underground explosive areas. If the locomotive is running at a fast speed or the tunnel is long, it is recommended to choose a model with higher luminous flux and longer irradiation distance; If space is limited, attention should be paid to the compatibility between the external dimensions of the lighting fixtures and the installation brackets to ensure stable installation and no interference with other components.

  When installing DGY18/48L (A) mining explosion-proof LED locomotive lights, it is necessary to ensure that the fastening bolts are tightened in place and the explosion-proof surface is clean and free of impurities to ensure effective explosion-proof performance. In daily maintenance, coal dust and oil stains on the surface of the lampshade should be regularly cleaned to avoid affecting the light transmittance and heat dissipation effect. Check if the cable entry device is loose to prevent short circuits caused by water or moisture ingress. Common faults include dim or flickering lights, which are often caused by poor circuit contact or aging of the drive power supply, and need to be promptly investigated and replaced. Given the strong corrosiveness of the underground environment, it is recommended to regularly inspect the condition of the anti-corrosion coating on the casing and promptly repair any damages found. Before reusing the mining explosion-proof LED machine lights that have been out of use for a long time, insulation resistance testing should be conducted to ensure electrical safety, extend the service life of DGY18/48L (A) mining explosion-proof LED machine lights, and maintain optimal lighting conditions.
