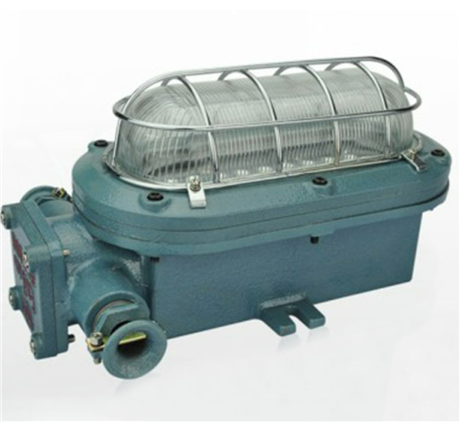

DGC41/127LA Explosion proof LED bracket lamp for underground roadway lighting fixtures in coal mines

Description :

  DGC41/127LA coal mine explosion-proof LED bracket light is a fixed lighting equipment designed specifically for harsh environments underground in coal mines. This product mainly solves the problems of dim lighting in underground tunnels, chambers, and working faces, short lifespan of traditional lighting fixtures, and frequent maintenance. By using efficient LED light sources and explosion-proof shell structures, safe operation is ensured in hazardous areas containing explosive mixtures of gases such as methane and coal dust. Typical working conditions include the main transportation roadway, return airway, coal mining face, and various mechanical and electrical chambers underground in coal mines, providing a stable and high color rendering visual environment for operators to ensure production safety and efficiency.

  DGC41/127LA coal mine explosion-proof LED bracket lights strictly comply with the GB3836 series electrical equipment standards for explosive environments. The shell is usually formed by high-strength aluminum alloy die-casting, and the surface is treated with high-voltage electrostatic spraying, which has excellent anti-corrosion, rust proof, and impact resistance properties. The internal LED module adopts constant current driving technology, effectively suppressing current fluctuations and extending the lifespan of the light source. The protection level of lighting fixtures usually reaches IP65 or above, which can prevent dust from entering and water sprayed from all directions from entering. The electrical interface is sealed with an introduction device to ensure the integrity of the explosion-proof joint surface. The working voltage is suitable for the common 127V AC power supply underground, with high light efficiency and low heat generation, which meets the requirements of mining product safety mark certification.

  When selecting DGC41/127LA explosion-proof LED bracket lights for coal mines, it is important to confirm the gas level and spatial dimensions of the installation environment. This lamp is suitable for areas that require long-term continuous lighting and have strict requirements for explosion-proof rating. Compared with ordinary mining fluorescent lamps, LED bracket lamps start without delay, flicker, and can still light up normally in low temperature environments. If there is severe vibration or frequent movement required at the installation location, it is necessary to check whether the fastening method of the bracket matches. For ordinary mine areas with non explosive environments, although they can be used, the cost is relatively high. It is recommended to choose according to the actual safety zoning. Pay attention to distinguishing between intrinsic safety and explosion-proof applications. This model is explosion-proof and is strictly prohibited from being used in unauthorized hazardous areas beyond specifications.

  When installing explosion-proof LED bracket lights for DGC41/127LA coal mines, it is necessary to ensure reliable grounding, and the grounding terminal of the shell should be effectively connected to the underground grounding grid. The installation angle can be adjusted according to the direction of the tunnel to maximize the coverage of lighting. In daily maintenance, coal dust and oil stains on the surface of the lighting fixtures should be regularly cleaned, and the transparent cover should be kept clean to avoid affecting heat dissipation and luminous flux. Check whether the sealing ring of the introduction device is aging and whether the bolts are loose, to ensure that the explosion-proof performance does not fail. Common faults include light source attenuation or damage to the driving power supply. During maintenance, the power must be cut off and the cover must be opened in a safe area. Live maintenance is strictly prohibited. Establish regular inspection records, promptly replace damaged components, and ensure continuous and stable operation.
