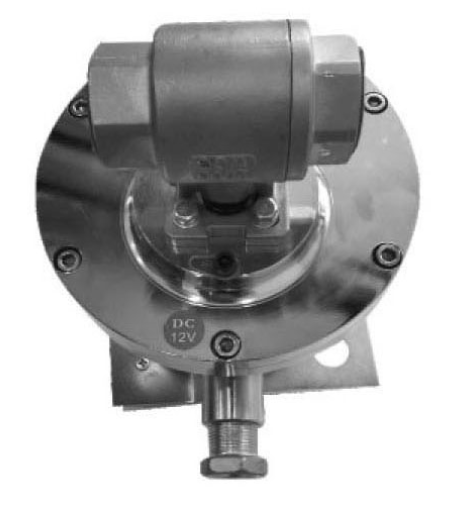

DFB mining explosion-proof electric ball valve, specialized explosion-proof electric control valve for underground gas environment in coal mines

Description :

  DFB mining explosion-proof electric ball valve is a fluid control equipment designed specifically for explosive hazardous environments such as methane and coal dust in coal mines. This valve drives the ball to rotate 90 degrees through an electric actuator, achieving rapid cutting or connection of pipeline media, effectively solving the problems of difficult manual operation and slow response speed in high-pressure water pipes, grouting pipes, and emulsion pipelines underground. Its core advantage lies in its high-level explosion-proof performance, which can prevent ignition of the external environment in the event of an internal explosion, ensuring the safe and stable operation of the system under harsh working conditions. It is a key executing component of modern mine automation drainage, compressed air, and water supply rescue systems.

  The main structure of the DFB mining explosion-proof electric ball valve is usually made of high-strength cast steel or stainless steel material, and the valve body is precision machined to ensure the flatness and wear resistance of the sealing surface. The casing of the actuator complies with the standards of GB3836.1-2010 "Explosive Atmosphere Part 1: General Requirements for Equipment" and GB3836.2-2010 "Explosive Atmosphere Part 2: Equipment Protected by Explosion proof Enclosures". The protection level usually reaches IP65 or above, which can effectively prevent dust intrusion and high-pressure water column impact. The electrical interface adopts a standard explosion-proof introduction device, with a built-in travel switch and torque limiting mechanism to ensure that the valve automatically cuts off the motor power supply after it is in place, preventing overload damage. The common working pressure range covers 1.6MPa to 10MPa, suitable for different well depths and pipeline pressure requirements.

  When selecting DFB mining explosion-proof electric ball valves, it is necessary to focus on confirming the type of pipeline medium (water, emulsion, mortar, etc.), working temperature range, and installation space size. Compared with ordinary industrial electric ball valves, this product must have a valid coal mine product safety mark certificate (MA certification), and excessive configuration in ordinary ground factory environments without gas explosion hazards is strictly prohibited, resulting in cost waste. It is also strictly prohibited to use ordinary electric ball valves in underground explosion-proof areas. If the medium contains large particle impurities, it is recommended to install a filter at the front end to prevent hard particles from jamming the ball and causing motor blockage. For long-distance transportation pipelines, it is necessary to calculate the voltage drop to ensure that the terminal voltage meets the starting torque requirements of the electric actuator.

  The installation of DFB mining explosion-proof electric ball valve should follow the horizontal or vertical installation specifications, with the actuator facing upwards or sideways to avoid water accumulation and corrosion of the electrical chamber caused by downward installation. Daily maintenance requires regular inspection of the valve stem packing box for leaks, tightening of flange connection bolts, and cleaning of coal dust accumulation on the surface of the actuator housing to ensure effective heat dissipation. Common faults include motor failure, valve internal or external leakage. When troubleshooting, first check whether the control circuit voltage is normal, and then manually test whether the handwheel is flexible. If the handwheel is stuck, it needs to be disassembled and cleaned of foreign objects inside the valve chamber. When it is not in use for a long time, a full open and full close action should be performed once a month to prevent aging and adhesion of the seals and ensure quick response in emergency situations.
