Intelligent Monitoring and Fault Diagnosis of ZLZB/ZDGZ Series High Voltage Distribution Integrated Protector

Description :

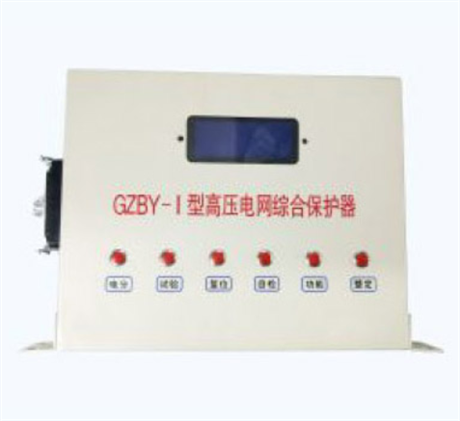

  The ZLZB/ZDGZ series comprehensive protector for high-voltage distribution equipment is a core secondary control device designed specifically for 6-10kV high-voltage switchgear. It mainly solves the problems of low accuracy, single function, and difficult fault diagnosis of traditional relay protection. The comprehensive protector of this high-voltage distribution device integrates measurement, control, protection, and communication, and is suitable for industrial scenarios such as mining, chemical, and power that require extremely high reliability of power supply. It can monitor the status of the line in real time and quickly cut off the power supply in case of overcurrent, quick break, grounding, and other faults, ensuring the safe operation of the power grid.

  The comprehensive protector of the high-voltage distribution device adopts a high-performance microprocessor with high-precision data acquisition capability. The current measurement error is usually controlled within ± 0.5%, and the voltage measurement error is within ± 0.5%. The product complies with national standards such as GB/T 14598, supports RS485 communication interface, is compatible with Modbus RTU protocol, and is easy to access the backend monitoring system. The shell is usually made of flame-retardant ABS or metal material, with good electromagnetic compatibility (EMC) and anti-interference ability. It has a wide working temperature range and is suitable for environments ranging from -10 ℃ to+55 ℃, ensuring stable operation under harsh working conditions.

  When selecting, it is necessary to distinguish the specific application scenarios of ZLZB and ZDGZ. ZLZB series usually focuses on general high-voltage line protection, while ZDGZ series may optimize explosion-proof or seismic performance for specific industrial and mining environments. The purchaser needs to confirm the primary rated current, secondary rated current (usually 5A or 1A), and control power supply voltage (AC/DC 110V or 220V). If there is strong magnetic field interference or high humidity environment on site, a comprehensive protector for high-voltage distribution equipment with higher protection level and reinforced insulation design should be selected to avoid misoperation or refusal to operate.

  When installing a comprehensive protector for high-voltage distribution equipment, attention should be paid to the tightening torque of the wiring terminals to prevent overheating and burning due to poor contact. In daily maintenance, it is necessary to regularly check whether the display status indicator light is normal, clean the dust in the heat dissipation hole, and verify the clock synchronization function to ensure the accuracy of fault recording data. Common faults include communication interruption, abnormal sampling data, etc., which can be investigated by checking the grounding of the communication line shielding layer and the polarity of the transformer. Regularly using relay protection testers for action value verification is a key measure to maintain the long-term reliable operation of comprehensive protectors in high-voltage distribution equipment.
