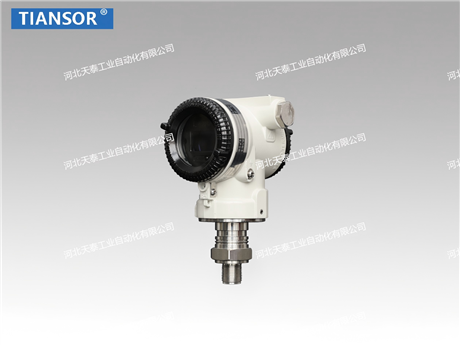

Pressure transmitter
Category:
Instrumentation/transmitter /Pressure transmitter
Model:
TS218-TG
Brand:
Hebei Tiantai Industrial Automation Co., Ltd
measurement range:
0～600Pa...40MPa
Working Voltage:
14.5V~36V DC
output signal:
4-20mA/HART communication protocol, Profibus PA communication protocol RS485
Accuracy:
± 0.05%, ± 0.075%, ± 0.1%, ± 0.2% upper range limit
Display:
LCD、OLED
Pressure interface:
threaded connection
Operating Temperature:
-40℃~ 80℃
Explosion-proof type:
Explosion proof type, intrinsic safety type
Retail Price
45,612,000.00USD
重量
kg
- Product Description
-
measurement range 0～600Pa...40MPa
Working Voltage 14.5V~36V DC
output signal 4-20mA/HART communication protocol, Profibus PA communication protocol RS485
Accuracy ± 0.05%, ± 0.075%, ± 0.1%, ± 0.2% upper range limit
Display LCD、OLED
Pressure interface threaded connection
Operating Temperature -40℃~ 80℃
Explosion-proof type Explosion proof type, intrinsic safety type
Description :
The TS218 series intelligent pressure transmitter uses high-precision monocrystalline silicon sensors as the core measuring element, combined with digital AD acquisition technology and advanced digital temperature compensation and nonlinear correction technology to ensure accurate and stable measurement. The product has built-in intelligent anti-interference circuit and multi-level protection design, supports HART protocol, and achieves efficient data exchange. Equipped with five OLED/LCD display screens, supporting percentage indication, over 20 unit switching, and dual variable alternating display, coupled with three button on-site debugging function, the operation is convenient and flexible. Through strict screening of semi-finished and finished products, the product has excellent reliability and environmental adaptability, can operate stably at extreme temperatures of -40~80 ℃, and meets the requirements of ExdIICT6Gb/ExiaICT6Ga explosion-proof and IP67 protection level. It is widely used in industrial fields such as petroleum, chemical, metallurgy, power, shipbuilding, etc., especially suitable for high-risk explosive environments.
Product application:
Petroleum, chemical, metallurgy, and electricity
• Power plants, pharmaceuticals • Machinery manufacturing
• Hydraulic and Pneumatic Control • Urban Natural Gas
