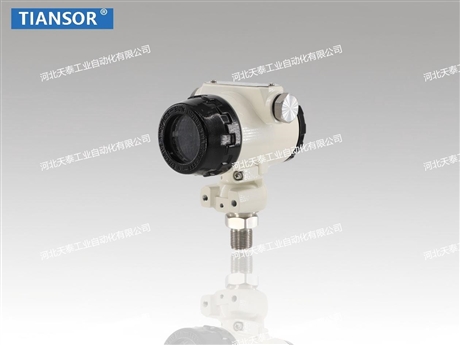

Pressure transmitter 1
Category:
Instrumentation/transmitter /Pressure transmitter
Model:
TS208-F
Brand:
Hebei Tiantai Industrial Automation Co., Ltd
measurement range:
-100KPa…0～10KPa…100MPa
Working Voltage:
9~32V DC
output signal:
4~20mA, 4~20mA/HART communication protocol RS485 、0~10V 、0~5V
Accuracy:
± 0.2%, ± 0.5% upper range limit
Display:
LCD、LED
Pressure interface:
Threaded connection, chuck
Operating Temperature:
-40℃~ 80℃
Explosion-proof type:
Explosion proof type, intrinsic safety type
Retail Price
45,612,000.00USD
重量
kg
- Product Description
-
measurement range -100KPa…0～10KPa…100MPa
Working Voltage 9~32V DC
output signal 4~20mA, 4~20mA/HART communication protocol RS485 、0~10V 、0~5V
Accuracy ± 0.2%, ± 0.5% upper range limit
Display LCD、LED
Pressure interface Threaded connection, chuck
Operating Temperature -40℃~ 80℃
Explosion-proof type Explosion proof type, intrinsic safety type
Description :
The TS208 series industrial pressure transmitter is a high-end industrial measuring equipment with dual explosion-proof certifications of intrinsic safety and explosion-proof, designed specifically for flammable, explosive, and complex industrial scenarios. Its core adopts piezoresistive sensors, combined with digital AD acquisition technology and intelligent temperature compensation algorithms, to provide high-precision signal output and ensure stability. Its intelligent circuit design includes anti-interference devices, multi-level protection circuits, and intrinsic safety circuits. And after strict semi-finished and finished product testing, aging screening, the performance is reliable, achieving high-precision measurement of ± 0.2% FS and long-term stability of ≤± 0.15% FS/year. The product has a built-in multifunctional display screen that can display pressure values, percentages, and bivariate data in real time, and supports more than 20 operational functions such as range migration, zero and frequency adjustment, and data recovery. The explosion-proof shell design with IP67 protection level, combined with wide temperature adaptability, can withstand high-risk environments such as petroleum and petrochemical, power, and mechanical manufacturing. The appearance is exquisite and compact, balancing functionality and industrial aesthetics.
Product application:
Petroleum, chemical, metallurgy, and electricity
• Power plants, pharmaceuticals • Machinery manufacturing
• Hydraulic and Pneumatic Control • Urban Natural Gas
