Dekun Hydraulic Servo Control Hydraulic Station with Touch Screen PLC Integrated Pump Station System

Description :

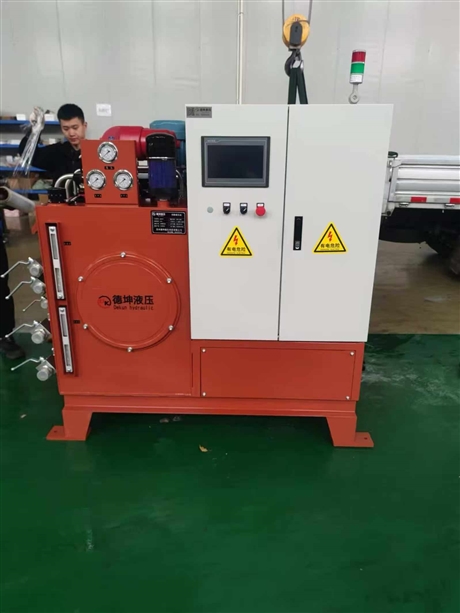

　　This is a servo controlled hydraulic station that integrates electrical control and hydraulic power units, mainly used to provide stable and accurate hydraulic power sources for industrial machinery. The device stores hydraulic oil and provides power output through the red oil tank component on the left, while the white electric control cabinet on the right is responsible for logical operations and command execution. Typical operating conditions include injection molding machine mold closing, press holding, testing machine loading, and other scenarios that require high-precision pressure or position control. Dekun Hydraulic Station solves the problems of low precision and slow response in traditional relay control, and is suitable for production lines with high requirements for automation.

　　The specification design of the hydraulic station follows the general industrial standards. The left oil tank adopts a carbon steel welded structure, with an orange anti rust paint sprayed on the surface. The front is equipped with a circular inspection port and multiple high-pressure outlet interfaces. A triple pressure gauge is installed on the top for real-time monitoring of system pressure, return oil pressure, and pump outlet pressure. The right electrical control cabinet is equipped with a touch screen display (HMI) and a PLC controller. The panel is equipped with an emergency stop button, indicator lights, and operation switches. The cabinet is labeled with a "Danger of Electricity" warning sign. The motor part is installed vertically and equipped with an air filter to prevent pollutants from entering the oil tank. The overall structure is compact and meets the general technical requirements of JB/T 7935 hydraulic components.

　　When selecting, the power and flow parameters of Dekun hydraulic station should be determined based on the load tonnage, action speed, and control accuracy requirements. If the working condition is only a simple telescopic action, a regular valve controlled hydraulic station can be used; If it involves multi cylinder synchronization, pressure closed-loop control, or complex action sequences, such servo or proportional control hydraulic stations with PLC and touch screen must be selected. Pay attention to distinguishing between separate systems and closed systems. The appearance of this equipment shows that it is a typical open cycle system, suitable for most medium and low pressure industrial applications, and not suitable for the aviation hydraulic field with extremely high speed or special medium requirements.

　　When installing the Dekun hydraulic station, it is necessary to ensure that the ground is flat and fixed with anchor bolts to prevent vibration and displacement. The hydraulic pipeline connections should be clean and free of impurities to avoid seal damage and oil leakage. The focus of daily maintenance is to monitor the hydraulic oil temperature and liquid level. It is recommended to replace the hydraulic oil and filter element every 2000 hours of operation, and regularly check whether the pressure gauge reading fluctuates abnormally. Common faults such as excessive noise are usually caused by clogged oil suction filters or misaligned couplings. If the pressure is unstable, it is necessary to check the overflow valve setting or servo valve feedback signal. Keeping the electrical control cabinet dry and ventilated can extend the service life of the PLC module.
