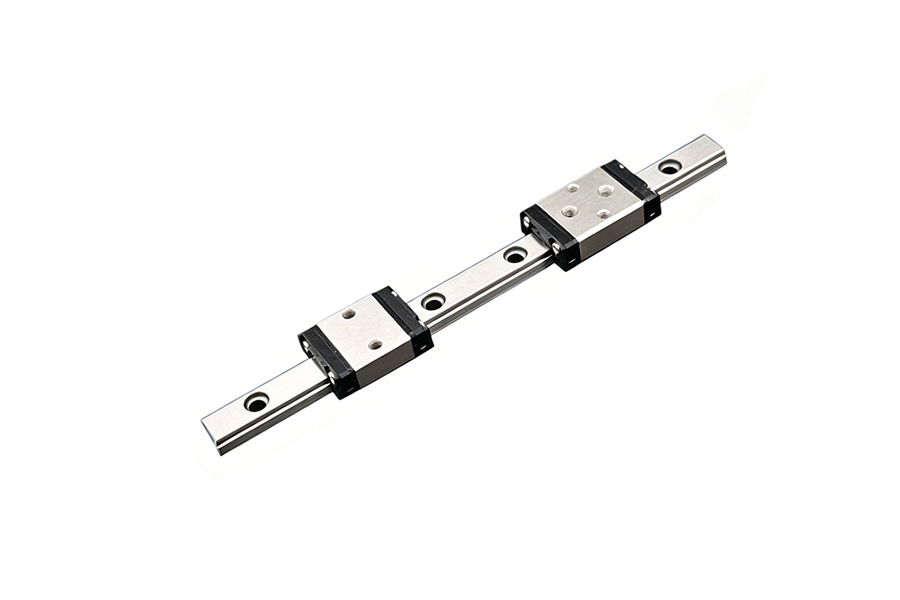

Davoxin DVN3 Miniature Standard Linear Guideway High Rigidity Silent Slide

Description :

The Dawoxin DVN3 miniature standard linear guide is a linear motion component designed specifically for small precision equipment, mainly to meet the needs of high-precision, low friction linear reciprocating motion in narrow spaces. It transforms sliding friction into rolling friction through the cyclic rolling of steel balls in the raceway, significantly reducing motion resistance and improving positioning accuracy. This miniature standard linear guide is typically used in semiconductor packaging, precision medical equipment, miniature robotic arms, and 3C automated assembly lines. It can withstand radial, reverse, and lateral loads while maintaining smooth and quiet motion, and is an indispensable core transmission component in miniaturized automated assembly.

The Dawoxin DVN3 miniature standard linear guide rail is made of high carbon chromium bearing steel and undergoes precision grinding and heat treatment processes to ensure that the raceway hardness reaches HRC58-62, with excellent wear resistance and impact resistance. Its structural design is compact, with a low cross-sectional height, complying with ISO or JIS related linear guide rail size standards. Common accuracy levels include P0, P1, P2, and preloading methods include light preloading, medium preloading, etc., to meet different rigidity requirements. The slider is equipped with dust-proof end caps and sealing plates inside, effectively preventing dust and chips from entering the raceway and extending its service life. The rated dynamic and static loads of this miniature standard linear guide have been rigorously tested to ensure stable geometric accuracy and repeat positioning accuracy during high-speed reciprocating motion.

When selecting the Dawoxin DVN3 miniature standard linear guide, it is important to consider the limitations of installation space, load size and direction, operating speed, and accuracy requirements. Suitable for occasions with light loads, limited space, and sensitivity to noise, such as desktop CNC machine tools, laser marking machine platforms, etc. If the working conditions involve heavy cutting, strong vibration, or high temperature environments, it is recommended to use conventional linear guides with larger cross-sections and stronger rigidity, rather than this micro series. When used in conjunction with ball screws, attention should be paid to parallelism calibration to avoid generating additional torque that may cause the slider to jam or shorten its lifespan. When comparing similar micro guide rails, the purchaser should pay attention to the matching degree of their raceway curvature radius and cage structure, which directly affects the smoothness and service life of operation.

Before installing the Dawoxin DVN3 miniature standard linear guide rail, it is necessary to clean the installation reference surface, remove burrs and oil stains, and ensure that the flatness and parallelism of the installation surface are within the allowable tolerance range. It is recommended to use specialized fixtures for alignment and fixation. When locking screws, they should be tightened in diagonal order in stages, and the torque should meet the requirements of the specification to avoid deformation of the slider. In daily maintenance, lithium based grease should be regularly replenished through the slider oil nozzle, usually every 100 kilometers or six months of operation, depending on the frequency of use and environmental cleanliness. If there is an increase in operating noise, jamming, or a decrease in accuracy, it is necessary to promptly check whether there are foreign objects embedded or damaged in the raceway. If necessary, replace the slider or the entire micro standard linear guide to ensure long-term stable operation of the equipment.
