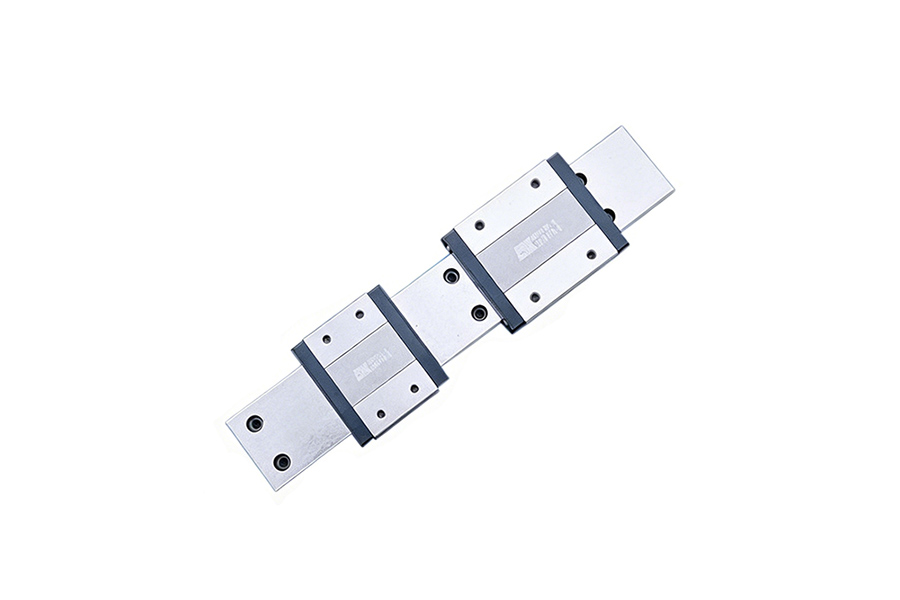

Dawoxin DVW15 Micro Wide Linear Guideway High Rigidity Silent Guideway Automation Equipment Linear Motion Parts

Description :

Davoxin DVW15 micro wide linear guide is a linear motion guiding component designed specifically for precision mechanical equipment, mainly solving the problem of high-precision and high load motion control in small spaces. This series of products optimizes the geometric structure of the raceway, significantly improving the radial and reverse rated loads while ensuring miniaturization. It is suitable for working scenarios such as semiconductor equipment, medical devices, 3C automation assembly lines, etc., where installation space is strictly limited and smooth operation is required. Its wide width design effectively enhances the anti torque capability, ensuring extremely high positioning accuracy and repeatability during high-speed reciprocating motion, making it an ideal choice to replace traditional ordinary guide rails.

The micro wide linear guide rail is made of high-quality bearing steel, which has undergone precision grinding and special heat treatment processes. The surface hardness reaches HRC58-62, and it has excellent wear resistance and deformation resistance. The DVW15 model is typically paired with a standard ball circulation system, which has a low coefficient of friction, low motion resistance, and can achieve smooth movement at the micrometer level. The product complies with ISO and JIS related linear guide manufacturing standards and undergoes strict dimensional and noise testing before leaving the factory. Its sealing structure design is reasonable, which can effectively prevent impurities such as dust and cutting fluid from entering the interior of the slider, extending its service life. In terms of installation size, it follows the industry standard for installation hole positions, which facilitates standardized selection for users when replacing or designing new equipment.

In the selection and application, the Dawoxin DVW15 micro wide linear guide rail is particularly suitable for equipment with medium load but compact structure requirements. Compared with ordinary narrow guide rails of the same size, its wide structure provides better lateral rigidity and is suitable for withstanding certain eccentric moments. If the application scenario involves extremely high vacuum environments or ultra clean rooms, it is necessary to confirm whether specialized dust covers or low dust lubricants are equipped; If the load far exceeds the fixed dynamic load, larger specifications such as DVW20 or DVW25 series should be considered. For situations where long-distance splicing is required, it is recommended to consult the manufacturer regarding the flatness treatment plan for the joint to avoid operational lag. This category is not suitable for environments with strong corrosive gases and without special surface treatment.

  When installing the Dawoxin DVW15 micro wide linear guide rail, it is necessary to ensure that the flatness and parallelism of the installation base surface are within the allowable tolerance range. It is usually recommended to use a dial gauge for calibration to avoid early failure due to uneven force on the slider caused by distortion of the reference surface. In daily maintenance, specialized lithium based grease should be regularly replenished, usually every 100 kilometers of operation or every 3-6 months, depending on the frequency of use and environmental cleanliness. Common faults such as increased operating noise or lagging are often caused by insufficient lubrication or foreign object intrusion. In this case, the track should be cleaned and re oiled. If the ball is found to have fallen off or the slider is loose, the use should be stopped immediately and the damaged parts should be replaced. It is strictly prohibited to operate with defects to ensure the machining accuracy and production safety of the entire equipment.
