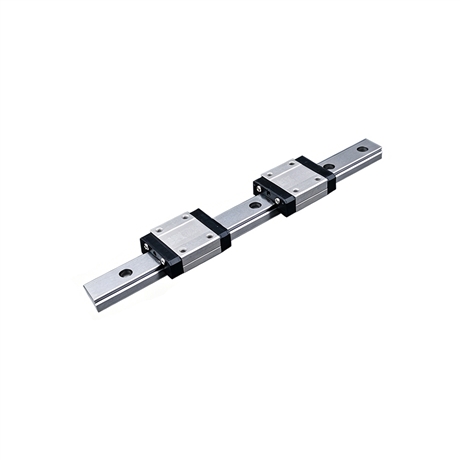

Davoxin DVN15H-N standard micro guide rail
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
DVN15H-N
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :

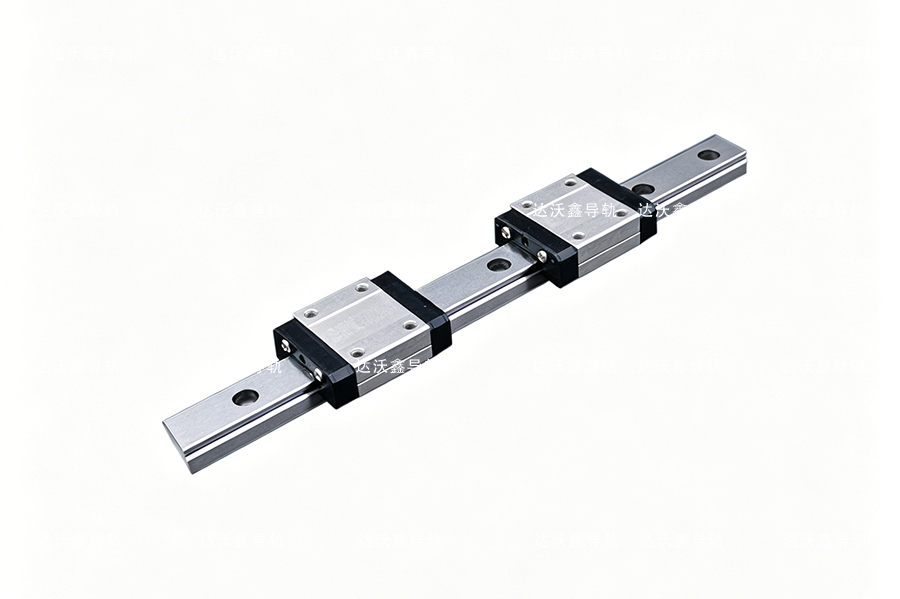

The DVN15H-N standard micro guide rail is a 15 specification standard micro linear guide rail (DVN standard series) produced by Davoxin. Its core positioning is high rigidity and high load selection for medium and large micro scenes, balancing small size and load capacity, and adapting to automated transmission mechanisms that require both space and accuracy.
1、 Structure and Performance Characteristics
Goethe style four point contact: The steel ball contacts the raceway at four equal points, which can evenly bear composite loads in multiple directions such as up and down, left and right, and overturning. It has strong rigidity and stable motion accuracy.
Extended slider high load: The H-extended slider design has a significantly higher static/dynamic rated load than the standard type (DVN15C), suitable for micro transmission scenarios from medium to heavy loads.
Full steel ball circulation system: equipped with precision retainers, smooth movement, low noise, long-term operation accuracy does not deteriorate, and has interchangeability (within allowable accuracy).
Special lubrication design: The slider is equipped with a built-in oil nozzle (different from the oil injection hole of small-sized micro rails), which makes lubrication and maintenance more convenient, and can quickly replenish grease to extend the service life.
Dust prevention and protection: Comes standard with oil scraper and sealing structure, effectively blocking dust and oil stains, suitable for dusty/clean environments.
Quality traceability: The Dawoxin DVN15H-N standard micro guide rail slider is engraved with the model, logo, and production batch number, and the entire process is traceable; Passed ISO9001 quality management system certification.
2、 Applicable scenarios
Precision automation equipment: semiconductor testing devices, medical analysis instruments, laboratory automation platforms.
Small heavy-duty transmission: 3C electronic assembly line, small robotic arm, dispensing/soldering equipment, precision positioning platform.
Medium to large scale micro scenes: industrial transmission mechanisms with limited space but high load and anti overturning properties (such as small machine tools and automated fixtures).
