Davoxin DVN9 Mini Standard Linear Guide
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
DVN9
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :

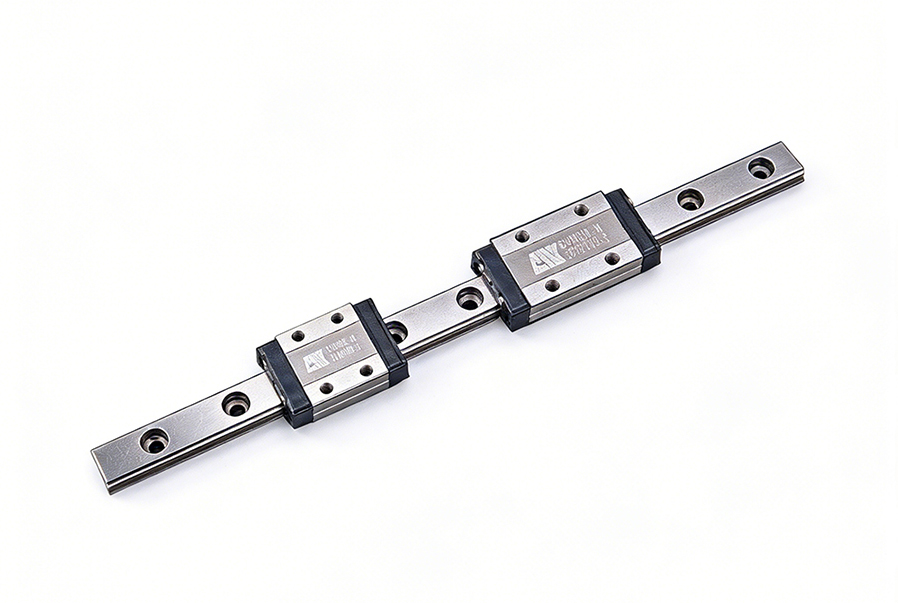

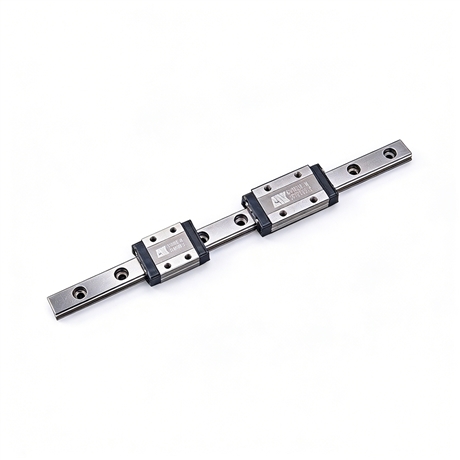

DVN9 is a 9mm standard micro linear guide produced by Dawoxin, belonging to the core series of DVN all steel ball micro guide rails. It focuses on compact and lightweight design, multi-directional load adaptation, and high stability transmission, and is suitable for linear motion scenarios of small precision equipment.
1、 Model and core specifications
Model definition: DVN (Dawoxin Micro Rail Series)+9 (Rail Width 9mm)+N (Standard Type)
Sliding block selection: including standard square (DVN9S), standard sliding block (DVN9C), and extended type (DVN9H), with consistent width and differentiated length, suitable for different installation space requirements
Slide size: standard pitch 20mm, standard end distance 7.5mm, standard length 1000mm, customizable length according to needs
Installation parameters: Bolt specification M3, standard locking torque 19kgf · cm, installation needs to adhere to the reference plane to ensure accuracy
Appearance dimensions: The shoulder height of the slide rail is 1.7mm, the shoulder height of the slider is 3mm, and the chamfer radius r1/r2 of the shoulder is both 0.3mm
Material options: alloy steel (universal wear-resistant), stainless steel (rust resistant and corrosion-resistant), suitable for different working conditions
2、 Structure and Performance
Core structure: Adopting the Goethe style four point contact design, it can withstand loads in multiple directions, including up, down, left, and right, balancing rigidity and stability; Built in steel ball retainer, smooth and low-noise operation, interchangeable within the precision range
Lubrication maintenance: Standard oil injection hole/nozzle design, convenient lubrication, can evenly cover the circulation circuit, improve walking smoothness and service life
Accuracy level: divided into three levels: ordinary level, advanced level, and precision level, which can be flexibly matched according to equipment accuracy requirements
Durability: Equipped with oil scraper, dustproof and durable, suitable for long-term stable working conditions
3、 Applicable scenarios
Widely used in semiconductor equipment, precision measuring instruments, medical equipment, 3C automation, small robots, IC assembly and other fields that require compact space, high accuracy and load stability.
