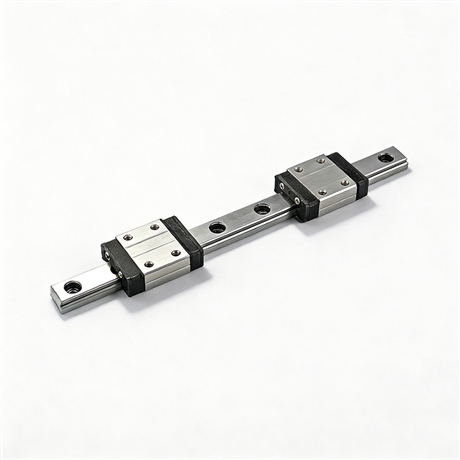

Davoxin DVN9C-N standard micro guide rail
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
DVN9C-N
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :

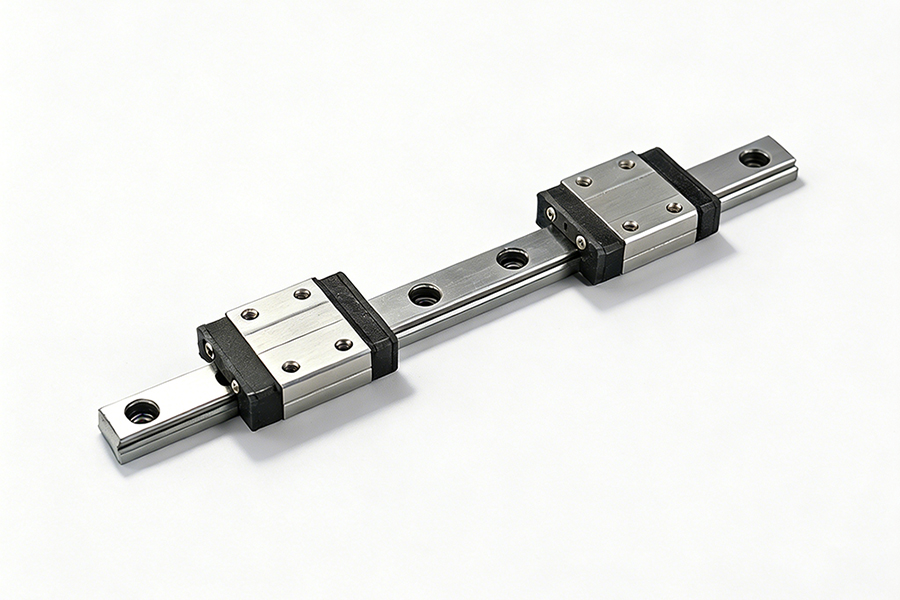

DVN9C-N is a 9mm standard micro linear guide produced by Davoxin, belonging to the DVN9 standard series. It focuses on compact and lightweight design with stable transmission, and is suitable for linear motion scenarios of small and medium-sized precision equipment.
1、 Model and core specifications
Model definition: DVN (Dawoxin Micro Rail)+9 (Rail width 9mm)+C (Standard length slider)+N (Standard width)
Sliding block: Standard short sliding block, printed with Dawoxin logo and production number for easy traceability and quality control
Sliding rail: width 9mm, standard pitch 15mm, standard end distance 5mm, standard length 1000mm
Combination dimensions: total height H ≈ 10.5mm, slider width W ≈ 20mm, slider thickness HR ≈ 6.0mm
Material: Optional alloy steel (universal wear-resistant) or stainless steel (rust resistant and corrosion-resistant)
2、 Structure and Performance
Contact structure: Goethe style four point contact design, capable of withstanding multi-directional loads up and down, left and right, with balanced rigidity and stability
Sports design: Built in steel ball retainer for smooth and low-noise operation; Comes with an oil injection hole (no oil nozzle), easy to lubricate and maintain, dust-proof and durable
Load parameters: Suitable for small and medium-sized precision loads, meeting conventional transmission requirements
Accuracy level: divided into three levels: ordinary level, advanced level, and precision level, and can be flexibly selected according to equipment accuracy requirements
Usage attribute: Non interchangeable design, it is recommended to purchase and use the entire set (slide rail+slider) to ensure assembly accuracy and operational stability
3、 Applicable scenarios
Widely used in small linear transmission mechanisms such as 3C automation, precision measuring instruments, medical equipment, semiconductor devices, small robots, electronic and electrical equipment that require space, accuracy, and stability.
