Davoxin DVN7C-N standard micro guide rail

Description :

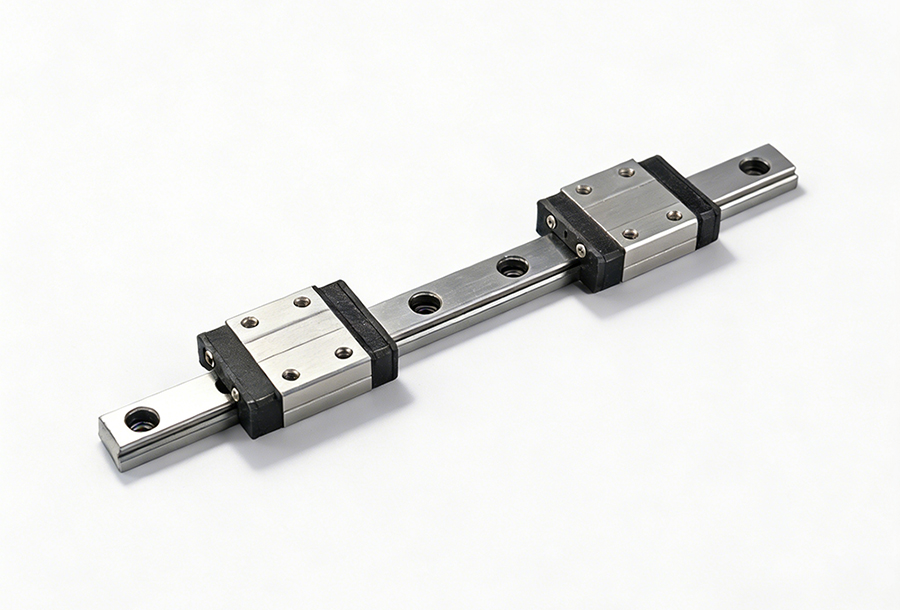

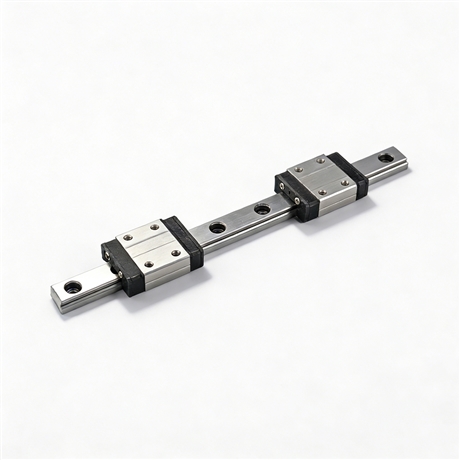

The DVN7C-N standard micro guide rail is a 7mm standard micro linear guide rail produced by Davoxin, belonging to the DVN7 standard series, focusing on compact, lightweight, precise and stable small linear transmission scenarios.

1、 Model and core specifications

Model meaning: DVN (Dawoxin standard micro rail)+7 (rail width 7mm)+C (standard length slider)+N (standard width)

Sliding block: Standard short sliding block, printed with Dawoxin logo and production number, compact size (C=8mm, L1=21.8mm, L=308mm)

Sliding rail: width 7mm, standard pitch 15mm, standard end pitch 5mm, standard length 1000mm

Combination size: total height H=8mm, slider width W=17mm, slider thickness HR=4.8mm

Material: Alloy steel (universal wear-resistant) or stainless steel (rust resistant and corrosion-resistant) optional

2、 Structure and Performance

Contact structure: Goethe style four point contact, capable of withstanding loads in all directions, including up, down, left, and right, with balanced rigidity and stability

Sports design: Built in steel ball retainer for smooth and low-noise operation; Equipped with standard oil injection holes and oil scraper blades, easy to maintain, dustproof and durable

Load parameters: basic dynamic rated load 0.98KN, basic static rated load 1.24KN, suitable for small and medium-sized precision loads

Accuracy level: divided into three levels: ordinary level, advanced level, and precision level, to meet the positioning needs of different equipment

Usage attribute: Non interchangeable design, it is recommended to purchase the entire set (slide rail+slider) for use

3、 Applicable scenarios

Suitable for small linear transmission mechanisms such as 3C automation, precision measuring instruments, medical equipment, semiconductor devices, small robots, optical equipment, etc. that require space, accuracy, and stability.
