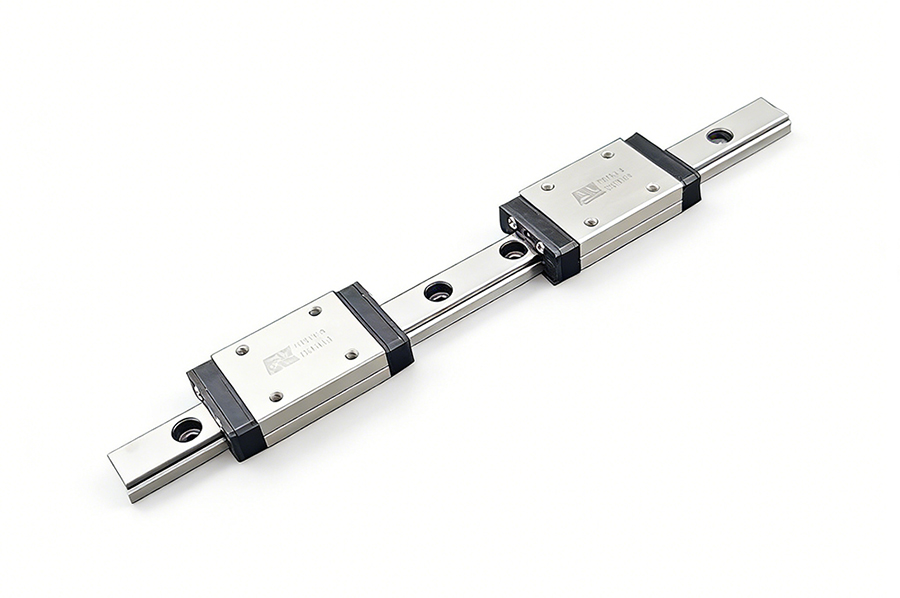

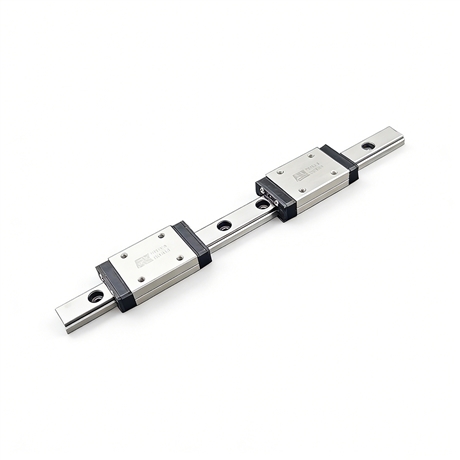

Davoxin DVN7H-N standard micro guide rail

Description :

The DVN7H-N standard micro guide rail is a 7mm level elongated slider standard micro guide rail produced by Davoxin. It belongs to the DVN7 core series and is designed for high load, high rigidity, and precision linear transmission scenarios.

1、 Specifications and Structure

Model definition: DVN7 (slide rail width 7mm)+H (extended slide)+N (standard width)

Sliding block features: elongated sliding block design, printed with Dawoxin logo and production number, dynamic/static rated load, allowable torque significantly better than the standard sliding block of the same specification (DVN7C-N)

Slide size: standard pitch 15mm, standard end pitch 5mm, standard length 1000mm

Material: Optional alloy steel (universal type) or stainless steel (rust resistant and corrosion-resistant)

Structure: Goethe style four point contact, capable of withstanding multi-directional loads; Equipped with a steel ball retainer for smooth and low-noise operation

2、 Accuracy and Performance

Accuracy level: ordinary level, advanced level, precision level (three levels are optional)

Design features: small size and lightweight, suitable for precision equipment; Equipped with oil injection holes and oil scraper blades, it is easy to lubricate and maintain, dustproof and durable

Usage attribute: Non interchangeable guide rail, it is recommended to purchase the entire set for use

3、 Applicable scenarios

Widely used in fields such as semiconductor equipment, precision measuring instruments, medical equipment, 3C automation, IC assembly, and small robots that require high positioning accuracy and load stability.
