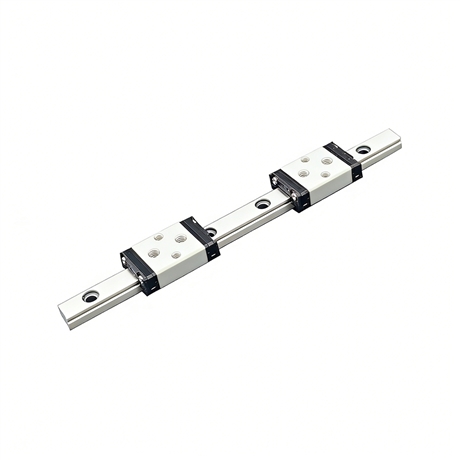

Davoxin DVN3H-N standard micro guide rail
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
DVN3H-N
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :

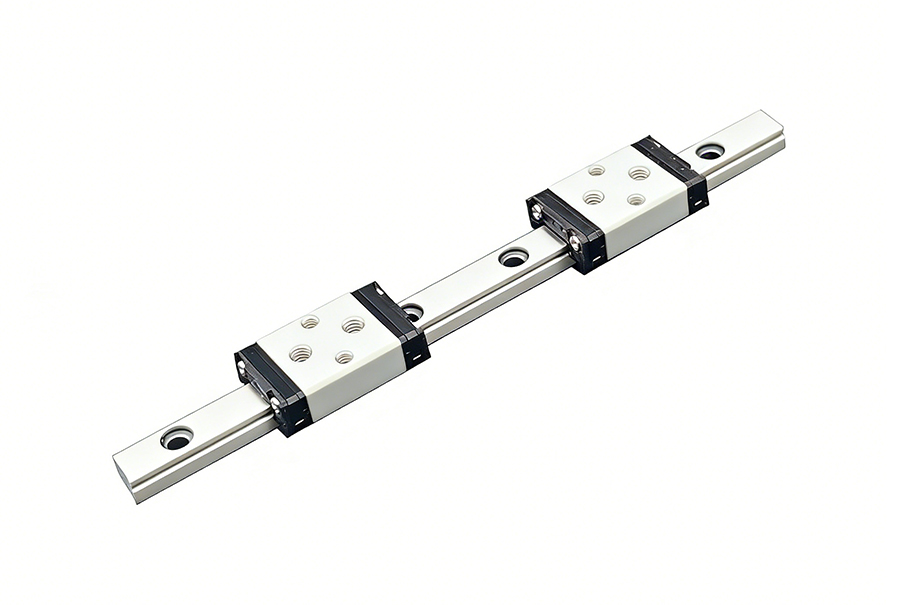

DVN3H-N standard micro guide rail is a small-sized standard micro guide rail independently produced by Dawoxin. It belongs to the DVN3 series and is positioned as a linear transmission component suitable for small precision equipment. With its compact structure and reliable performance, it is widely used in manufacturing subdivision scenarios and is one of the core specifications of Dawoxin's micro guide rail product line.
The core feature of this product is the use of an elongated slider design (where "H" in the model represents the elongated type). The longer slider design significantly improves its basic dynamic rated load, basic static rated load, and allowable static torque, resulting in better transmission stability. The slider is printed with the Dawoxin brand logo and exclusive production number for easy product traceability and quality control.
As a standard micro rail, DVN3H-N follows a unified standard size specification, with a rail width of 3mm (represented by "3" in the model), a standard pitch of 10mm, a standard end distance of 5mm, and a standard length of 300mm, which can meet the requirements of conventional precision transmission. The product material offers two options: stainless steel and alloy steel. The slider, steel ball, and retainer made of stainless steel are all made of stainless steel, which has excellent rust prevention properties and is suitable for use in multiple environments.
Applicable scenarios: various small linear sliding devices such as integrated circuits, semiconductor manufacturing equipment, printed circuit board IC assembly equipment, wafer handling robots, precision measuring instruments, and medical equipment.
