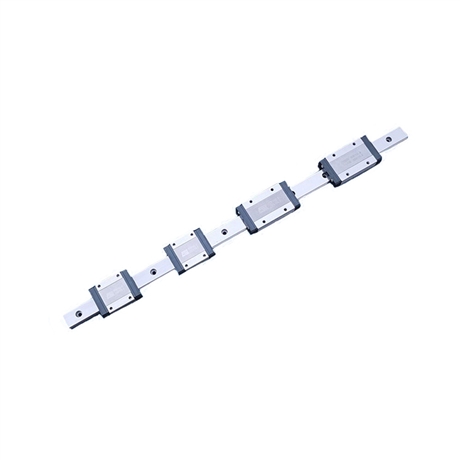

Davoxin DVN15 Micro Linear Guide
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
DVN15
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
The Dawoxin DVN15 micro linear guide is one of the larger specifications in the micro standard guide. Its structure is different from other micro linear guides, but its specifications are consistent with other micro guides. This article will focus on introducing the basic parameters of DVN15.

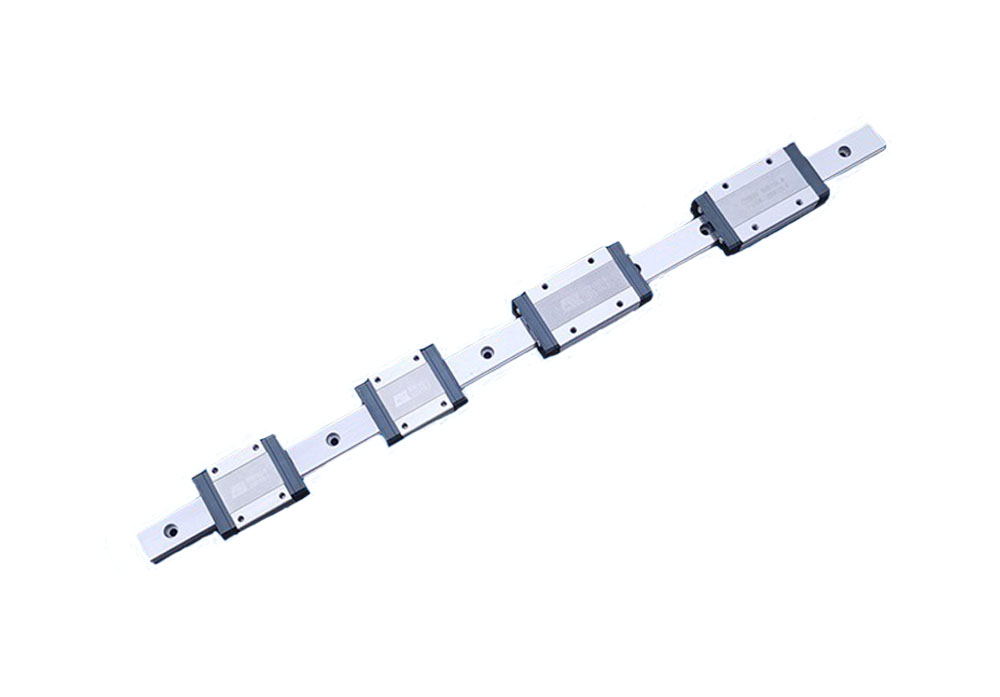

The Davoxin DVN15 micro linear guide rail has a width of 15mm and is equipped with an oil nozzle instead of an oil injection hole. The DVN15 mini linear guide has four sliders, two of which are longer and two of which are shorter. The longer slider is called the elongated slider, and the shorter slider is called the standard slider, respectively referred to as DVN15C and DVN15H. These are also the two common specifications of the DVN15 mini linear guide.
Combination size values: H, H1, N values are 16,4, 8.5 respectively;
Slide size values: WR, HR, D, h, d, P;
The E values are 3, 15, 10, 6, 4.5, 3.5, 40, and 15, respectively;
The fixing bolt is M3 * 10 and weighs 1.06Kg/m.
Note: The range of DVN15 micro linear guide and DVN linear guide are different and cannot be confused. Because DVN linear guides not only include DVN15 miniature linear guides, but also wide linear guides, high assembly linear guides, and low assembly linear guides.
