Davoxin DVN7 linear guide rail
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
DVN7
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :

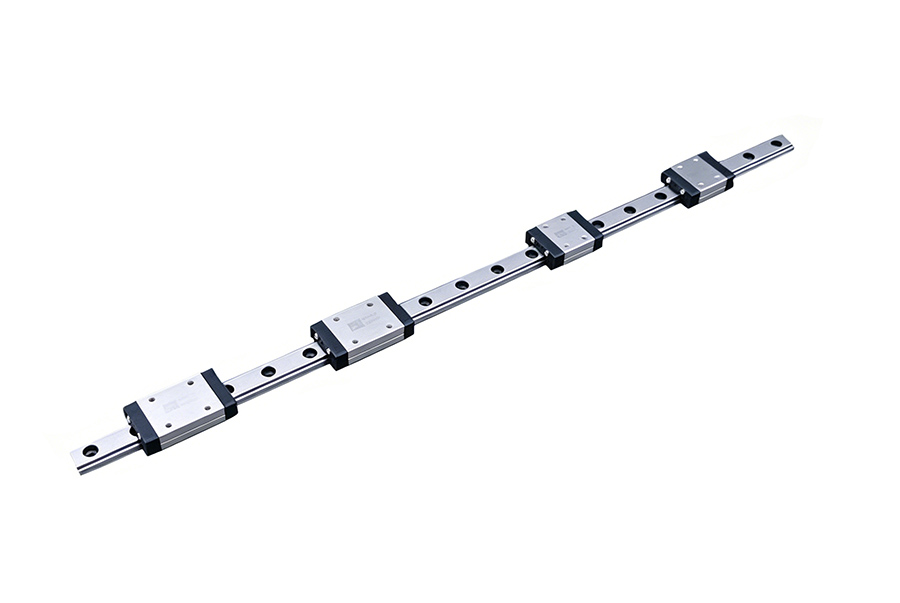

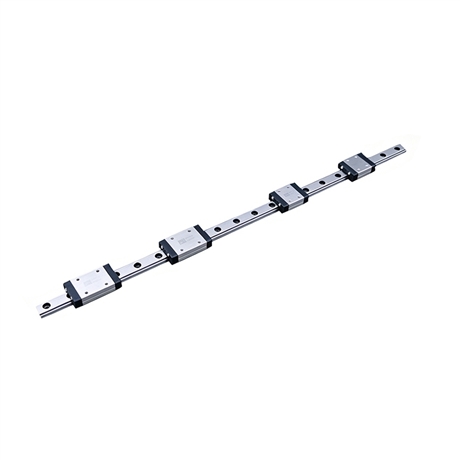

The Davoxin DVN7 linear guide is equipped with four sliders, which are printed with the Davoxin logo and production number. There are two sizes of sliders, the short one is the standard slider, and the long one is the extended slider; The common DVN7 linear guide also has a standard square slider type. The load and torque force corresponding to different sliders are different, and their accuracy levels are divided into three levels: ordinary, high, and precision.
The width of the slide rail is 7mm, which is why it is named DVN7. As a standard linear guide, it has standard pitch, standard end pitch, and standard length, with a standard pitch of 15mm, standard end pitch of 5mm, and standard length of 1000mm.
Structure and System Configuration
Core structure: The rolling loop system consists of a slider, slide rail, end cover, steel ball, and retainer that work together to ensure the stability and smoothness of motion transmission.
Auxiliary system: The lubrication system is designed with oil nozzles or reserved oil injection holes to facilitate regular lubricant injection; The dust prevention system is equipped with oil scraper blades, and additional bolt covers are provided for sizes 12 and 15 to effectively prevent impurities from entering and extend the product's service life.
