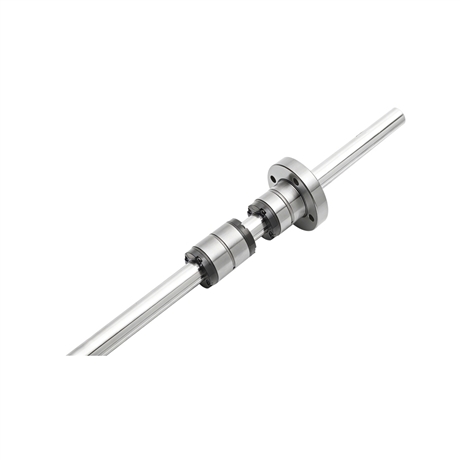

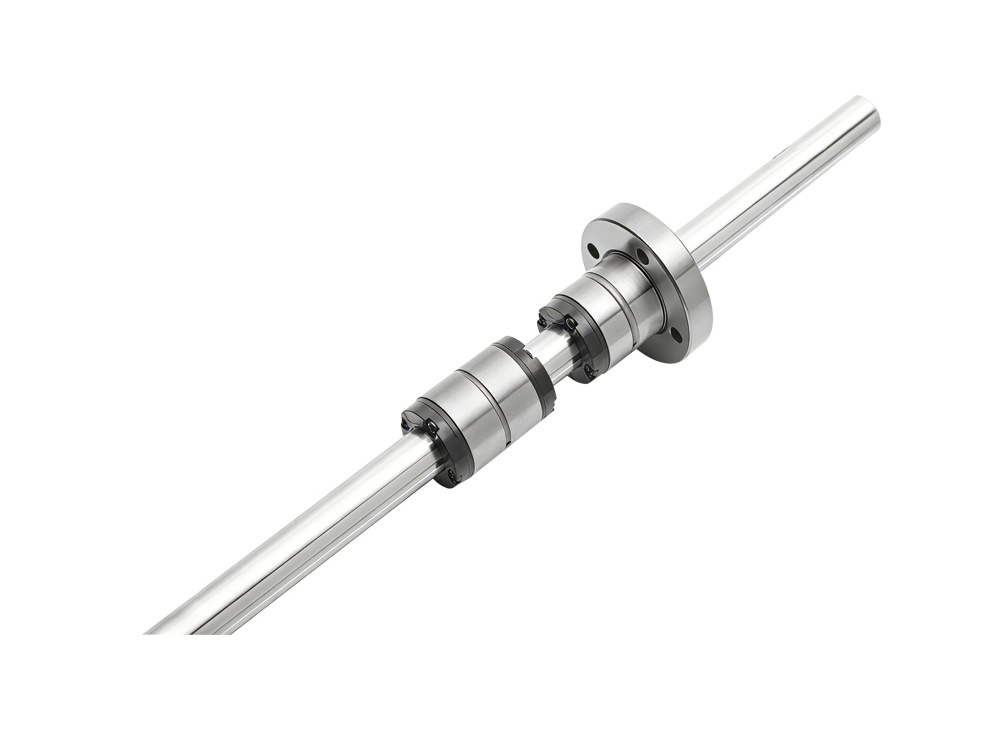

Dawoxin Ball Spline
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
Ball spline
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
Core features of Dawoxin ball spline products:
Large load capacity: adopting Gothic 40 ° angular contact design, precision grinding of ball grooves, strong radial and torque direction load bearing capacity.
Accuracy and rigidity: The rotation direction can be adjusted to zero clearance through preloading, with a large contact angle and the ability to apply preloading, combining high rigidity and moment rigidity.
Operation and maintenance: The steel ball will not fall off due to external detachment from the shaft, making assembly, maintenance, and inspection convenient; High motion sensitivity can reduce energy waste.
Product Classification and Structure
Structural composition: mainly including spline shaft, spline outer sleeve, load ball path, non load ball path, cycler, dust seal and other components.
Product type: Divided into cylindrical type (DLT) and circular flange type (DLF) according to their external form; Spline shafts come in precision solid, hollow, special, and other types.
Model and Selection
Model Description: Includes information such as series, nominal shaft diameter, number of ball columns, accuracy level, preloading level, spline shaft length, surface treatment, etc.
Selection process: It is necessary to determine the usage environment, speed, accuracy, size and other conditions, select the product type, conduct strength design and life prediction, select preloading and accuracy, and complete the selection based on the environment.
