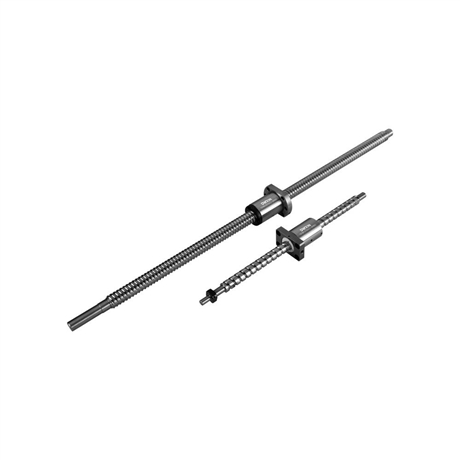

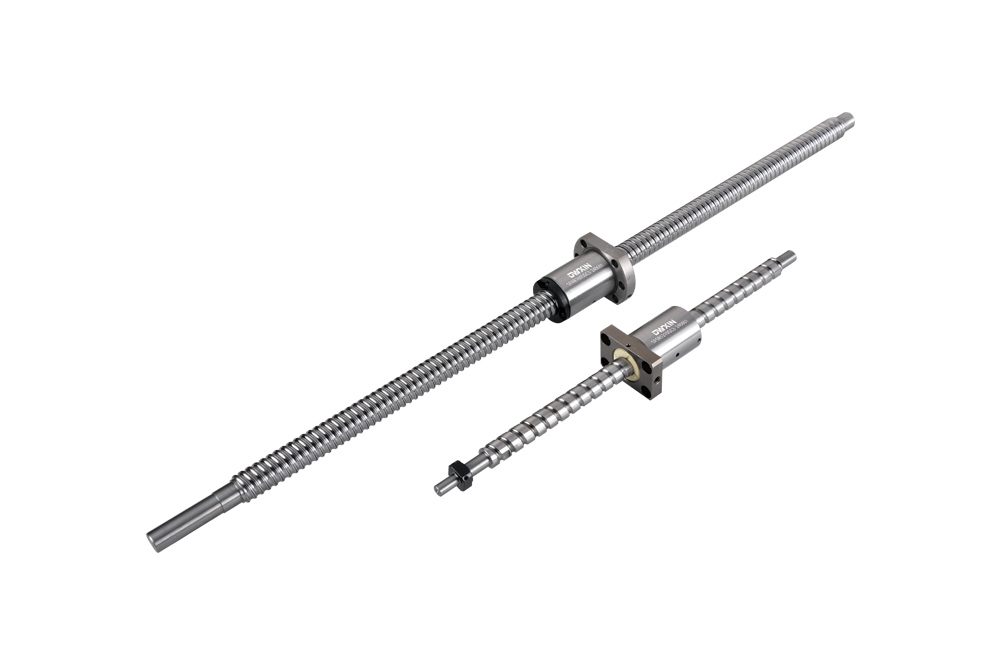

Dawoxin ball screw

Description :

Core features of Dawoxin ball screw products

High reliability: rigorous quality assurance management throughout the entire process, from materials and heat treatment to manufacturing and inspection.

Action and efficiency: High efficiency, requiring less than 30% of the torque of traditional screw rods, and can still move smoothly under preloading.

Rigidity and accuracy: Adopting Gothic groove design, adjustable axial clearance, and improved rigidity through preloading without backlash.

Durability: High quality materials are selected, and after high heat treatment and processing technology, the service life is long.

Loop mode: divided into two types: outer loop and inner loop.

Materials and Structures

Materials: The screw adopts SCM450, the nut is SCM420, the steel ball is SUJ2, and the hardness is HRC58 ° or above.

Core structure: mainly composed of screws, nuts, steel balls, and circulation components, matched with lubrication system (oil nozzle, oil pipe joint) and dust-proof structure.

Product Model and Classification

Model composition: includes information such as nut type, screw type, thread direction, shaft outer diameter, lead, process code, number of beads, flange type, precision level, preloading level, surface treatment, etc.

Product series: covering conversion grade (such as SCR, SFU, SFH, SFA, etc.) and precision grinding grade (such as DFS), subdivided into multiple models according to cycle mode, installation form, etc.

Selection and adaptation

Selection steps: It is necessary to consider factors such as load, speed, acceleration, movement length, positioning accuracy, service life, environmental conditions, lubrication requirements, etc.

Adaptation scenario: Suitable for various types of machinery that need to convert rotary motion into linear motion, adapting to working conditions with different precision, load, and space requirements.
