Dawoxin DWA series full height assembled linear guide rail
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
DWA
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :

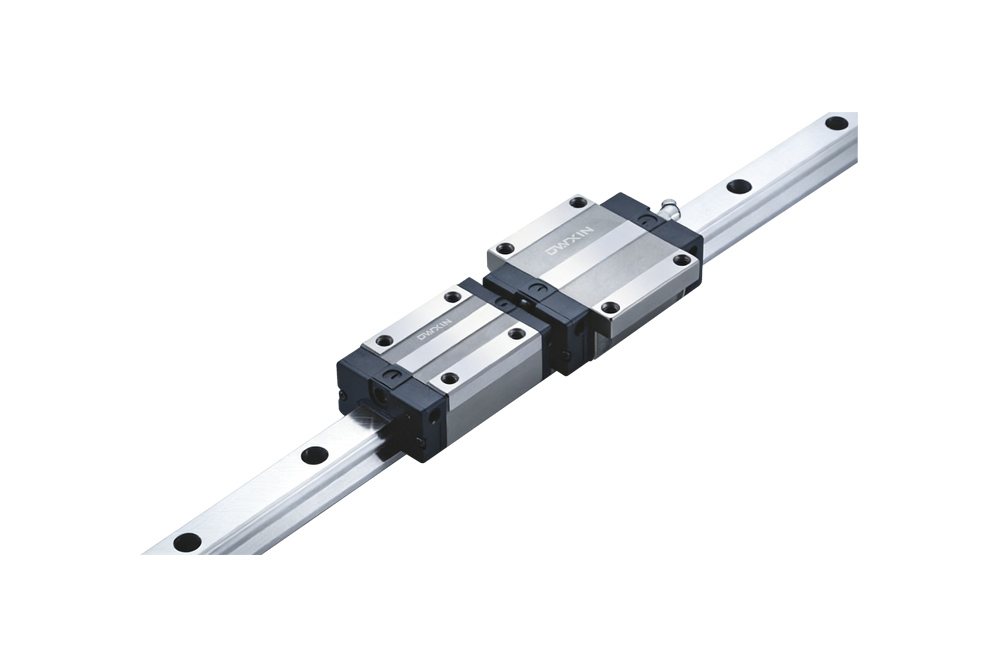

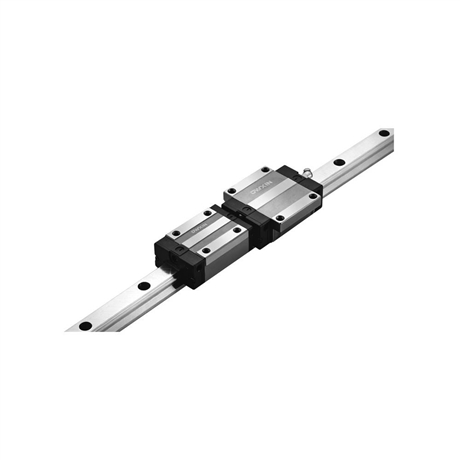

Dawoxin DWA series full height assembled linear guide rail
Core features of the product
The all steel ball high assembly type adopts a four column single arc tooth contact design, with four directional load characteristics and automatic centering function, which can absorb installation surface assembly errors.
High load, high rigidity, high precision, some series are interchangeable, the slider comes with a retainer to prevent steel balls from falling off, and the slide rail and slider can be ordered and stored separately.
Structure and System Configuration
Core structure: The rolling cycle system consists of a slider, slide rail, end cover, steel ball, and steel ball retainer.
Auxiliary system: lubrication system including oil nozzle and oil pipe joint; The dust prevention system is equipped with oil scraper, bottom dust sealing dust scraper, guide rail bolt cover, metal scraper, and can choose different combinations of dust prevention accessories.
Installation and Application
Installation points: It is necessary to control the shoulder height and chamfer of the installation surface; The distance E between non-standard length guide rail end faces should not be too large; Lock according to the specified screw specifications and torque values; The guide rail can be locked (R) or locked down (T) for fixation.
Adaptation scenarios: Suitable for machining centers, NC lathes, grinders, precision XY platforms, EDM machines, etc., suitable for weight cutting and high rigidity requirements.
Product Model
Contains information such as series, specifications, load type, number of sliders, dust-proof accessories, preloading level, fixing method, slide rail length, hole spacing, accuracy level, and number of single axis slides.
