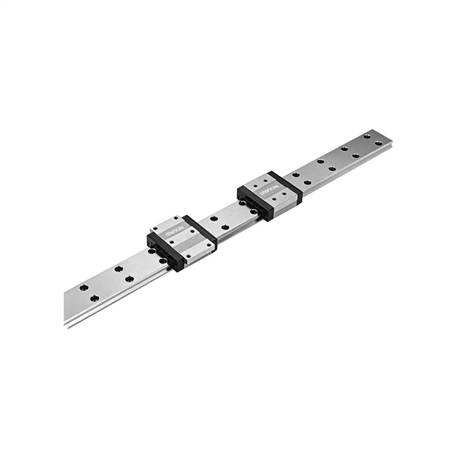

Dawoxin DWR four column wide linear guide rail
Category:
mechanical equipment/Machine tool accessories/Guide rail
Model:
DWR
Brand:
Dawoxin
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :

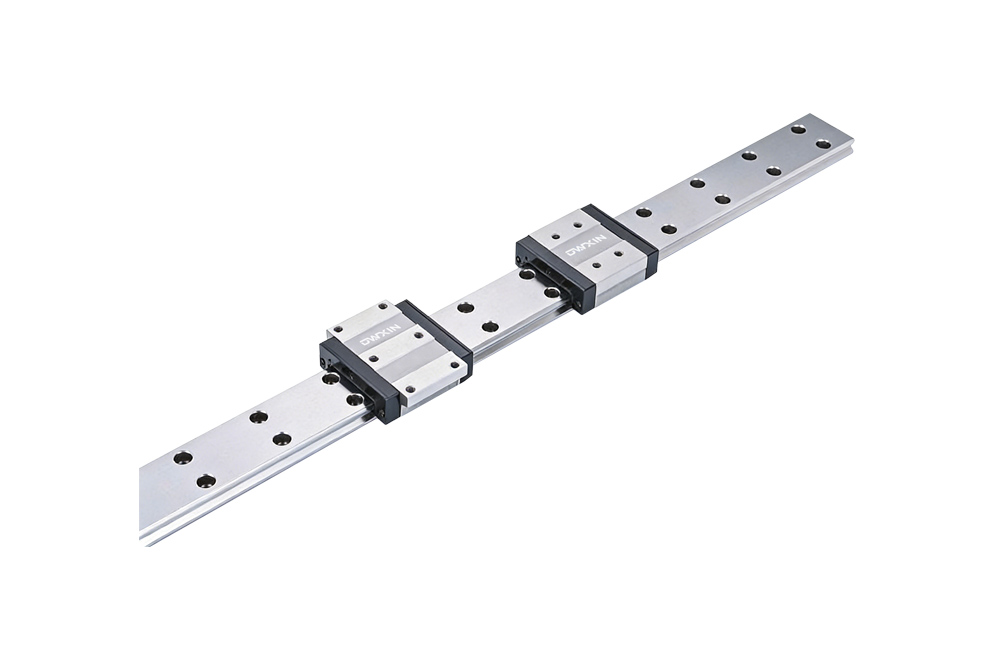

Dawoxin DWR four column steel ball wide linear guide rail
Core features of the product
Four column steel ball wide width design, contact angle of 45 degrees, with four directional load characteristics and automatic centering function, can absorb installation surface assembly errors.
The width of the track increases and the combination height decreases, achieving ultra-high torsional impedance. It can be used uniaxial when space is limited or when subjected to high torque.
Structure and System Configuration
Core structure: The rolling cycle system consists of a slider, slide rail, end cover, steel ball, and steel ball retainer.
Auxiliary system: lubrication system including oil nozzle and oil pipe joint; The dust prevention system is equipped with oil scraper, bottom dust sealing dust scraper, guide rail bolt cover, and metal scraper (double oil scraper).
Product Model and Application
Model Description: Includes information such as series, specifications, slider model, slider quantity, preloading level, slider length, hole spacing, accuracy level, and number of single axis sliders.
Adaptation scenario: Suitable for working conditions that require precision, rigidity, and may involve vibration and impact, and for equipment that needs to withstand torque.
