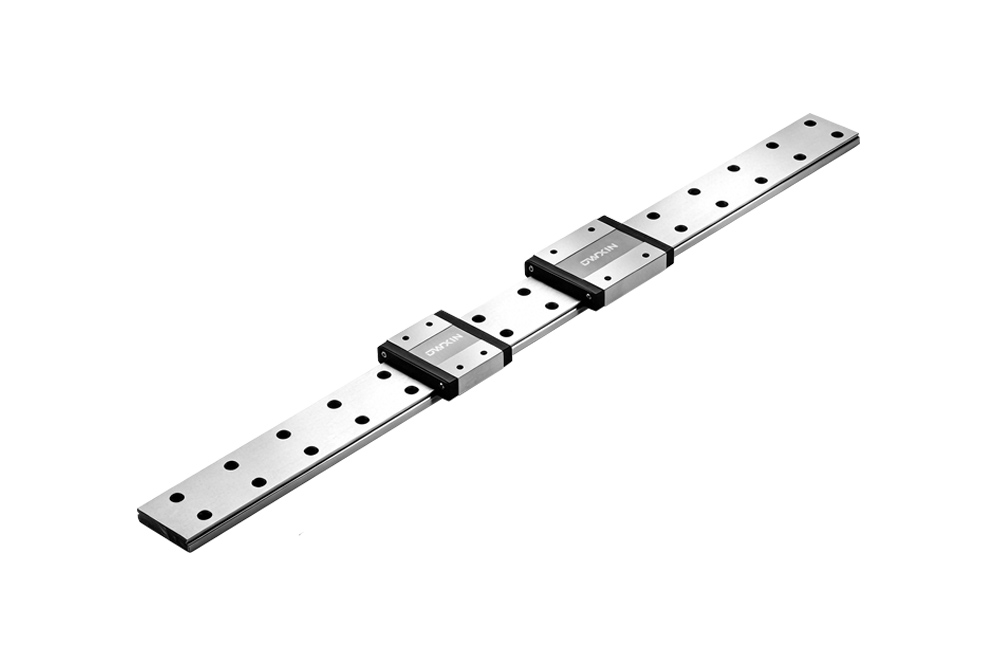

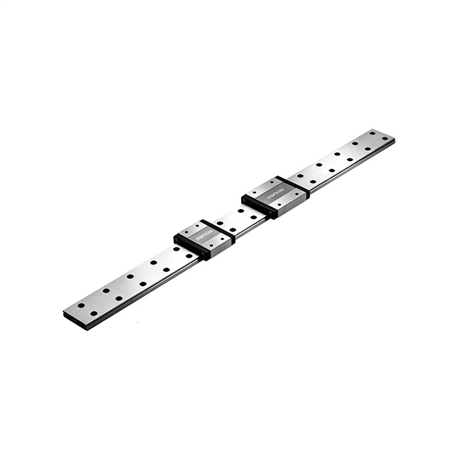

Dawoxin DVW wide width guide rail

Description :

Characteristics of Dawoxin DVW wide width guide rail

1. The design of widening the guide rail greatly improves the torque load capacity and can be used on a single axis.

2. The Gothic four point contact design can withstand loads from various directions and has the characteristic of high rigidity.

3. The slider is equipped with a miniature retaining wire, and the steel ball of the slider will not fall off even when removed.

4. The slider and all metal accessories are made of stainless steel material, which has anti-corrosion properties.

Ontological structure

Rolling cycle system:

Sliding block, slide rail, end cap, steel ball, retainer. Lubrication system: The DVW15 end cap is equipped with an oil nozzle for customers to inject oil, while the DVW7, 9, and 12 have reserved oil injection holes on the end cap side, which can be lubricated by injecting oil or grease into the slider using a syringe. Dust prevention system: oil scraper, bolt cover (12,15 specifications).

Application and Installation

Application scope: Small linear sliding devices such as semiconductor equipment, medical equipment, robotic arms, precision measuring instruments, OA equipment, etc.

Installation points: Control the shoulder height and chamfer, and tighten the assembly screws according to the specified torque value; Attention should be paid to the size range of the end face distance E for non-standard length slide rails.
