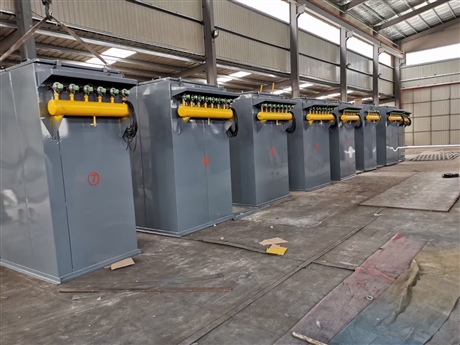

Single machine dust collector, small bag dust collector

Description :

Pulse dust collector is a new type of pulse dust collector improved on the basis of bag filter. It combines the advantages of various pulse jet dust collectors with chamber back blowing, overcomes the disadvantages of insufficient cleaning intensity and uneven distribution of inlet and outlet air, and expands the application range.

　　Basic maintenance methods

　　(1) During equipment operation, a dedicated person should be assigned to manage and keep operation records.

　　(2) Management personnel should be familiar with the principle, performance, and usage conditions of dust collectors, and master the adjustment of operating parameters and equipment maintenance methods.

　　(3) Regularly replenish lubricating oil to the parts of the equipment that require lubrication.

　　(4) Regularly check whether the pulse cleaning system of the dust collector is blowing normally. If it is not normal, focus on checking whether the pulse valve diaphragm and solenoid valve are malfunctioning or damaged, and repair or replace them in a timely manner.

　　(5) If the pulse valve malfunctions, it should be promptly eliminated. If there are impurities, moisture or other foreign objects inside, they should be cleaned in a timely manner. If the diaphragm is damaged, it should be replaced in a timely manner.

　　(6) Regularly check the condition of the cylinder and each flange surface. If any air leakage is found, the sealing ring should be replaced in a timely manner.

　　(7) If the sealing strip on the maintenance door is aging, it should be replaced in a timely manner.

　　(8) Regularly measure process parameters such as gas volume, temperature, concentration, etc. If any abnormalities are found, the cause should be identified and dealt with in a timely manner.

　　(9) Regularly check whether the equipment is operating normally based on the fluctuation of resistance during operation.

　　(10) The filter bag is a vulnerable part, and users should regularly check the working condition of the filter bag and consider timely replacement according to the degree of damage to the filter bag.

　　(11) Regularly check the operation of the pneumatic system and ash discharge system, and promptly eliminate any abnormalities found.

　　(12) Regularly discharge accumulated water from the water separator in the compressed air system.

　　(13) During shutdown, after the process system stops, the dust collector and exhaust fan should continue to operate for a period of time to remove moisture and dust from the equipment. Before the dust collector stops working, it is necessary to repeatedly perform dust cleaning and unloading operations.
