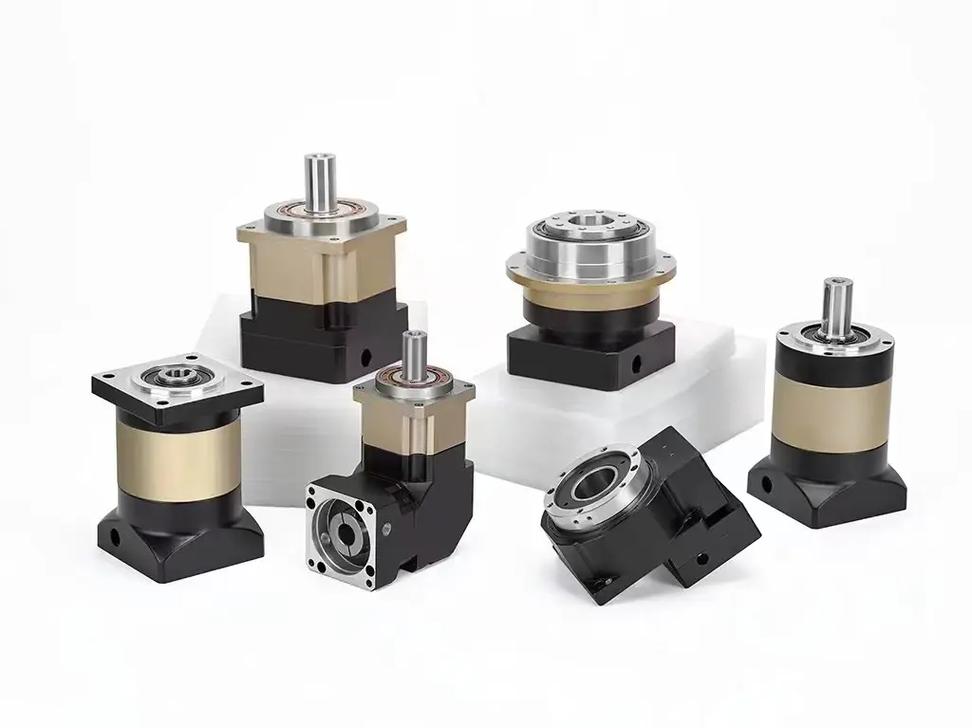

Alpa planetary gearbox paired with servo stepper motor for high-precision and low backlash transmission

Description :

  Alpa planetary gearbox is a high-precision power transmission device that mainly solves the problems of high output speed and insufficient torque of servo or stepper motors, while achieving precise positioning of motion control. This series of products uses a planetary gear structure for deceleration and torque increase, suitable for automation equipment operating conditions that require high rigidity and low backlash transmission. Typical applications include robotic arm joints, CNC machine tool feed axes, packaging machinery, and printing equipment. Alpa planetary gearbox can be matched with various specifications of servo or stepper motors to ensure smooth and efficient power transmission, meeting the strict requirements of precision transmission in the field of industrial automation.

  Alpa planetary reducer uses high-quality alloy steel to manufacture gears, which are treated with carburizing, quenching, and grinding processes, resulting in high hardness and strong wear resistance. The shell is usually made of aluminum alloy or cast iron material, which has good heat dissipation performance and structural strength. Common specifications include seat numbers such as 60, 90, 115, 142, 180, and 220, corresponding to different installation dimensions and output torque levels. The backlash is usually controlled within 3-5 arc minutes, and some high-precision models can reach less than 1 arc minute. The input design is compatible with standard servo or stepper motor flanges, making installation convenient. The execution standards comply with industry standards, ensuring product interchangeability and reliability, and adapting to long-term continuous operation under working environment temperature and load conditions.

  When selecting an Alpa planetary gearbox, it is necessary to match it according to the load torque, speed ratio, installation space, and motor model. The 60-90 machine base is suitable for light load small equipment, the 115-142 machine base is suitable for medium load general automation production lines, and the 180-220 machine base is used for heavy load large machinery. Attention should be paid to distinguishing between single-stage and multi-stage reduction ratios. Single stage efficiency is high but the reduction ratio is small, while multi-stage reduction ratio is large but slightly longer in volume. If there is an impact load in the working condition, it is recommended to choose a model with a higher safety factor. Compared with ordinary gear reducers, Alpa planetary reducers have the advantages of small size, light weight, high load-bearing capacity, and small backlash, making them suitable for scenarios with high requirements for dynamic response and positioning accuracy.

  Before installing the Alpa planetary gearbox, it is necessary to clean the motor shaft and gearbox input hole to ensure that there are no oil stains or impurities. It is recommended to apply special lubricating grease to the contact surface. When connecting, it is necessary to align with the center to avoid damage to the bearing caused by forced tapping. In daily maintenance, it is necessary to regularly check whether the fasteners are loose and monitor whether there is any abnormal noise during operation. Lubricating oil is usually replaced after the first 500 hours of use, and then every 2000-3000 hours, depending on the operating conditions. Common faults such as high temperature rise may be caused by poor lubrication or excessive load, and oil leakage may require checking the condition of the seals. Proper maintenance can extend the service life of the Alpa planetary gearbox and maintain stable transmission accuracy.
