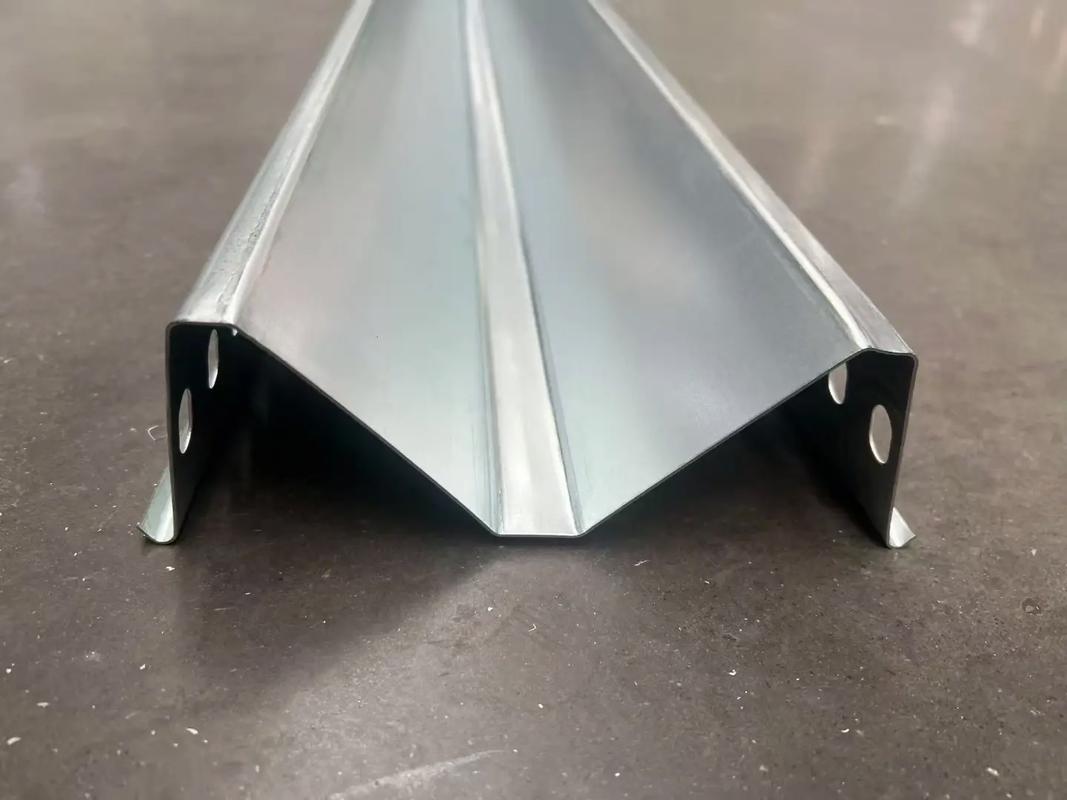

M-type drainage ditch cover plate hot-dip galvanized steel linear drainage ditch for municipal landscaping finished resin concrete ditch

Description :

  M-type drainage ditch is a linear drainage system designed specifically for efficient surface runoff collection, mainly solving the problem of water accumulation in squares, roads, and industrial parks. Its core structure adopts an "M" - or U-shaped cross-sectional design, combined with high-strength cover plates, which can quickly collect rainwater and guide it into the underground pipeline network. This category usually consists of ditch bodies, cover plates, and end fittings, suitable for working conditions that require high drainage speed and certain ground loads, such as municipal sidewalks, landscape gardens, parking lots, and light lane areas, ensuring dry ground and safe passage.

  The body of M-type drainage ditch is usually made of resin concrete, HDPE polymer material or stainless steel, and its surface is treated by hot galvanizing or plastic spraying, which has excellent corrosion resistance and aging resistance. The implementation standards usually refer to GB/T 23438-2009 "Polymer based Composite Material Water Grate" or EN1433 EU Drainage Channel Standard. The standard width specifications range from 100mm to 300mm, with depths between 100mm and 500mm, and a pressure rating of up to A15 to C250. The connection method often adopts socket or flange connection to ensure sealing and prevent sewage leakage from polluting the soil. The overall structure is stable and adaptable to outdoor environments with large temperature differences.

  When selecting, it is important to consider the on-site load level and drainage requirements. Pedestrian areas can choose A15-B125 lightweight M-type drainage ditches, while vehicular areas require C250 or above heavy-duty products. If used in highly corrosive places such as chemical plants, it is recommended to use resin concrete or 304/316L stainless steel materials to avoid rusting of ordinary carbon steel. Compared with traditional brick built drainage ditches, M-type finished drainage ditches have faster installation speed, smooth inner walls that are less prone to fouling, and higher utilization of water discharge sections. Attention should be paid to the slope design of the ditch, generally maintaining a longitudinal slope of 0.5% -1% to facilitate self drainage and avoid reverse slope causing water accumulation.

  Before installing the M-type drainage ditch, the foundation needs to be compacted and a concrete cushion layer should be laid to ensure even stress distribution on the ditch body. Daily maintenance mainly focuses on cleaning leaves, mud, and other debris in the gaps of the cover plate to prevent blockage and affect drainage efficiency. It is recommended to conduct a comprehensive flushing every quarter to check whether the cover plate is damaged or loose, especially before and after the rainstorm season. If leakage is found at the joint of the ditch, special sealant should be used for repair in a timely manner. When used for a long time, overweight vehicles should be avoided from illegally crushing non load bearing ditch covers to extend the service life of M-type drainage ditches and keep the drainage system unobstructed.
