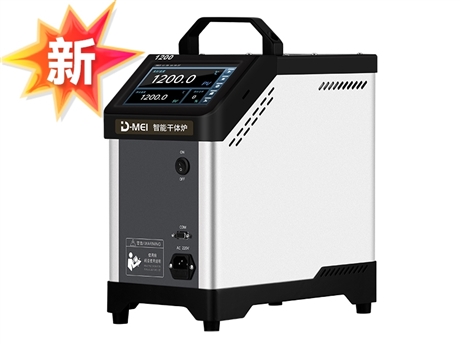

Low temperature intelligent dry body temperature calibration furnace
Category:
Instrumentation/Standard measuring instruments/Thermal metrology standards
Model:
DY-GTL150XB
Brand:
Tai'an Demei Electromechanical
Product Name:
Low temperature intelligent dry body temperature calibration furnace
model:
DY-GTL150XB
temperature range:
-40℃-100℃/-35℃-150℃
display resolution:
0.01℃
accuracy:
±0.2℃ ±0.5℃
stability:
±0.1℃
Radial uniformity:
±0.2℃
Control method:
Touch screen
Verify hole depth:
150mm
Default display:
Chinese display full-color LCD ℃ or ℉
Diameter of uniform heating block:
30mm
Verify hole diameter:
Standard configuration: 4mm, 6mm, 6mm, 8mm, 10mm (customizable)
Dimensions (length x width x height):
350mm*200,mm*360mm
Weight:
9.0Kg
power supply:
220V AC 50/60HZ
power:
500W
Language:
According to customer requirements, language proficiency can be obtained from anywhere
working conditions:
22±3℃ 15%RH-65%RH
Standard accessories:
Power cord * 1 instruction manual * 1 certificate of conformity * 1
Retail Price
9.90USD
重量
kg
- Product Description
-
Product Name Low temperature intelligent dry body temperature calibration furnace
model DY-GTL150XB
temperature range -40℃-100℃/-35℃-150℃
display resolution 0.01℃
accuracy ±0.2℃ ±0.5℃
stability ±0.1℃
Radial uniformity ±0.2℃
Control method Touch screen
Verify hole depth 150mm
Default display Chinese display full-color LCD ℃ or ℉
Diameter of uniform heating block 30mm
Verify hole diameter Standard configuration: 4mm, 6mm, 6mm, 8mm, 10mm (customizable)
Dimensions (length x width x height) 350mm*200,mm*360mm
Weight 9.0Kg
power supply 220V AC 50/60HZ
power 500W
Language According to customer requirements, language proficiency can be obtained from anywhere
working conditions 22±3℃ 15%RH-65%RH
Standard accessories Power cord * 1 instruction manual * 1 certificate of conformity * 1
Description :
[Product Introduction]
Dry furnace, also known as dry well, dry well furnace, dry measuring furnace, temperature measuring furnace, temperature calibrator, dry type temperature calibration furnace. Dry body furnace is a convenient and fast heating and cooling method, which is a traditional on-site heat source (temperature field). The dry body furnace adopts a high stability temperature controller, and the uniform heating block is made of alloy material with good thermal conductivity. Technologically synchronized with advanced technologies both domestically and internationally, it is at an advanced level in terms of insertion depth, horizontal temperature field, vertical temperature field, and other technical aspects. Widely used in pharmaceuticals within the required temperature range（GMPWet heat sterilizationDry heat sterilization）Industries that require on-site temperature calibration, such as machinery, ships, chemicals, biological products, power plant substations, steel plants, metrology and testing, scientific research, etc.
The DY-GTL-XB intelligent dry body furnace adopts a high stability temperature controller, with a testing temperature range of -40 ℃ -1200 ℃. The homogenization block is made of alloy material with good thermal conductivity. Technologically synchronized with advanced technologies both domestically and internationally, it is at an advanced level in terms of insertion depth, horizontal temperature field, vertical temperature field, and other technical aspects. Used within the required temperature range, widely used in industries such as machinery, ships, chemicals, food, electricity, pharmaceuticals, etc.
[Product Features]
A dry furnace can provide a stable, uniform, and accurate temperature environment (temperature field), similar tothermostatic bathThe performance of the liquid bath, but the dry furnace is easy to carry and does not require the placement of liquids. The time for the dry body furnace to reach the predetermined temperature point and stabilize is 5 to 10 times faster than that of the constant temperature bath, which can greatly save the time of calibration personnel and increase the temperatureverificationSpeed. The portability of the dry furnace enables on-site calibration work, thereby solving the difficulty of transporting and moving the constant temperature bath. Calibration can be conveniently carried out through a dry furnacetemperature sensorThemercury thermometerTheExpansion thermometerThethermocoupleTheThermal ResistorWaiting for temperature sensors.
Characteristics of dry furnace
1. More portable and lightweight. Higher accuracy, resolution of 0.1/0.01 ℃.
2. Human computer interface, Chinese display, touch operation, beautiful and elegant.
3. One click temperature setting, simple operation, fully automatic adjustment of heating power. Quickly heat up and control the temperature.
4. Adjustable accuracy, one click adjustment based on the accuracy of sensors according to different customer standards, convenient and fast.
5. According to customer requirements, language interfaces can be accessed from anywhere for easy export.
