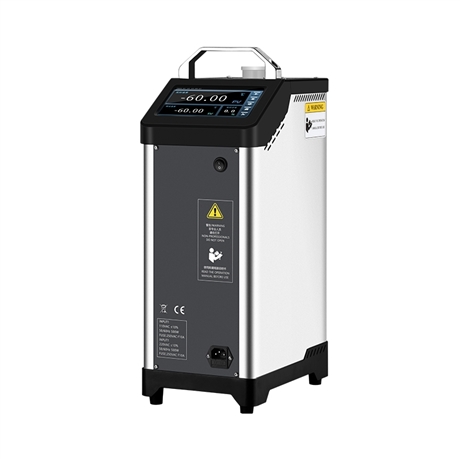

Ultra low temperature dry body temperature calibration furnace
Category:
Instrumentation/Standard measuring instruments/Thermal metrology standards
Model:
DY-GTL-D
Brand:
Tai'an Demei Electromechanical
model:
DY-GTL-D
temperature range:
-120℃/-100℃/-80℃/-60℃~50℃
display resolution:
0.1 ℃/0.01 ℃ (customizable)
accuracy:
±0.3℃
Control method:
Touch screen
Depth of uniform temperature block hole:
145mm
Warm block (white):
30mm
Default display:
Chinese display full-color LCD ℃ or ℉
Diameter of temperature equalization block:
30mm
Verify hole diameter:
Standard configuration: 4mm, 6mm, 6mm, 8mm, 10mm (customizable)
Dimensions (length x width x height):
320mm*195mm*530mm
Heating and cooling time:
It takes 45 minutes for the room temperature to drop to -100 ℃
Weight:
15.23kg
power supply:
220V AC 50HZ 10A
power:
800W
Language:
According to customer requirements, language proficiency can be obtained in any location
working conditions:
15℃~22℃ 15%RH~80%RH
Standard accessories:
Power cord x 1 instruction manual x 1 qualification certificate x 1
Retail Price
9.90USD
重量
kg
- Product Description
-
model DY-GTL-D
temperature range -120℃/-100℃/-80℃/-60℃~50℃
display resolution 0.1 ℃/0.01 ℃ (customizable)
accuracy ±0.3℃
Control method Touch screen
Depth of uniform temperature block hole 145mm
Warm block (white) 30mm
Default display Chinese display full-color LCD ℃ or ℉
Diameter of temperature equalization block 30mm
Verify hole diameter Standard configuration: 4mm, 6mm, 6mm, 8mm, 10mm (customizable)
Dimensions (length x width x height) 320mm*195mm*530mm
Heating and cooling time It takes 45 minutes for the room temperature to drop to -100 ℃
Weight 15.23kg
power supply 220V AC 50HZ 10A
power 800W
Language According to customer requirements, language proficiency can be obtained in any location
working conditions 15℃~22℃ 15%RH~80%RH
Standard accessories Power cord x 1 instruction manual x 1 qualification certificate x 1
Description :
[Product Introduction]
1. The ultra-low temperature range (-120 ℃/-100 ℃/-80 ℃/-60 ℃) is widely used in astronomical observations, medical pharmaceuticals, aerospace, scientific research and development, and other fields.
2. Small size and high precision.
3. Human computer interface, Chinese display, touch operation, beautiful and elegant.
4. One click temperature setting, simple operation, fully automatic adjustment of heating power. Quickly heat up and control the temperature.
5. It only takes 45 minutes for the room temperature to drop to -100 ℃.
AfterSalesService :
泰安德美机电设备有限公司严格遵循“技术领先、品质优良、安全可靠、负责到底”的质量方针，“质量就是人品”，坚持以过硬的质量为生命，以完善的服务为根本，以严格的管理为手段，以先进的技术为后盾，保证向用户提供先进性、可靠性和经济的产品。特向广大用户做出如下质量保证： 1、本产品完全满足需方所提出的技术、参数指标要求，其配置的设备都经过出厂检验，有合格证书，本装置符合国家最新检定规程JJF 1257-2010干体式温度校准器校准方法要求，并负责将设备运送至安装地。 2、对售出的产品提供详细的供货清单，包括主要部件的性能参数、产地、制造单位同时提供全套技术资料、安装使用手册、备件手册及维护保养说明书等资料。 我公司还会提供详细的质量保证措施、相关技术文档及用户手册等。 3、对售出设备保证做到完好、合格。如发现质量问题，需方可立即退货，供方负责更换。 4、如产品发生故障，在接到用户来电或书面通知后4小时内作出答复，48小时内派出服务人员赶到现场，查明原因，排除故障。 5、对用户人员进行多种形式的免费技术培训和技术指导。 6、产品质保期为1年，设备交付使用后，我公司将终生免费提供软件升级及技术咨询服务。对超过保修期的产品按损坏配件的成本价格提供更换维护服务。Key words:
