Ultra low temperature blackbody radiation source
Category:
Instrumentation/Standard measuring instruments/Thermal metrology standards
Model:
DY-HT1D-100C
Brand:
Tai'an Demei Electromechanical
Model Name:
DY-HT1D-100C
Operating temperature:
-100℃~40℃
Operation method:
touch screen operation
Temperature Resolution:
0.01℃/0.1℃
Mouth diameter:
40mm (customizable)
Cavity emissivity:
≥0.995
Temperature stability:
± (0.1-0.2) @ 30 ℃, t is the temperature of the radiation source (within 10 minutes)
temperature uniformity:
± (0.1-0.3) @ 30 ℃, t is the temperature of the radiation source
power supply:
220V AC 50/60HZ
power:
800W
Volume (length * width * height):
（280*370*365）mm
Weight:
18Kg
warm-up time:
Room temperature drops to -100 ℃: 40 minutes
Remarks:
Low temperature blackbody furnace, when the set temperature is lower than the ambient temperature, in order to effectively avoid frosting on the radiation surface of the blackbody furnace, the blackbody furnace comes with a nitrogen ventilation pipeline, and users need to bring their own nitrogen, nitrogen pressure reducing valve and other related supporting equipment.
Programmable Function:
Program control function, the device is equipped with 10 sets of different program settings interfaces, one click operation, convenient and fast, to meet users' various detection point requirements, and improve users' detection efficiency.
Multi point deviation correction function:
Touch screen operation, supports multi-point calibration, uses temperature points closer to nominal values
232 communication (upgrade gift):
Supports 232 communication, other special requirements such as 485 communication and RJ45 can be configured according to the user's needs
Automatic intelligent adjustment:
Intelligent regulation, including MH logic intelligent regulation function and advanced control algorithm with parameter self-tuning function
Temperature fluctuation curve:
Configure temperature control curve within the system to detect real-time temperature changes
Language:
Default Chinese, language interface can be accessed anywhere according to customer requirements.
Independent intellectual property rights:
The touch screen system of the blackbody radiation source has obtained a computer software copyright registration certificate, with brick number 2020SR0565743
Certification qualification documents:
ISO9001 Quality Management System Certification
Traceability standard:
The factory inspection uses HEITRONICS radiation temperature transfer pyrometer for radiation temperature measurement. After calibration of the corresponding fixed point blackbody radiator, it provides temperature transfer between blackbody radiation sources.
Retail Price
9.90USD
重量
kg
- Product Description
-
Model Name DY-HT1D-100C
Operating temperature -100℃~40℃
Operation method touch screen operation
Temperature Resolution 0.01℃/0.1℃
Mouth diameter 40mm (customizable)
Cavity emissivity ≥0.995
Temperature stability ± (0.1-0.2) @ 30 ℃, t is the temperature of the radiation source (within 10 minutes)
temperature uniformity ± (0.1-0.3) @ 30 ℃, t is the temperature of the radiation source
power supply 220V AC 50/60HZ
power 800W
Volume (length * width * height) （280*370*365）mm
Weight 18Kg
warm-up time Room temperature drops to -100 ℃: 40 minutes
Remarks Low temperature blackbody furnace, when the set temperature is lower than the ambient temperature, in order to effectively avoid frosting on the radiation surface of the blackbody furnace, the blackbody furnace comes with a nitrogen ventilation pipeline, and users need to bring their own nitrogen, nitrogen pressure reducing valve and other related supporting equipment.
Programmable Function Program control function, the device is equipped with 10 sets of different program settings interfaces, one click operation, convenient and fast, to meet users' various detection point requirements, and improve users' detection efficiency.
Multi point deviation correction function Touch screen operation, supports multi-point calibration, uses temperature points closer to nominal values
232 communication (upgrade gift) Supports 232 communication, other special requirements such as 485 communication and RJ45 can be configured according to the user's needs
Automatic intelligent adjustment Intelligent regulation, including MH logic intelligent regulation function and advanced control algorithm with parameter self-tuning function
Temperature fluctuation curve Configure temperature control curve within the system to detect real-time temperature changes
Language Default Chinese, language interface can be accessed anywhere according to customer requirements.
Independent intellectual property rights The touch screen system of the blackbody radiation source has obtained a computer software copyright registration certificate, with brick number 2020SR0565743
Certification qualification documents ISO9001 Quality Management System Certification
Traceability standard The factory inspection uses HEITRONICS radiation temperature transfer pyrometer for radiation temperature measurement. After calibration of the corresponding fixed point blackbody radiator, it provides temperature transfer between blackbody radiation sources.
Description :
[Product Introduction]
In daily life, the temperature we are exposed to is mostly above 0 ℃. Ordinary blackbody furnaces (from room temperature to high temperature) can meet the needs, such as calibrating industrial furnace thermometers, thermometers, etc. But in many cutting-edge fields, "low temperature" or even "ultra-low temperature" is the norm, which requires reliance on low-temperature/ultra-low temperature blackbody furnaces.
For example, spacecraft will encounter low-temperature environments in space, and the equipment carried by the spacecraft must be calibrated in advance on the ground. The ultra-low temperature blackbody furnace can simulate the radiation characteristics of these low-temperature environments to ensure reliable measurement data after the equipment is launched.
[Product Advantages]

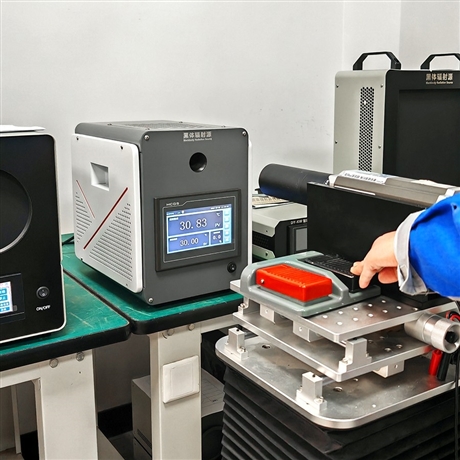

1) Easy to operate, small in size and light in weight, easy to carry, not only suitable for laboratory calibration, but also for on-site calibration work;
2) Fast cooling speed, short stabilization time, suitable for multiple data detection needs in high and low temperature areas.
3) The temperature rise and fall time is short, and it only takes 40 minutes for the room temperature to drop to -100;
4) The screen has built-in multi-point independent temperature correction function;
5) The isothermal blackbody cavity has only one cavity opening, and the radiation at the cavity opening is uniformly distributed with the spectrum. The emissivity at the cavity opening is above 0.995, and the resolution reaches 0.01;
6) Automatic intelligent adjustment: It includes advanced control algorithms with MH logic intelligent adjustment function and parameter self-tuning function;
7) Program control function, the device is equipped with 10 sets of different program settings interfaces, one click operation, convenient and fast, to meet users' various detection point requirements, and improve users' detection efficiency;
8) The communication interface can be customized and comes standard with RS232;
