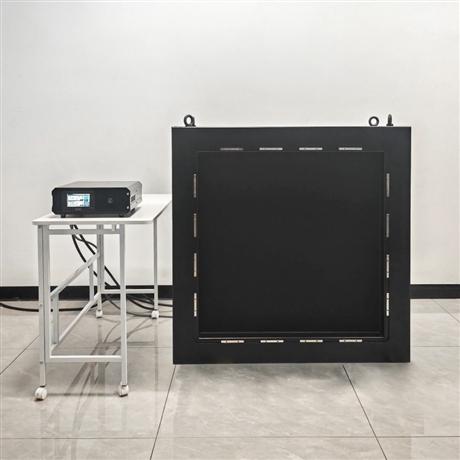

DY-HT2MF-800 Large Area Source Blackbody Furnace
Category:
Instrumentation/Standard measuring instruments/Thermal metrology standards
Model:
DY-HT2MF-800
Brand:
Tai'an Demei Electromechanical
Model Name:
DY-HT2MF-800
Operating temperature:
50℃-200℃
Operation method:
touch screen operation
Temperature Resolution:
0.1℃/0.01℃
temperature control:
PID automatic control
Radiation surface:
φ800mm×800mm
Cavity emissivity:
≥0.95
Temperature stability of indication:
±0.5℃/ min@100 ℃
temperature uniformity:
0.7℃@50℃； 1.0℃@100℃ ； 2.0℃@150℃； 3.0℃@170℃； 5.0℃@200℃
Size:
Host size: 1020mm long * 370mm wide * 1050 high; Temperature control dimensions: 335mm length * 340mm width * 133mm height
Equipment compatibility:
Blackbody host+intelligent temperature controller+Blackbody fixed base (optional); The temperature tolerance range of the blackbody host is -10 ℃ -85 ℃; Intelligent temperature controller can withstand temperature range: -10 ℃ -60 ℃; The connection line between the blackbody host and the intelligent temperature controller can be customized to 1.5 meters
Heating and cooling time:
Heating time: 50 ℃ -200 ℃: 70 minutes; Cooling time: 200 ℃ -100 ℃: 80 minutes
Communication:
232 communication serial port (including corresponding communication protocol), special can be referred to as 485/RJ45
power supply:
Host: 220V 50HZ Power: 5000W
environment:
22±3℃； 25% -80% RH; maximum height of 2000 meters
Weight:
240KG
Retail Price
9.90USD
重量
kg
- Product Description
-
Model Name DY-HT2MF-800
Operating temperature 50℃-200℃
Operation method touch screen operation
Temperature Resolution 0.1℃/0.01℃
temperature control PID automatic control
Radiation surface φ800mm×800mm
Cavity emissivity ≥0.95
Temperature stability of indication ±0.5℃/ min@100 ℃
temperature uniformity 0.7℃@50℃； 1.0℃@100℃ ； 2.0℃@150℃； 3.0℃@170℃； 5.0℃@200℃
Size Host size: 1020mm long * 370mm wide * 1050 high; Temperature control dimensions: 335mm length * 340mm width * 133mm height
Equipment compatibility Blackbody host+intelligent temperature controller+Blackbody fixed base (optional); The temperature tolerance range of the blackbody host is -10 ℃ -85 ℃; Intelligent temperature controller can withstand temperature range: -10 ℃ -60 ℃; The connection line between the blackbody host and the intelligent temperature controller can be customized to 1.5 meters
Heating and cooling time Heating time: 50 ℃ -200 ℃: 70 minutes; Cooling time: 200 ℃ -100 ℃: 80 minutes
Communication 232 communication serial port (including corresponding communication protocol), special can be referred to as 485/RJ45
power supply Host: 220V 50HZ Power: 5000W
environment 22±3℃； 25% -80% RH; maximum height of 2000 meters
Weight 240KG
Description :
[Product Overview]
The large-scale blackbody calibration scheme can be used for on-site calibration of the system in the field, directly determining the radiation response of the system, or for monitoring and correcting changes in the radiation response characteristics of the system by comparing the calibration results of the large-scale blackbody in the laboratory and in the field.
As a standard instrument for calibrating infrared imaging systems, the blackbody radiation source is the key to fully utilizing infrared imaging technology. Its own performance determines the quantification level of the infrared imaging system. A high-performance blackbody can determine the breadth and depth of application of the infrared imaging system, such as a high-precision blackbody that can calibrate a high-sensitivity infrared imaging system, thereby greatly improving the detection performance of the system.
[Product Features]1. Customized 800 large radiation surface, with a large effective radiation surface and uniform temperature field.
2. Human computer interface, Chinese display, touch operation, beautiful and elegant.
3. One click temperature setting, easy to operate. Quickly heat up and control the temperature.
4. According to customer requirements, language interfaces from anywhere in the world can be accessed for easy export.
[Product Advantages](1) Featuring a novel design, the furnace body and temperature controller are separated into a separate structure, making detection more convenient;
(2) Adopting automatic temperature control method, safe and reliable, fast heating speed, and good temperature stability;
(3) Easy to operate, not only suitable for laboratory calibration, but also for on-site calibration work.;
(4) Automatic intelligent adjustment: It includes advanced control algorithms with MH logic intelligent adjustment function and parameter self-tuning function;
(5) Temperature fluctuation curve, temperature control curve configured within the system, real-time monitoring of temperature changes;
(6) Black body fixed placement base can be configured according to one's own needs, and can be equipped by oneself;
(7) Customizable emissivity adjustable function (adjustable between 0.95~1).
