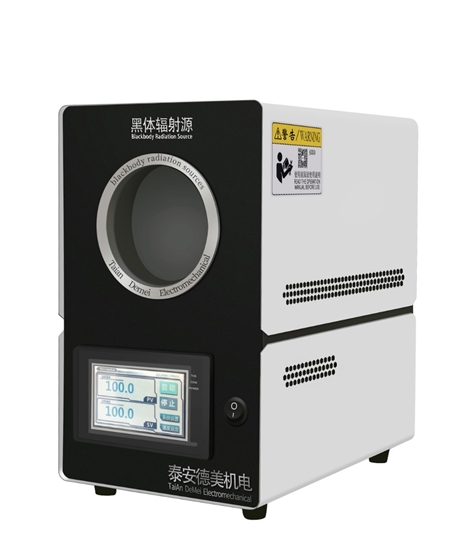

Low temperature surface source blackbody furnace
Category:
Instrumentation/Standard measuring instruments/Thermal metrology standards
Model:
DY-HT1M-150
Brand:
Tai'an Demei Electromechanical
Display accuracy:
±0.4℃@-15℃，±0.5℃@0℃，±0.4℃@50℃，±0.5℃@100℃
Operation method:
touch screen operation
Temperature Resolution:
0.01℃
temperature control:
PID automatic control
Radiation surface/target diameter:
φ150mm
Depth of cavity:
15mm
emissivity:
≥0.95
Temperature gauge emissivity compensation:
Adjustable between 0.9-1
Temperature stability:
＜0.15℃@-20℃，＜0.1℃@30℃，＜0.15℃@100℃
temperature uniformity:
0.2 ℃ @ 0 ℃, 0.2 ℃ @ 50 ℃, 0.4 ℃ @ 100 ℃ (within 2/3 of the central area)
warm-up time:
15min：-15℃~100℃; 15min：23℃~100℃
Cooling Time:
15min：100℃~23℃； 15min：23℃~-15℃
stabilization time:
10min
computer interface:
RS-232
Wire diameter:
≤ 1.5 square meters
power:
800W
Volume (length x width x height):
240mm×215mm×355mm
Weight:
13kg
environment:
22±3℃ 15%RH-65%RH; Up to 2000 meters
Remarks:
Low temperature surface source blackbody furnace. When the set temperature is lower than the ambient temperature, in order to effectively avoid the problem of frost formation on the radiation surface of the blackbody furnace, the blackbody furnace comes with an anti frost mask, and users need to bring their own nitrogen, nitrogen pressure reducing valve and other related supporting equipment
Spare parts and accessories (gifts):
Random tools (providing specialized tools for installation, maintenance, and operation), technical documentation (instructions for use, warranty cards, certificates of conformity)
Retail Price
9.90USD
重量
kg
- Product Description
-
Display accuracy ±0.4℃@-15℃，±0.5℃@0℃，±0.4℃@50℃，±0.5℃@100℃
Operation method touch screen operation
Temperature Resolution 0.01℃
temperature control PID automatic control
Radiation surface/target diameter φ150mm
Depth of cavity 15mm
emissivity ≥0.95
Temperature gauge emissivity compensation Adjustable between 0.9-1
Temperature stability ＜0.15℃@-20℃，＜0.1℃@30℃，＜0.15℃@100℃
temperature uniformity 0.2 ℃ @ 0 ℃, 0.2 ℃ @ 50 ℃, 0.4 ℃ @ 100 ℃ (within 2/3 of the central area)
warm-up time 15min：-15℃~100℃; 15min：23℃~100℃
Cooling Time 15min：100℃~23℃； 15min：23℃~-15℃
stabilization time 10min
computer interface RS-232
Wire diameter ≤ 1.5 square meters
power 800W
Volume (length x width x height) 240mm×215mm×355mm
Weight 13kg
environment 22±3℃ 15%RH-65%RH; Up to 2000 meters
Remarks Low temperature surface source blackbody furnace. When the set temperature is lower than the ambient temperature, in order to effectively avoid the problem of frost formation on the radiation surface of the blackbody furnace, the blackbody furnace comes with an anti frost mask, and users need to bring their own nitrogen, nitrogen pressure reducing valve and other related supporting equipment
Spare parts and accessories (gifts) Random tools (providing specialized tools for installation, maintenance, and operation), technical documentation (instructions for use, warranty cards, certificates of conformity)
Description :
1) The temperature controller is selected from an imported brand, and the temperature control adopts advanced PID control technology, with high temperature control accuracy and good stability;
2) Innovative design, human-machine interface, Chinese display, touch screen operation.
3) Product testing noise NETD、 Performance indicators such as response rate meet consistency requirements.
4) Adopting automatic temperature control method, safe and reliable, fast heating speed, comparable to imported product parameters
5) Easy to operate, small in size and light in weight, easy to carry, not only suitable for laboratory calibration, but also for on-site calibration work.
6) According to customer requirements, language interfaces from anywhere in the world can be copied for easy export.
7) The black body paint layer is evenly applied to avoid the reflection phenomenon caused by uneven coating, which affects the product testing situation
8) Special target surface treatment technology makes the target surface temperature more uniform, and the equipment will not experience surface damage or slag shedding even after long-term use and frequent temperature rise and fall;
9) Automatic intelligent adjustment: It includes advanced control algorithms with MH logic intelligent adjustment function and parameter self-tuning function.
10) The screen is equipped with multiple independent temperature correction functions.
11) Communication interface RS232 communication serial port. Support customized RS485, Ethernet, and wireless remote control operations.
12) Customizable handle design, customizable center height size.
13) According to customer requirements, language interfaces from anywhere in the world can be accessed for easy export.
14) This product can be used with our companyGerman American Quantitative AppRealize one click interconnection, built-in temperature unit converter, measurement regulation database, etc.
15) This product has rapid temperature rise and fall, short stability time, and is suitable for multiple data detection needs. The heating and cooling time is comparable to that of imported equipment.
AfterSalesService :
对售出设备保证做到完好、合格。如发现质量问题，需方可立即退货，供方负责更换。对用户人员进行多种形式的免费技术培训和技术指导。如产品发生故障，在接到用户来电或书面通知后4小时内作出答复，48小时内派出服务人员赶到现场，查明原因，排除故障。产品质保期为1年，设备交付使用后，我公司将终生免费提供软件升级及技术咨询服务。对超过保修期的产品按损坏配件的成本价格提供更换维护服务。Key words:
